Gamber-Johnson

Gamber Johnson Zebra ET4X 10 SLIM Cradle 7160-1807-90

Gamber Johnson Cradle 7160-1807-90

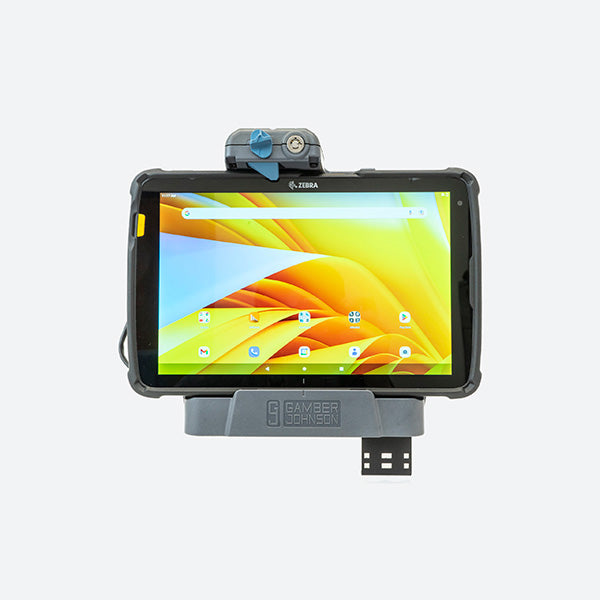

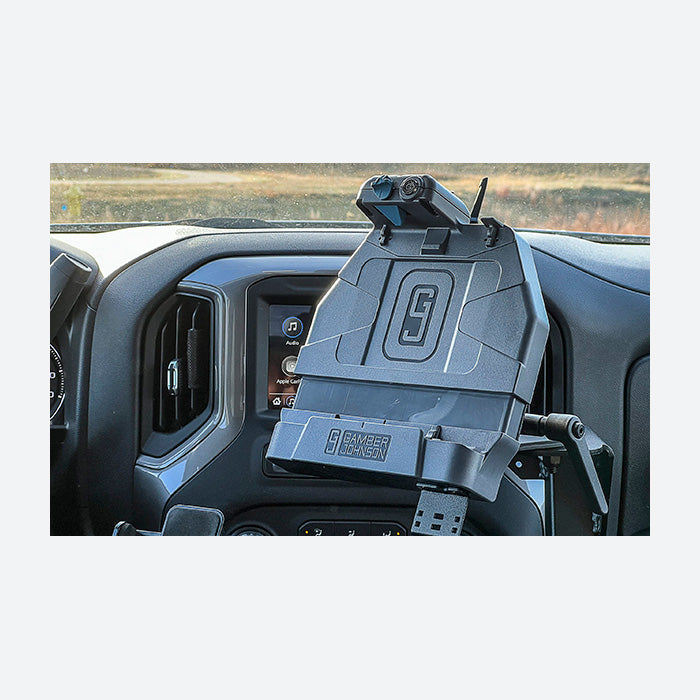

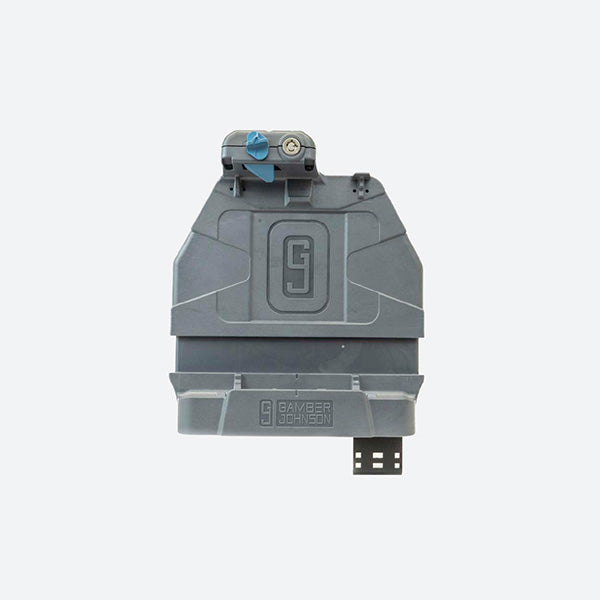

Designed for the Zebra ET4X 10 inch tablet line, the Gamber Johnson SLIM cradle 7160-1807-90 does not include any port replication or power pass through. A Zebra rugged frame is required to make the Zebra tablet compatible with the cradle. The 7160-1807-90 cradle is designed simply to safely secure the Zebra tablet in a vehicle and comes with a keyed lock for theft deterrence. For a vehicle dock with Full Port Replication please consider the Gamber Johnson 7160-1807-20 docking station. Let our Rugged or Die sales team create a one-click bundle for your entire forklift mount or vehicle mount solution, just send us your requirements by emailing us at sales@ruggedordie.com

7160-1807-90 Features

  • Zebra’s rugged frame is required in order to work with the docking station
  • All features on tablet are functional while the tablet is safely docked
  • Simple, one-handed docking and release operation
    • Insert bottom of Zebra tablet into the cradle and push top of the tablet in until the lock engages
    • Push latch button up with your thumb then remove the tablet from the cradle.
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products
  • Can be mounted on a flat vertical surface
  • Composite design to reduce overall weight

Kit Includes:

  • Zebra ET4X 10" Cradle
  • Mounting Hardware
  • Installation Instructions

7160-1807-90 Specifications

  • Weight

    1.3 lbs / 0.59 kg

  • Height

    10.1 in / 25.65 cm

  • Width

    7.75 in / 19.69 cm

  • Depth

    2.8 in / 7.11 cm

    Testing Specifications:

    • MIL-STD 810G Shock/Vibration Tested
    • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
    • SAE J1455 Crash Tested
    • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
    • RoHS, FCC, CE Certifications

    Antenna Pass-through:

    • No RF

    Notes:

    Compatibility: Zebra ET4X 10 inch Rugged Tablet (Zebra's rugged frame is required in order to work with docking station)
