Gamber Johnson Getac UX10 Tablet Dock (NO RF) 7160-1813-00

Gamber Johnson Dock 7160-1813-00

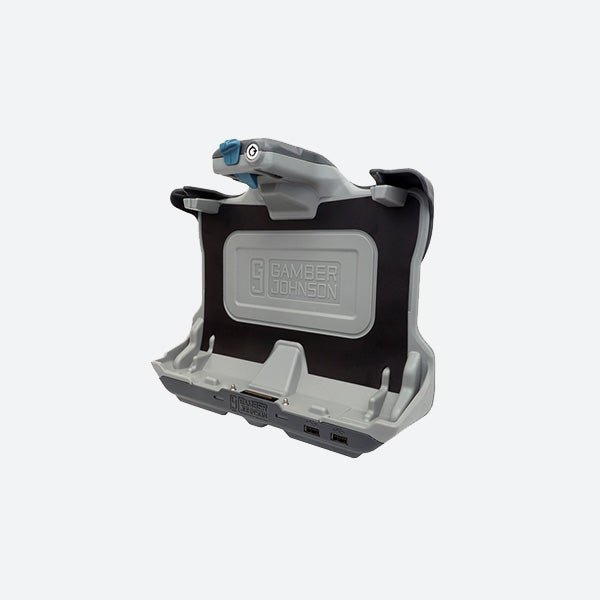

Getac UX10 Tablet Docking Station with no RF pass through. Gamber-Johnson Getac UX10 docking station accommodates the tablet’s rotating hand strap with the extended battery, or the hard handle, RFID reader, and smartcard reader. This docking station features full port replication to connect peripherals, a conveniently located latch button for one-handed docking/release, a keyed lock for extra security, and a VESA 75mm mounting pattern.

7160-1813-00 Features

• Docking station design accommodates the rotating hand strap with the extended battery, or the hard handle, RFID reader, and smartcard reader (sold separately)
• Easy to use one-handed operation:
  • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
• Access to all tablet control buttons and ports while tablet is docked
• Optional keyed lock for theft deterrence
• Downward-facing I/O ports, integrated cable strain relief and cable management system
• Vesa 75mm mounting pattern
• Rounded edges to enhance personal safety

7160-1813-00 Specifications

Weight

2.15 lbs / 0.97 kg

Height

9.87 in / 25.06 cm

Width

11.25 in / 28.57 cm

Depth

4.5 in / 11.43 cm

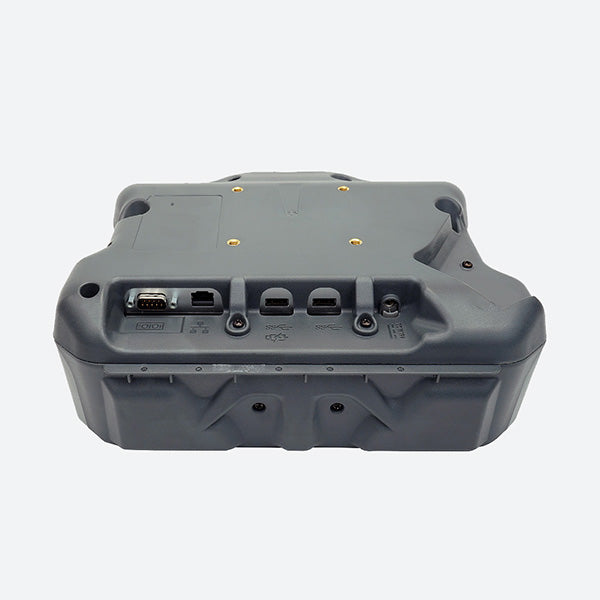

Port Replicators:

Ethernet (1) - RJ45
USB 2.0 (2) - 4 Pin Forward-Facing (500mA)
USB 3.0 (1) - 4 Pin Rear-Facing (900mA)
USB 3.0 (1) - 4 Pin Rear-Facing, Fast Charging (1500mA)
RS232 Serial (1) - D-Sub 9 Pin
Power Input - 19 Vdc

Antenna Pass-through:

No RF
