Gamber-Johnson

Gamber Johnson Dell Latitude 7030 Vehicle Dock Full Port 7160-1882-10

Gamber Johnson Dock 7160-1882-10

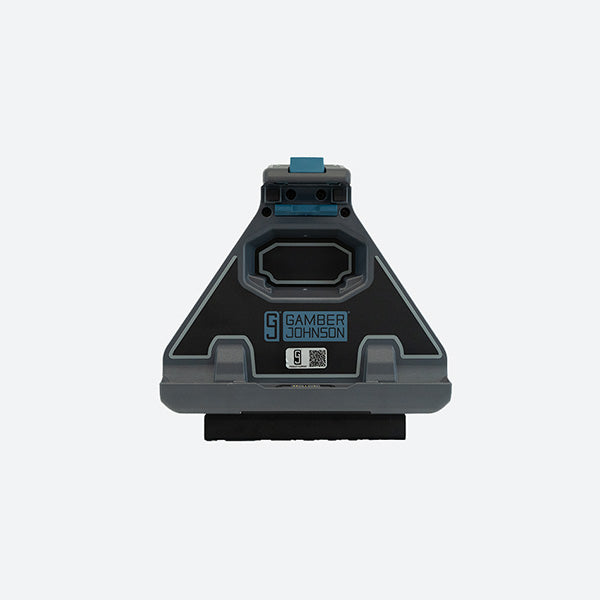

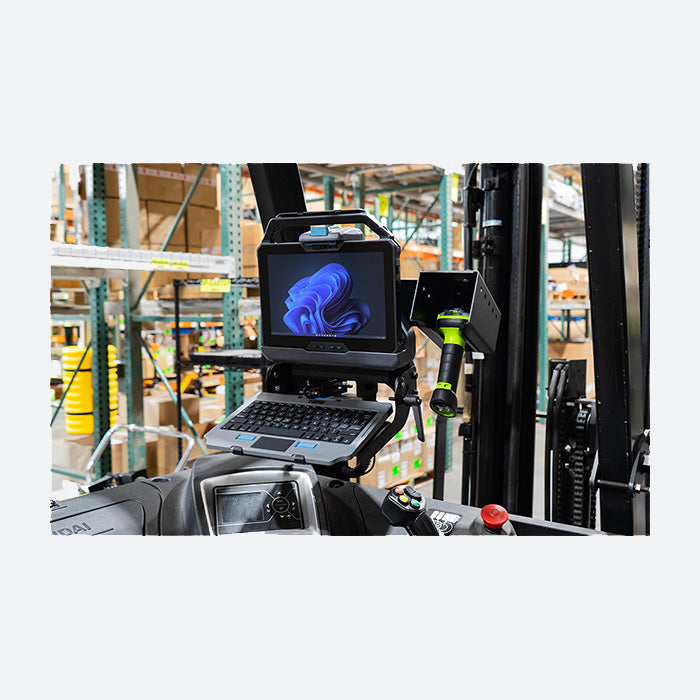

Built specifically for the Dell Latitude 7030 Rugged Extreme Tablet, the Gamber Johnson 7160-1882-10 vehicle dock features full port replication. With port replication including an HDMI port, Ethernet port, RS232 Serial port, 2 USB-A ports, 1 USB-C port and power input, the 7160-1882-10 is compatible with virtually any data input. Port replication on a vehicle dock saves the ports on your Dell Latitude 7030 from wear and tear. The dock does not include a power supply. Pair the 7160-1882-10 with a forklift specific mount such as the Gamber Johnson dual clamshell with articulating arm (part number 7160-0421) for a complete versatile and rugged material handling solution. If you have questions about the proper dock for your Dell Latitude 7030 use, please contact a Rugged or Die sales rep today!

7160-1882-10 Features

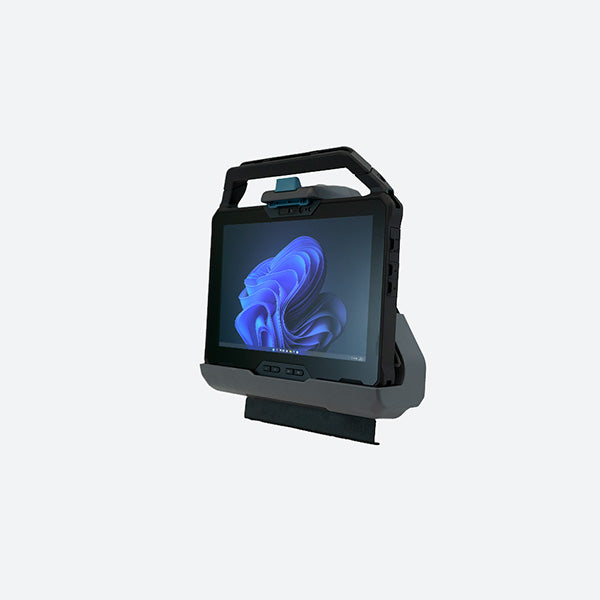

  • Compatible with the Dell Latitude 7030 Rugged Extreme tablet computer
  • Accommodates the tablet’s hand strap or magnet mount attachment
  • Access to all tablet control buttons, ports and scanner while the tablet is docked
  • Docking connector gasket helps prevent moisture buildup when docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • One-handed docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson's rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments
  • HDMI full port replication to connect a second display

Kit Includes:

  • Dell Latitude 7030 Rugged Extreme Tablet Vehicle Docking Station, Full Port (7160-1882-10)
  • Mounting Hardware

7160-1882-10 Specifications

Weight

2.7 lbs / 1.22 kg

Height

9.2 in / 23.37 cm

Width

10.6 in / 26.92 cm

Depth

2.9 in / 7.37 cm

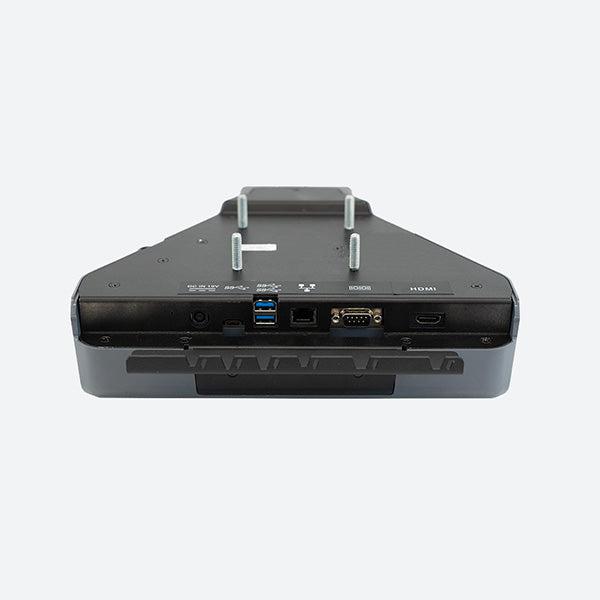

Port Replicators:

USB-A 9-Pin - (2) Fully powered (1.5 Amps each)
USB-C (1) Fully powered (1.5 Amps)
RJ45 Ethernet (1)
RS232 Serial (1)
Power Input: 19.5 Vdc
Display: HDMI 1.1

Power Supply:

Not included, use with:
LIND 120W Auto Power Adapter - (Item No. 7300-0714)
LIND 12-32V Isolated material handling power adapter (Item No. 7300-0305)
LIND 20-60V Isolated material handling power adapter (Item No. 7300-0306)
LIND 72-110V Isolated material handling power adapter (Item No. 7300-0622)

$586.81 USD
$586.81 USD
Shipping calculated at checkout.
