Gamber-Johnson

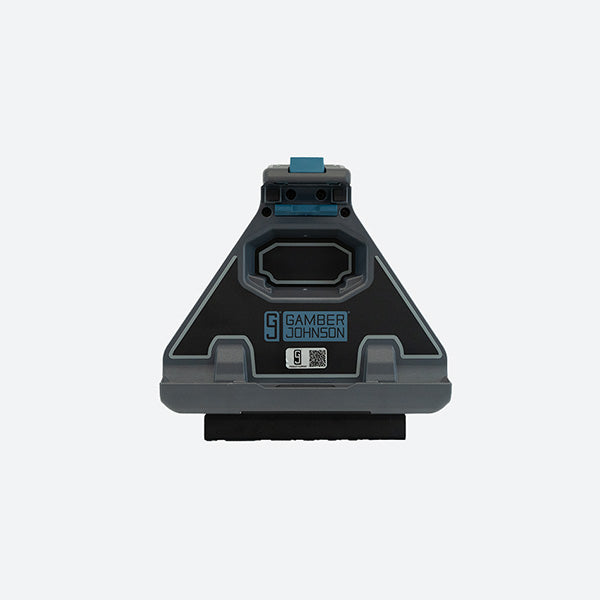

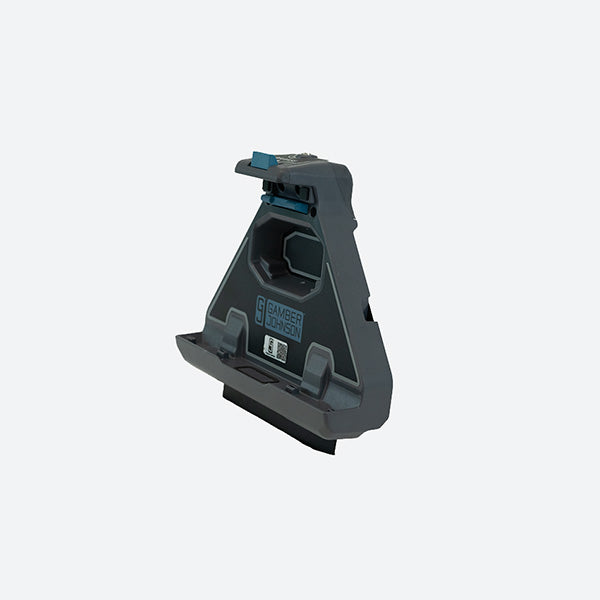

Gamber Johnson Dell Latitude 7030 Vehicle Cradle 7160-1883-00

Gamber Johnson Cradle 7160-1883-00

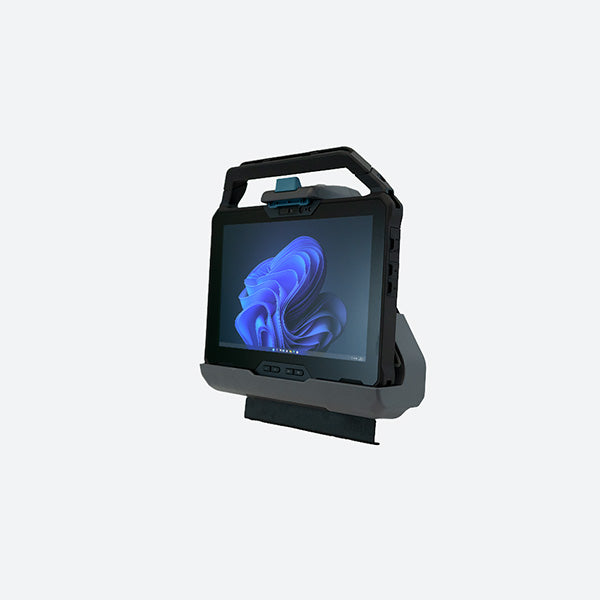

Compatible with the Dell Latitude 7030 Rugged Extreme Tablet the Gamber Johnson 7160-1883-00 Vehicle Cradle does not have any port replication or power input. A power supply (sold separately) would be able to plug directly into the docked cradle. Designed simply to hold the 7030 tablet securely, the 7160-1884-00 has a keyed lock for theft deterrence. While the Dell 7030 is docked in the cradle, an operator will still have access to all the tablet ports and buttons ensuring user efficiency and ease of operation. A vehicle mount and power supply would be required to complete the 7160-1883-00 into a full mounting solution, if you need help with suggestions a Rugged or Die sales rep is an expert in the vehicle mounting and docking industry and would be happy to help! If you need a cradle to mount the Dell 7030 with the rugged Dell keyboard, Gamber Johnson 7160-1884-00 is the suggested solution for that part configuration.

7160-1883-00 Features

  • Compatible with the Dell Latitude 7030 Rugged Extreme tablet computer
  • Accommodates the tablet’s hand strap or magnet mount attachment
  • Access to all tablet control buttons, ports and scanner while the tablet is docked
  • One-handed docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson's rugged construction and reliability
  • Composite design for reduced weight and durability

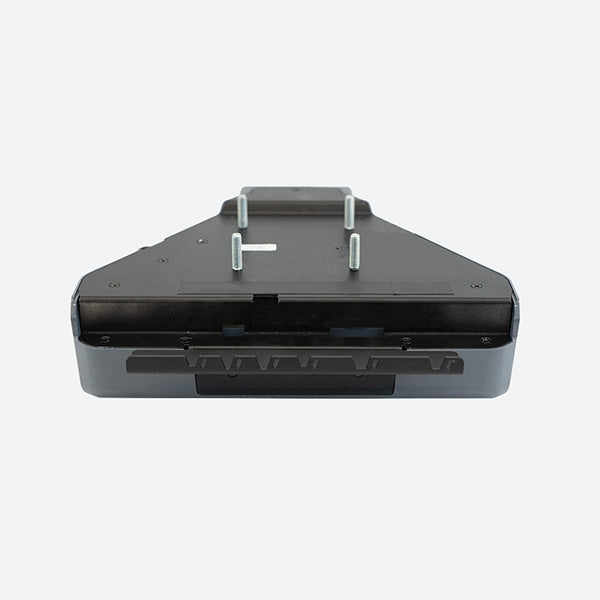

  • VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments

Kit Includes:

  • Dell Latitude 7030 Rugged Extreme Tablet Vehicle Cradle (No electronics) (7160-1883-00)
  • Mounting Hardware

7160-1883-00 Specifications

Weight

2.5 lbs / 1.13 kg

Height

9.2 in / 23.37 cm

Width

10.6 in / 26.92 cm

Depth

2.9 in / 7.37 cm

Power Supply:

Not included, use with LIND Auto Power Adapter - USB-C Input with Cigarette Plug (Item No. 7300-0621)

Testing Specifications:

  • MIL-STD-810H Operational and Non-Operational Vibration/Shock Testing
  • Environmental: Humidity, Thermal Shock, High/Low Temperature - Storage/Operational
  • Cycle Test: 30,000 cycles, Latch, Lock, and Docking Connector
  • Electrostatic Discharge: ISO 10605
  • Shock Crash Hazard: Test SAE J1455
  • EMC Testing: EN 55032, EN50498
  • RoHS, FCC, CE, UKCA

Model Compatibility:

  • Dell 10 Inch Rugged Extreme Tablet (7030)
$244.00 USD
