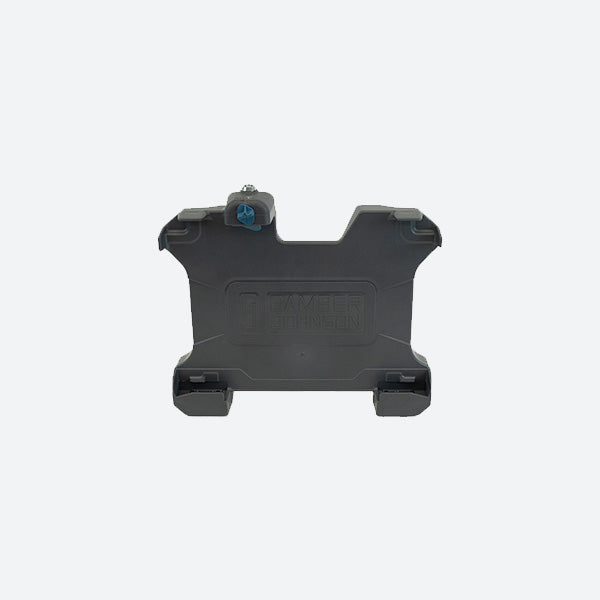

Gamber Johnson Zebra ET6X 10 Inch SLIM Dock No RF 7160-1885-00

Gamber Johnson Dock 7160-1885-00

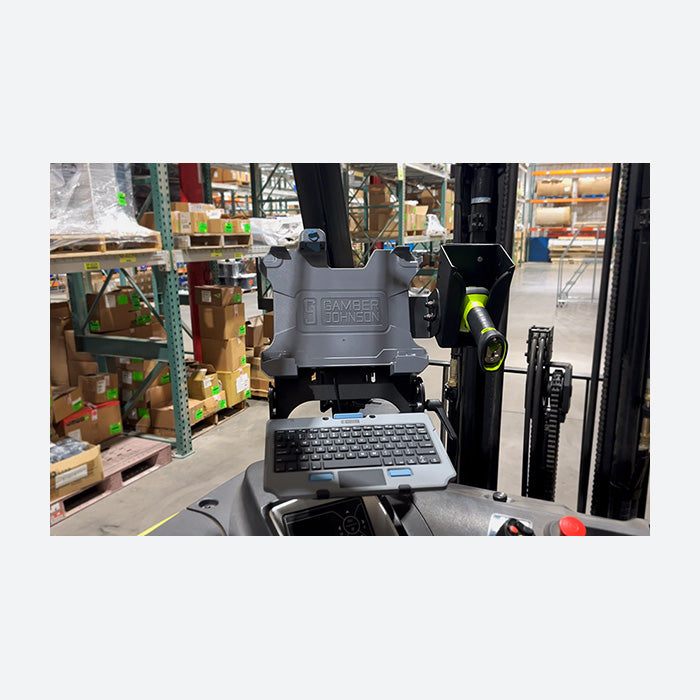

Compatible with the Zebra ET6X 10 inch tablet, the Gamber Johnson 7160-1885-00 SLIM dock does not come with any RF pass through but does include Dual USB-A ports, an RS 232 Serial port and power. Ideal for mobile job codes such as public safety, material handling or field services, the 7160-1885-00 Gamber Johnson Dock is versatile and highly functional. If the mounting equipment to turn the dock into a full mounting solution is still required, contact the Rugged or Die sales team for the suggested components to complete your vehicle mount!

7160-1885-00 Features

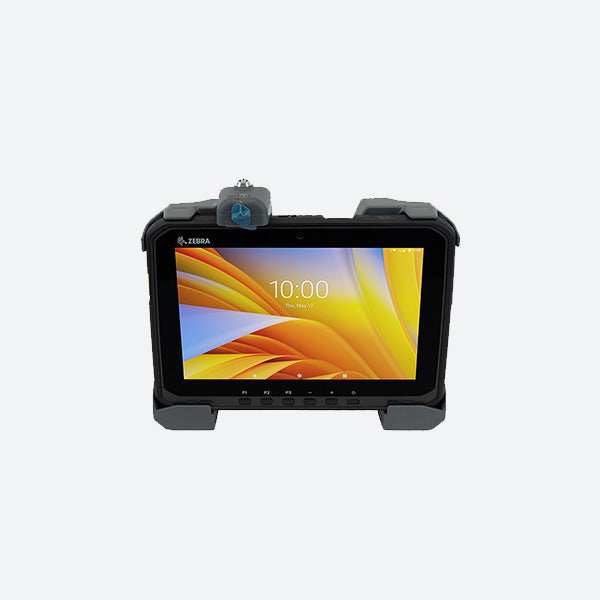

• Designed for the Zebra ET60 and ET65 rugged tablet computer
• POGO pin connector provides power to charge the Zebra tablet while docked
• Patented Slam Latch for one-handed docking and release for efficient use all day long
• Accommodates the Zebra ET6X attachable keyboard
• All features on tablet are accessible while the tablet is safely docked
• Simple, one-handed docking and release operation:

  • Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.
  • Push latch button up with your thumb then remove the tablet from the docking station
• Barrel Key lock for theft deterrence
• Composite design for reduced overall weight
• Molded in cable restraint features for streamlined cable management
• VESA 75mm mounting pattern; compatible with Zirkona mounting products
• Can be mounted on a flat vertical surface
• Compatible with ET6X Standard Battery

7160-1885-00 Specifications

Weight

2 lbs / 0.91 kg

Height

9.9 in / 25.15 cm

Width

11.1 in / 28.19 cm

Depth

3.1 in / 7.87 cm

Port Replicators:

Dual USB-A, 1.5A
Serial, RS232

Antenna Pass-through:

No RF

Power Supply:
