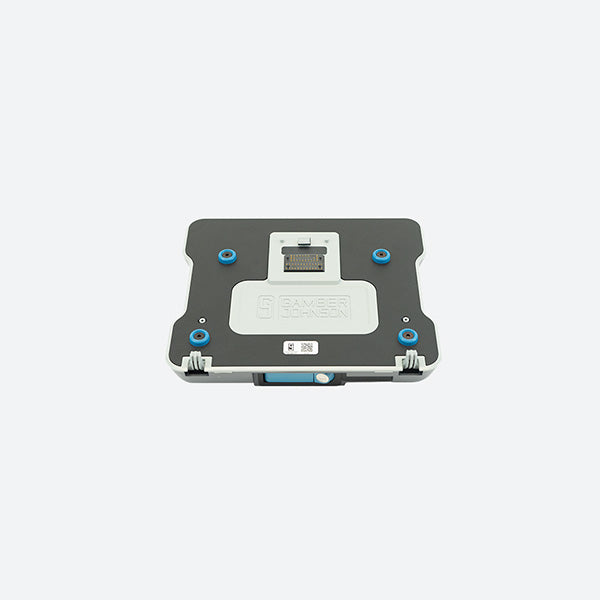

Gamber Johnson Dell Rugged Laptop Vehicle Lite Port Replication Dock 7160-1982-00

Gamber Johnson Dock 7160-1982-00

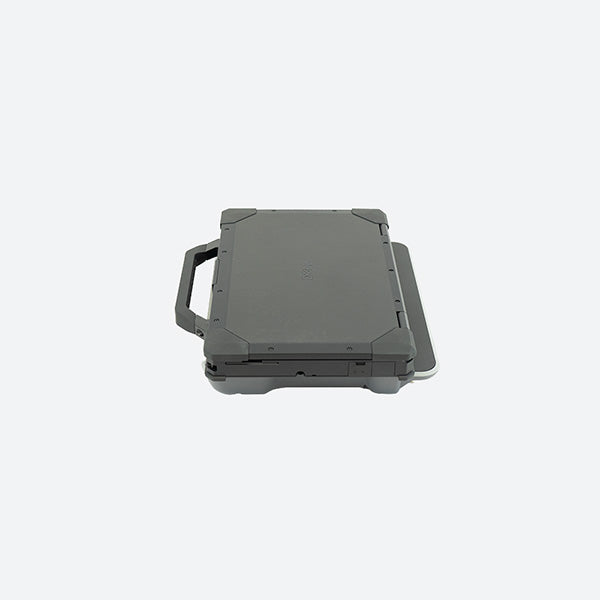

Dell Rugged Laptop Vehicle Docking Station with Lite Port replication and No RF pass through. The Dell Latitude Rugged Laptop docking station is adjustable to be compatible with the Dell Latitude 14 Rugged, Latitude 14 Rugged Extreme, and Latitude 12 Rugged Extreme Laptop computers.

7160-1982-00 Features

• Access to all tablet control buttons and ports while the tablet is docked
• Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers
• Rear-facing I/O ports; integrated cable strain relief and cable management system
• Front-facing docking/release latch
• Keyed lock for theft deterrence
• Optional Tri RF (WWAN,WLAN, GPS) TNC
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability
• VESA 75mm mounting pattern
• Note: Docking Drivers are required for this docking station. Please contact a ROD sales representative for the correct drivers.

7160-1982-00 Specifications

Weight

5.6 lbs / 2.5 kg

Height

2.36 in / 6.0 cm

Width

Hooks expand from 10.7 in - 12.85 in / 27.2 cm - 32.6 cm

Depth

12.13 in / 30.8 cm

Port Replicators:

(1) Serial, D-sub 9-pin
(1) USB-A 2.0
(2) USB-A 3.0
(1) USB-C 3.0
(1) Ethernet, RJ45
Power input, 19VDC
Tri RF Pass-through (optional), TNC

Antenna Pass-through:

No RF

Model Compatibility:

12 Rugged Extreme Laptop (7204/7214)
13 Pro Rugged Laptop (RA13250)
14 Pro Rugged Laptop (RB14250)
14 Rugged Extreme Laptop (7404/7414/7424/7330)
14 Rugged Laptop (5404/5414/5420/5424/5430)
