Gamber Johnson 2007-2017 Ford Expedition Pedestal System 7170-0129

Gamber Johnson Full Mount 7170-0129

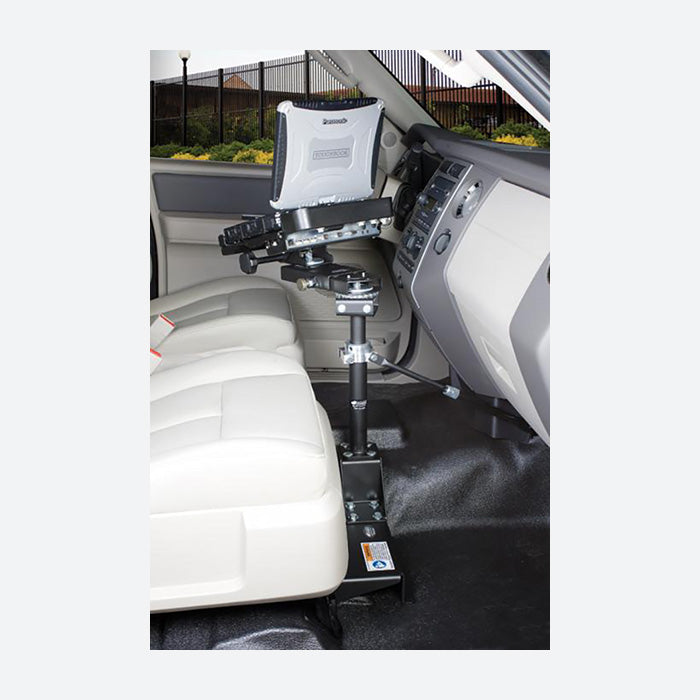

Compatible with the 2007-2017 Ford Expedition the Gamber Johnson 7170-0129 pedestal system is a no-drill solution for your vehicle. Mounting to the passenger side seat bolts, the 7160-0046 vehicle base offers a durable platform for the computer mounting solution. With the included support brace, vibration and shocks are limited from reaching the mounted computer. A 9 inch Mongoose motion attachment rounds out the solution and provides computer ergonomics and articulation to the user. To complete your in-vehicle mounting solution, a computer or tablet dock or cradle would be needed to safely secure the computer to the Mongoose motion attachment. If you need help choosing the correct dock Rugged or Die sales reps can answer any of your questions! If you are still in need of a quote for the computer itself, Rugged or Die is pleased to offer new and refurbished Panasonic TOUGHBOOKS as well as Getac rugged laptops and tablets.

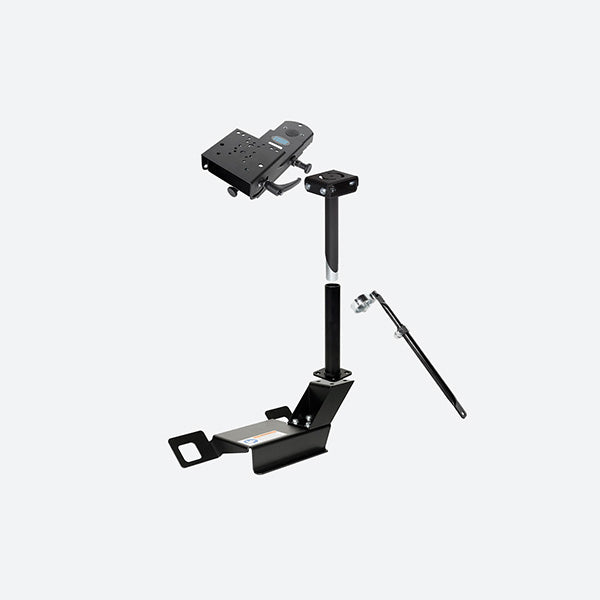

7170-0129 Features

• Vehicle Base (7160-0046): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
• Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
• Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• 9 Inch Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360 degrees with locking points every 15 degrees. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90 degrees forward/26 degrees backward and can be swiveled up to 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.

• Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7170-0129 Specifications

Vehicle Compatibility:
