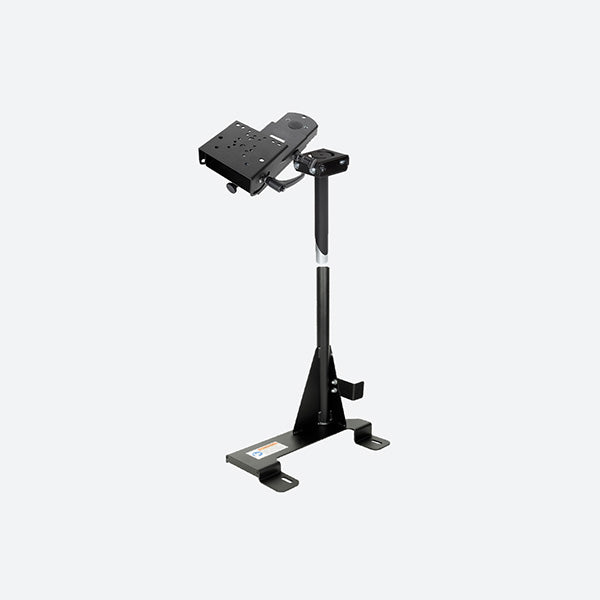

Gamber Johnson 2006-2014 Ford E-Series Van / 2006+ Cutaway Chassis Pedestal System 7170-0130

Gamber Johnson Full Mount 7170-0130

Compatible with the 2006-2014 Ford E-Series Van and 2006+ Ford E-Series with Cutaway Chassis the Gamber Johnson 7170-0130 pedestal system is a no-drill solution for your vehicle. Mounting to the seat studs on the passenger side, the 7160-0090 vehicle base offers a stable and durable platform for the computer mounting solution. A 9 inch Mongoose motion attachment provides computer ergonomics and articulation to the user. To complete your in-vehicle mounting solution, a computer or tablet dock or cradle would be needed to safely secure the computer to the Mongoose motion attachment. If you need help choosing the correct dock or would like a quote for the computer itself, Rugged or Die is pleased to offer new and refurbished Panasonic TOUGHBOOKS as well as Getac rugged laptops and tablets.

7170-0130 Features

• Vehicle Base (7160-0090): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
• Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• 9 Inch Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360 degrees with locking points every 15 degrees. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90 degrees forward/26 degrees backward and can be swiveled up to 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.

7170-0130 Specifications

Vehicle Compatibility:
