Gamber-Johnson

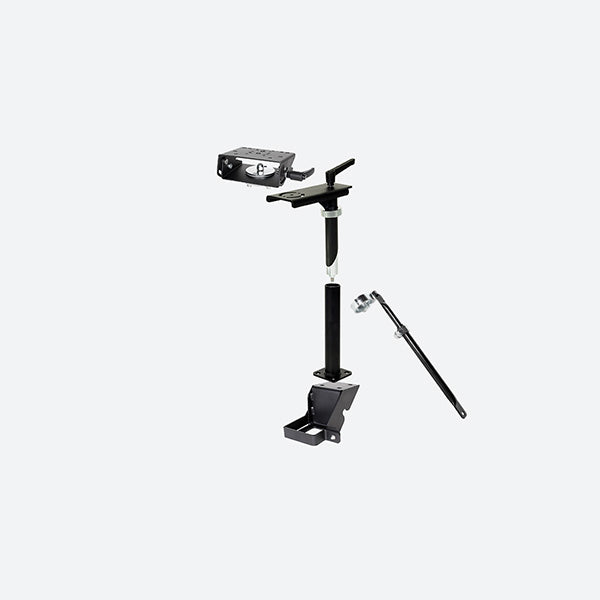

Gamber Johnson 2010-2013 Ford Transit Connect Pedestal System 7170-0131

Gamber Johnson Full Mount 7170-0131

The 7170-0131 is compatible with the Ford Transit Connect for model years 2010-2013. Mounting on the passenger side seat studs, this pedestal mount does not require drilling into the floor of the vehicle. Including the motion attachment and the recommended support brace, this robust vehicle mount is designed to provide optimal ergonomics for the user. The support brace (part number 7160-0230) attaches to the transmission hump bolts to increase stability and decrease vibration to the computer and dock. To complete the in-vehicle solution a computer specific dock or cradle would be needed. If you need assistance in picking the correct dock or even need pricing on a new or refurbished Getac or Panasonic tablet or laptop please contact a Rugged or Die sales rep for a free consultation and quote!

7170-0131 Features

  • Vehicle Base (7160-0245): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
  • Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (QADJ-UPPER-M): Convenient lever controls left/right rotational adjustments as well as height adjustments. Set-collar can be used to stabilize height while rotational adjustments are made.
  • Motion Attachment (7160-0750): The Standard Clevis Motion Attachment has tilt capabilities up to 90 degrees forward/26 degrees backward and can swivel 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7170-0131 Specifications

Vehicle Compatibility:

  • Ford
    • Transit Connect - 2010-2013
$387.21 USD
$387.21 USD
Shipping calculated at checkout.
