Gamber Johnson 2011-2016 Ford F-250-550 Super Duty and 2011+ F-650/750 Super Duty Pedestal System 7170-0133

Gamber Johnson Full Mount 7170-0133

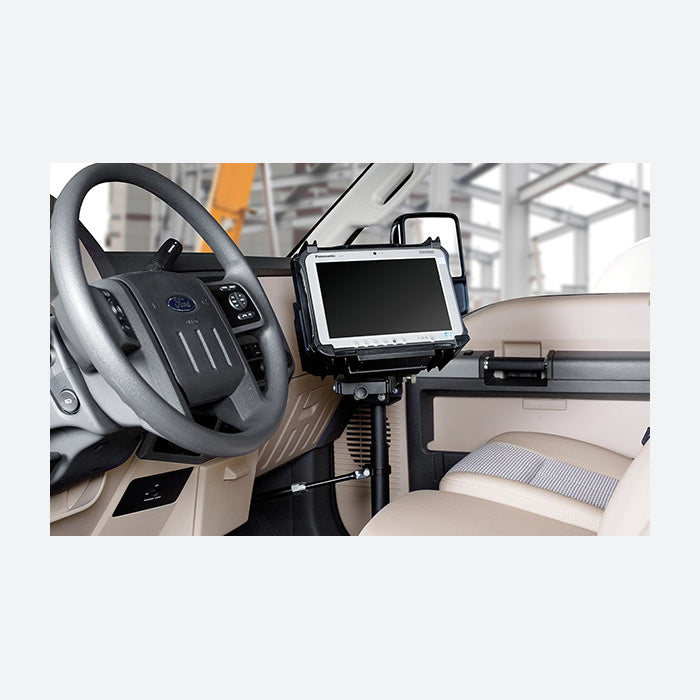

The 7170-0133 is compatible with a number of Ford models and styles (please see specifications for complete compatibility list.) Mounting on the passenger side seat bolts, this pedestal mount does not require drilling into the floor of the vehicle. Including the motion attachment and the recommended support brace, this robust vehicle mount is designed to provide optimal ergonomics and durability. To complete the in-vehicle solution a computer specific dock or cradle would be needed. If you need assistance in picking the correct dock or even need pricing on a new or refurbished Getac or Panasonic tablet or laptop please contact a Rugged or Die sales rep for a free consultation and quote!

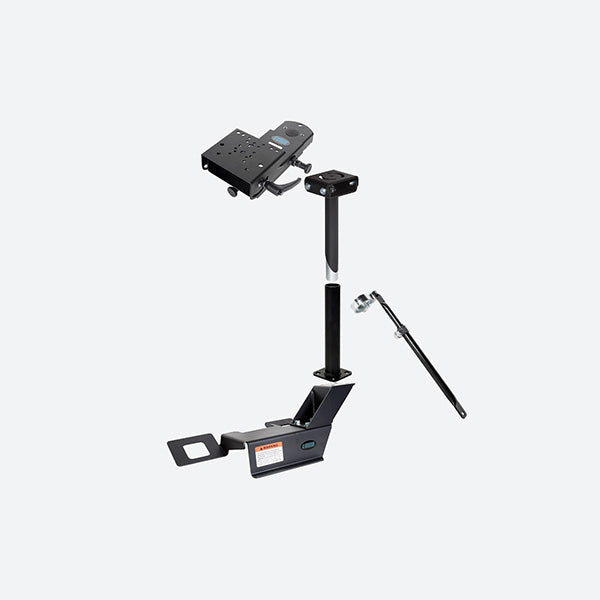

7170-0133 Features

• Vehicle Base (7160-0281): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
• Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
• Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• 9 Inch Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360 degrees with locking points every 15 degrees. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90 degrees forward/26 degrees backward and can be swiveled up to 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.

• Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7170-0133 Specifications

Compatibility:

• Ford F-250 to F-550 Super Duty (2011-2016)
• Ford F-650/750 Super Duty (2011 and newer)
