Gamber-Johnson

Gamber Johnson 2009-2014 Ford F-150 Console System 7170-0134

Gamber Johnson Console Kit 7170-0134

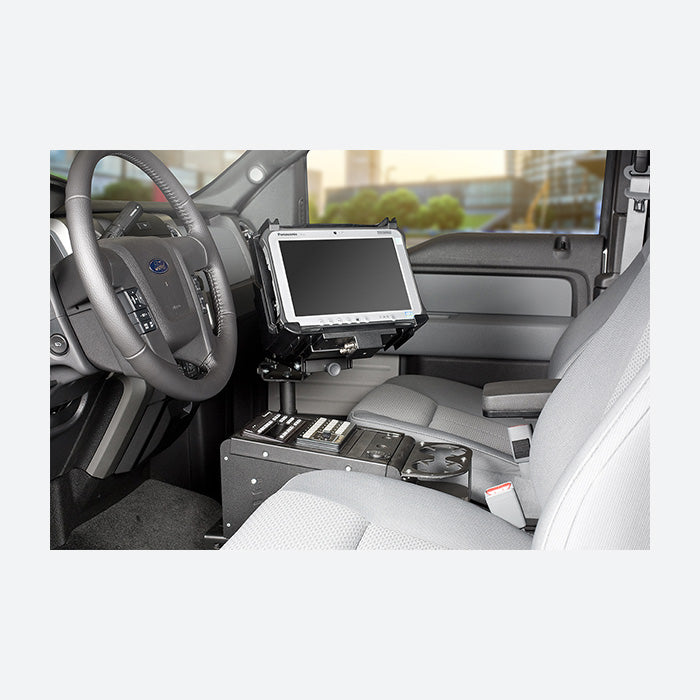

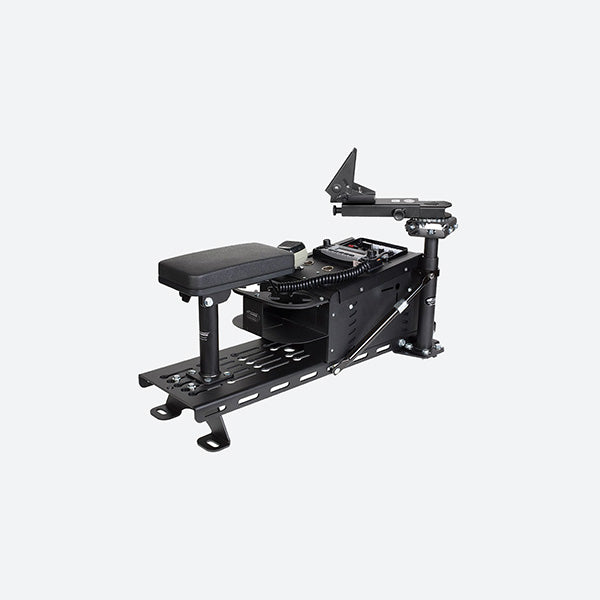

Designed for the 2009-2014 Ford F-150 the Gamber Johnson 7170-0134 offers a no-drill solution with the leg kit 7160-0164 attaching directly to the seat studs. This kit has a number of useful accessories adding functionality and ergonomics to the solution. The Gamber Johnson 7170-0134 kit includes the console box, leg kit, top plate, side extension mounting plate, pole system and the 9 inch Mongoose motion attachment. The pole system made up of the DS-LOWER-9 and 7160-0178 allows the user to position the computer mount where it suits best. To complete the mobile workspace solution a vehicle dock and a computer or tablet such as a Panasonic TOUGHBOOK or Getac laptop would be needed. Inquire about Rugged or Die's in-stock specials to find a computer solution that works for you!

7170-0134 Features

  • Leg Kit (7160-0164): Leg Kit is a no-drill solution and attaches to the seat studs.
  • 29" Top Plate (7160-0085): Top plate allows console box to be off set towards the passenger for added space.
  • 13" Console Box (MCS-EPIC13): The two-piece flexible design allows for multiple height/angle combinations based on radio requirements. Console box comes with 3 blank filler panels and 3 faceplates.
  • Side Extension Mounting Plate (7160-0106): Provides off -set mounting surface
  • Pole System (DS-LOWER-9 & 7160-0178): Pole system includes the lower tube and the center upper pole. Combined they allow the user to ergonomically position the computer to fit them best.
  • 9 Inch Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360 degrees with locking points every 15 degrees. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90 degrees forward/26 degrees backward and can be swiveled up to 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.

7170-0134 Specifications

Vehicle Compatibility:

  • Ford
    • F-150 - 2009-2014

Extra Accessories:

Gamber-Johnson offers a variety of accessories for the console box including LED lights, mic clips, cigarette adapter kits and power distribution blocks. (These are not included in the Vehicle Kits, must order separately). Compatible Vehicle: (2011-2014) Ford F-150

$1,155.04 USD
$1,155.04 USD
Shipping calculated at checkout.
