Gamber-Johnson

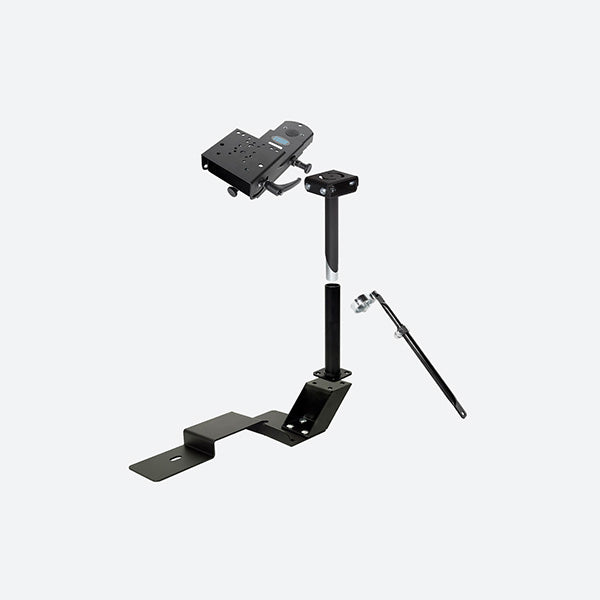

Gamber Johnson 2004-2014 Ford F-150 Pedestal System 7170-0135

Gamber Johnson Full Mount 7170-0135

The 7170-0135 is compatible with the Ford F-150 for model years 2004-2014. Mounting on the passenger side seat bolts, this pedestal mount does not require drilling into the floor of the vehicle. Including the famous Mongoose motion attachment and the recommended support brace, this robust Gamber Johnson vehicle mount is designed out of heavy duty parts for long term durability. To complete the in-vehicle solution a computer specific dock or cradle would be needed. If you need assistance in picking the correct computer dock or even need pricing on a new or refurbished Panasonic TOUGHBOOK or Getac tablet or computer please contact a Rugged or Die sales rep for a free quote.

7170-0135 Features

  • Vehicle Base (DS-124): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
  • Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
  • 9 Inch Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360 degrees with locking points every 15 degrees. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90 degrees forward/26 degrees backward and can be swiveled up to 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7170-0135 Specifications

Weight

50 lb / 22.68 kg

Height

25.4 in / 64.52 cm

Width

17.5 in / 44.45 cm

Depth

17.5 in / 44.45 cm

Vehicle Compatibility:

  • Ford
    • F-150 - 2004-2014
$547.59 USD
$547.59 USD
Shipping calculated at checkout.
