Gamber Johnson 2007-2014 Chevrolet/GMC TrucksFull-Size SUV Pedestal System 7170-0142

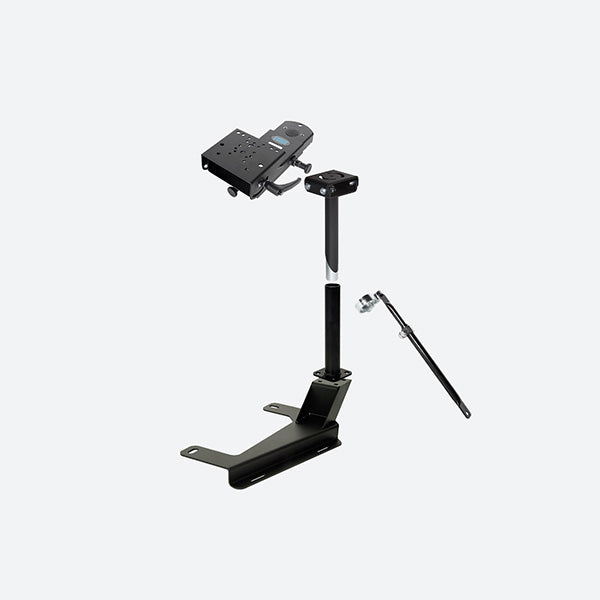

Gamber Johnson Full Mount 7170-0142

Built for 2007-2014 Chevrolet and GMC Trucks and Full-Size SUV vehicles, the Gamber Johnson 7170-0142 pedestal system mounting kit doesn't require drilling to install. This mounting kit includes all mounting components to mount a computer or tablet in a vehicle, with the exception of a computer dock or cradle. To complete your in-car solution, a computer or tablet dock or cradle would be necessary and secure to the included Mongoose 9 inch motion attachment. If you need help picking the correct dock or cradle for your mount or even the computer itself, the Rugged or Die sales team are experts in the rugged tech industry and are standing by to help!

7170-0142 Features

• Vehicle Base (DS-144): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability. This base will not work with the Chevrolet 3500 with a PTO, the recommended base is the 7160-0185.
• Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
• Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• 9" Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
• Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7170-0142 Specifications

Weight

29 lbs / 13.15 kg

Height

27.1 in / 68.83 cm

Width

20.8 in / 52.83 cm

Depth

12.4 in / 31.5 cm

Compatible Vehicles:

• Chevrolet
  • 1500/2500/3500 C/K (2007-2009)
  • Avalanche (2007-2013)
  • Silverado (2007-2013)
  • Silverado 2500/3500/HD Models (2007 new body style-2014)
  • Suburban (2007 new body style-2014)
  • Tahoe PPV (2007 new body style-2014)
  • Tahoe SSV (2007-2014)
• GMC
  • 1500/2500/3500 C/K (2007-2009)
  • Sierra (2007-2014)
  • Sierra 2500/3500/HD Models (2007 new body style-2014)
  • Yukon/Yukon XL (2007-2014)
