Gamber Johnson 2012-2019 Ford Police Interceptor Utility Console Cup Holder Armrest and Mongoose Motion Attachment 7170-0166-04

Gamber Johnson Console Kits 7170-0166-04

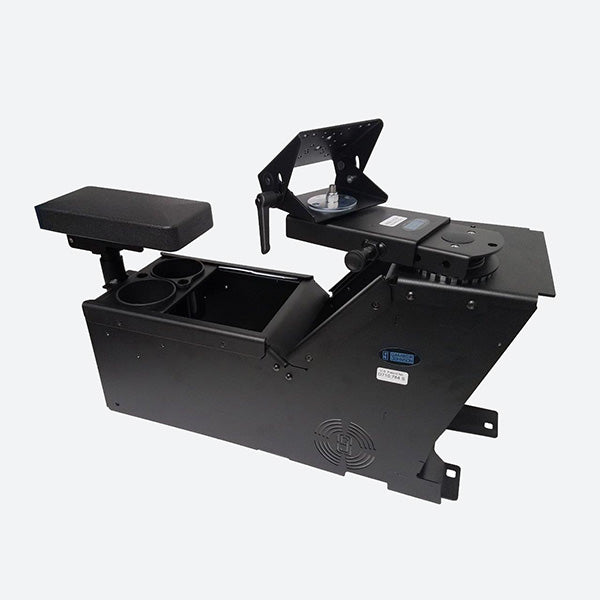

The Gamber Johnson 7170-0166-04 console kit is built for 2012-2019 Ford Police Interceptor Utility vehicle and attaches directly to the vehicle transmission hump with no drilling required. This console kit comes with the console box, cup holder, Mongoose 9 inch motion attachment and breakaway armrest. The breakaway armrest allows the user to push the armrest out of the way when not in use. The famous Mongoose motion attachment gives users the ability tilt, swivel, rotate and adjust computer depth. Other accessories that are available for this console are computer docks, printer mounts, storage pockets and more. If you are needing a computer or tablet dock or even the computer itself, Rugged or Die sales representatives are experts in computer in-vehicle solutions and can help assemble a custom solution that is purpose built for your needs!

7170-0166-04 Features

  • Low profile vehicle specific console box
  • Six (6) fasteners for mounting to transmission hump
  • A removable top and center plate for easy radio installation and wire routing
  • 12 Volt plug insert located on passenger side
  • Factory USB and audio jack must be relocated using item no. 16648 & 15082 or 16648 & 15083 if you want to use them
  • Four (4) 12 Volt knockouts located on passenger side
  • Computer can be mounted on top of the console box and be off-set towards the passenger on the "smiley face pattern" or mounted to the driver side with the 3-bolt hole pattern
  • Heavy gauge steel, fully welded constructed for long-term durability.
  • Black powder coat finish for maximum corrosion resistance
  • 3 faceplates and 3 filler pane is included
  • Console box ships fully assembled (except for accessories)

Kit Includes:

  • Console box (item no. 7160-0412)
  • Cup holder (item no. 7160-0846)
  • Armrest (item no. 7160-0429)
  • Mongoose motion attachment (item no. 7160-0220)

7170-0166-04 Specifications

Weight

32.5 lbs. (14.74 kg)

Height

13.5" (34.3 cm)

Width

9.2" (23.4 cm)

Depth

25.5" (64.8 cm)

Vehicle Compatibility:

  • Ford
    • Police Interceptor Utility - 2012-2019
    • Seat configuration: bucket
    • Drilling required: NO - attaches to transmission hump

Mounting Space:

  • Horizontal, low profile section: Accommodates 11 inches (27.9 cm) of mounting space for radio heads and devices. The included cup holder uses 4.5 inches (11.43 cm) of that space.
  • Vertical, angled section: Accommodates 7.5 inches (19.1 cm) of mounting space to house 1 to 2 full-sized radios

Notes:

  • Must order kit as is. There are no substitutions. Accessories may need to be assembled.
  • Will not work with the relocation cable kit (item no. 7120-0579)
$769.03 USD
$769.03 USD
Shipping calculated at checkout.
