Gamber-Johnson

Gamber Johnson Chevrolet/GMC Truck and Full-Size SUV Pedestal 7170-0214

Gamber Johnson Full Mount 7170-0214

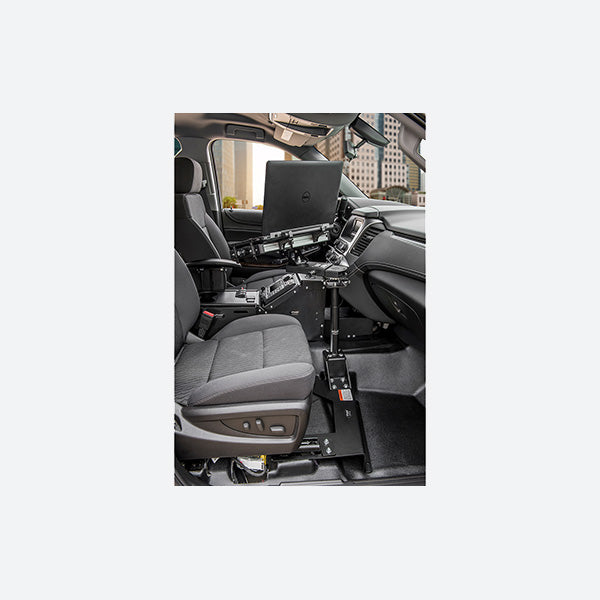

The 7170-0214 Gamber Johnson pedestal system is compatible with a range of vehicles including Chevrolet/GMC Trucks and Full-Size SUVs (see Specifications for full vehicle compatibility list.) Featuring the versatile Gamber Johnson Mongoose 9 inch motion attachment, this pedestal system gives the user great control over the mounted computer or tablet ergonomics and position. If you are still deciding, let a Rugged or Die sales rep help you build a custom quote and suggest the optimal computer and or vehicle dock for your needs!

7170-0214 Features

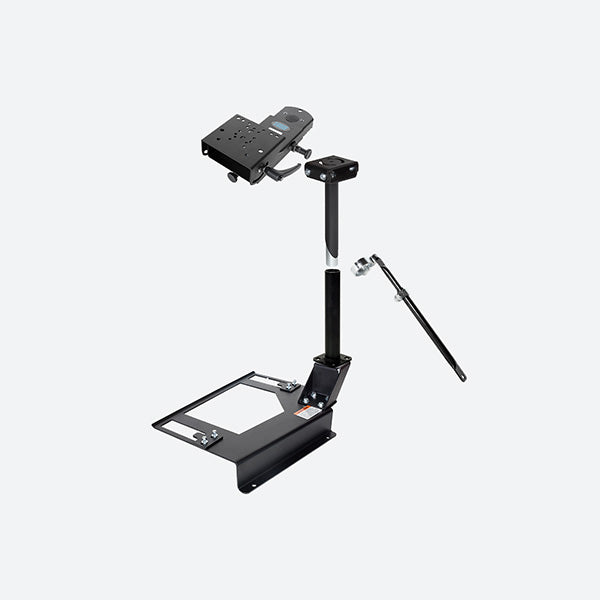

Kit Includes:

  • Vehicle Base (7160-0510) Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability. This base will not work with the Chevrolet 3500 with a PTO, the recommended base is the 7160-0185.
  • Lower Tube (DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
  • 9" Locking Swing Arm - Mongoose (7160-0220) Locking Slide Arm can rotate around 360 degrees with locking points every 15 degrees. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90 degrees  forward/26 degrees backward and can be swiveled up to 360 degrees. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (7160-0230) Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

7170-0214 Specifications

Weight

33 lbs / 14.97 kg

Height

26.2 in / 66.55 cm

Width

20.7 in / 52.58 cm

Depth

15.4 in / 39.12 cm

Vehicle Compatibility:

  • Chevrolet
    • Silverado 1500 - 2014-2018
    • Silverado 2500 - 2015-2019
    • Silverado 3500 - 2015-2019
    • Silverado 4500 - 2018-2024
    • Silverado 5500 - 2018-2024
    • Suburban - 2015-2020
    • Tahoe - 2015-2020
  • GMC
    • Yukon - 2015-2020
    • Sierra 1500 - 2014-2018
    • Sierra 2500 - 2015-2019
    • Sierra 3500 - 2015-2019
$631.77 USD
$631.77 USD
Shipping calculated at checkout.
