Gamber-Johnson

Gamber Johnson Ford C-MAX and Ford Escape Pedestal System 7170-0233

Gamber Johnson Full Mount 7170-0233

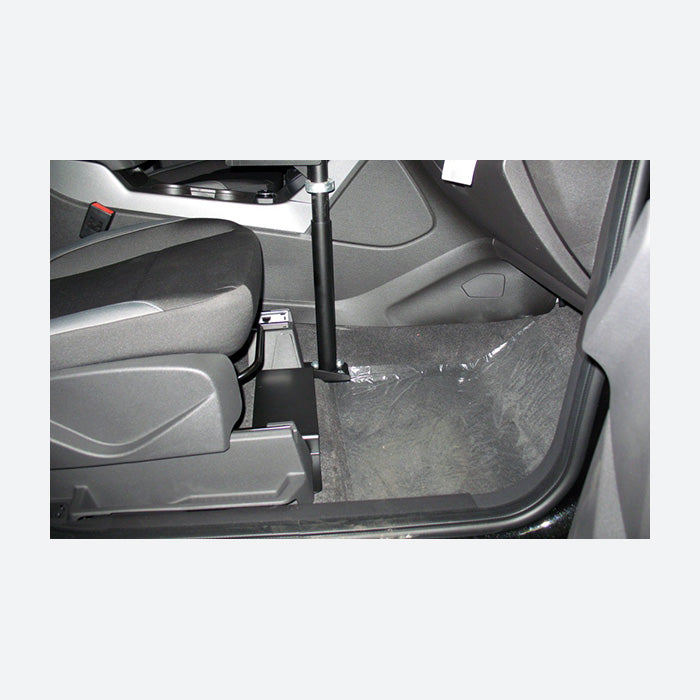

The Gamber Johnson 7170-0233 pedestal mounting system is built to be compatible with 2011-2019 Ford C-Max and 2013-2019 Ford Escape vehicles. Featuring a 6 inch locking slide arm motion attachment and a support brace to decrease vibrations and shocks from reaching the computer and dock, this pedestal system can be mounted to the passenger seat bolts without any drilling. If you still need the necessary computer dock or cradle or still need a rugged computer or tablet to complete your in-vehicle work station, Rugged or Die sales reps can help build a custom quote and complete your solution!

7170-0233 Features

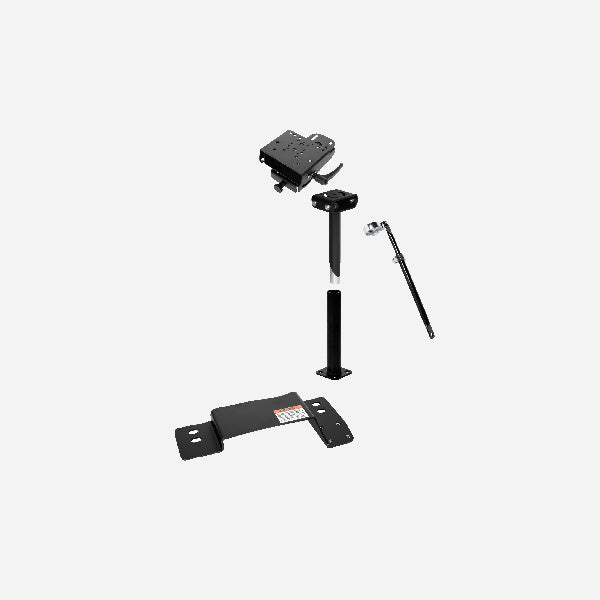

Kit Includes:

  • Vehicle Base (Item No. 7160-0451): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
  • Lower Tube (Item No. DS-LOWER-13): The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (Item No. 7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
  • 6" Locking Slide Arm (Item No. 7160-0500): Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can slide up to 5.5" from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (Item No. 7160-0230): Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration.

7170-0233 Specifications

Vehicle Compatibility:

  • Ford
    • Escape/MKX - 2013-2019
    • C-Max - 2011-2019
$522.68 USD
$522.68 USD
Shipping calculated at checkout.
