Gamber-Johnson

Gamber Johnson Chevrolet/GMC Truck and Full-Size SUV Console w Armrest and Cup Holder 7170-0237-01

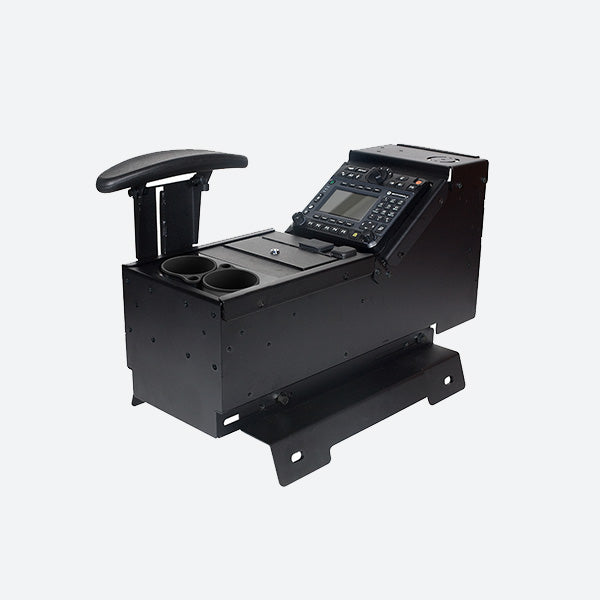

Gamber Johnson Console Kit 7170-0237-01

This Gamber Johnson console kit is built to be compatible with Chevrolet/GMC Truck and Full-Size SUVs. Enhanced by a number of accessories, this kit includes the console box, leg kit, side armrest and internal cup holder. The 7170-0237 series console kits come including a leg kit that attaches directly to the vehicle without need for additional equipment. Built of heavy gauge steel and powder coated, this Gamber Johnson console is built to last. A Rugged or Die sales rep would be happy to help build you a custom quote or answer any questions about this Gamber Johnson console. Chat or call with us now!

7170-0237-01 Features

  • No-drill solution that attaches to the vehicle without the need to order a separate top plate (leg kit is provided with the console box)
  • Two 12 volt plug inserts located on passenger side
  • USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate (item no. 15250)
  • Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes
  • Computer can be center mounted in two locations:
    • Off-set towards the passenger on the “smiley face pattern"
    • On the 3-bolt pattern closer to the driver for easy articulation access
  • Vertical, angled section accommodates 7.5” (19.1 cm) of mounting space and is designed to house 1 to 2 full sized radios or a larger radio such as the Motorola APX 09
  • Horizontal, low profile section accommodates 7" (17.78 cm) of mounting space and is designed to house radio control heads and accessories. The included cup holder uses 4.5" (11.43 cm) of that space.
  • Console box works with manual 4x4 shift lever
  • Heavy gauge steel, fully welded construction for long-term durability
  • Black powder coat finish for maximum corrosion resistance
  • Box will ship fully assembled
  • 3 faceplates and 3 filler panels are included

Kit Includes:

  • 7160-0548 - Console Box
  • 7160-0509 - Leg Kit
  • 7110-1013 - Side Armrest
  • 7160-0846 - Internal Cup Holder

7170-0237-01 Specifications

Weight

Weight: 22.0 lbs / 10.0 kg

Height

Height: 16.41 in / 41.7 cm

Width

Width: 13.71 in / 34.8 cm

Depth

Depth: 26.67 in / 67.7 cm

Vehicle Compatibility:

Chevrolet

  • Silverado 1500 - 2014-2018
  • Silverado 2500 - 2015-2019
  • Silverado 3500 - 2015-2019
  • Suburban - 2015-2020
  • Tahoe - 2015-2020

GMC

  • Sierra 1500 - 2014-2018
  • Sierra 2500 - 2015-2019
  • Sierra 3500 - 2015-2019
  • Yukon - 2015-2020

Mounting Space:

  • Horizontal Section accommodates 7" (17.78 cm) of mounting space including internal cup holder
  • Vertical Section accommodates 7.5" (19.05 cm) of mounting space

Additional Accessories:

If you require additional cup holders, use any external cup holders. If you require an armrest, there are threaded PEMS on both sides of the console to attach driver armrest (Item No. 7110-1013) and passenger armrest (Item No. 7110-1012). There are also threaded PEMS on the back of the console to use the following armrests: 7160-0429, 7160-0430 or 7160-0524.

$589.81 USD
$589.81 USD
Shipping calculated at checkout.
