Gamber Johnson Chevrolet/GMC Truck and Full-Size SUV Console w Cup Holder Armrest Wiring Chase and Mongoose 7170-0237-04

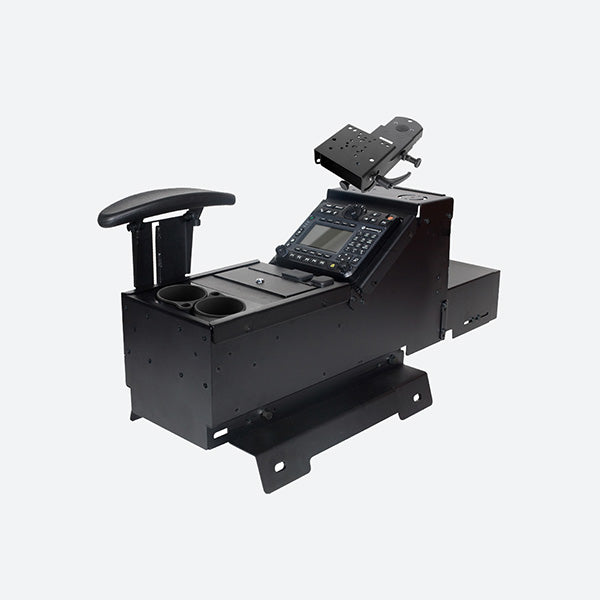

Gamber Johnson Console Kit 7170-0237-04

This Gamber Johnson console kit is built to be compatible with Chevrolet/GMC Truck and Full-Size SUVs. Enhanced by a number of accessories, this kit includes the console box, leg kit, cup holder, armrest, wiring chase and Mongoose motion attachment. The 7170-0237 series console kits come including a leg kit that attaches directly to the vehicle without need for additional equipment. With the included Mongoose motion attachment users can position a computer dock or cradle on the mounting pattern included on the front of the console. If you are also in need of a computer dock or cradle, Rugged or Die sales reps would be happy to help answer any questions or build you a custom quote!

7170-0237-04 Features

  • No-drill solution that attaches to the vehicle without the need to order a separate top plate. Leg kit is provided with the console box.

  • Two 12 volt plug inserts located on passenger side

  • USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate (item no. 15250)

  • Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes

  • Computer can be center mounted in two locations:
    Off-set towards the passenger on the “smiley face pattern",
    On the 3-bolt pattern closer to the driver for easy articulation access

  • Heavy gauge steel, fully welded construction for long-term durability

  • Black powder coat finish for maximum corrosion resistance

  • Box will ship fully assembled

  • 3 faceplates and 3 filler panels are included

  • Console box works with manual 4x4 shift lever

  • Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.

Kit Includes:

  • Console box (item no. 7160-0548)
  • Leg kit (item no. 7160-0509)
  • Cup holder (item no. 7160-0846)
  • Armrest (item no. 7110-1013)
  • Wiring chase (item no. 7110-1024)
  • Mongoose motion attachment (item no. 7160-0220)

7170-0237-04 Specifications

Weight

33.7 lbs. (15.3 kg)

Height

19.46" (49.4 cm)

Width

13.71" (34.8 cm)

Depth

39.50" (100.3 cm)

Vehicle Compatibility:

Chevrolet

  • Silverado 1500 - 2014-2018
  • Silverado 2500 - 2015-2019
  • Silverado 3500 - 2015-2019
  • Suburban - 2015-2020
  • Tahoe - 2015-2020

GMC

  • Sierra 1500 - 2014-2018
  • Sierra 2500 - 2015-2019
  • Sierra 3500 - 2015-2019
  • Yukon - 2015-2020

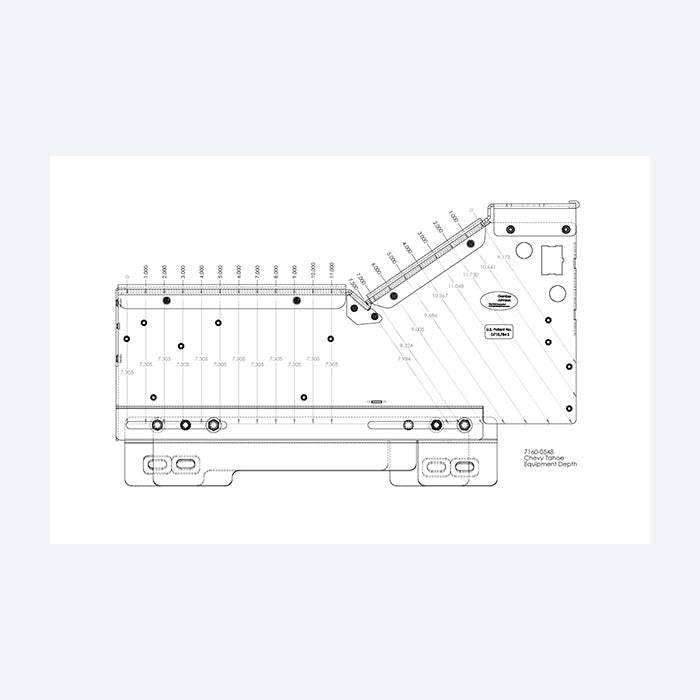

Mounting Space:

  • Horizontal Section: Accommodates 7" (17.78 cm) of mounting space including internal cup holder (or 11.5" without cupholder) and is designed to house radio control heads and accessories
  • Vertical angled section: 7.5” (19.1 cm) of mounting space and is designed to house 1 to 2 full sized radios or a larger radio such as the Motorola APX 09
$937.46 USD
$937.46 USD
Shipping calculated at checkout.
