Gamber-Johnson

Gamber Johnson Chevrolet/GMC Truck and Full-Size SUV Console w Cup Holder Armrest and Mongoose Motion Attachment 7170-0237-05

Gamber Johnson Console Kit 7170-0237-05

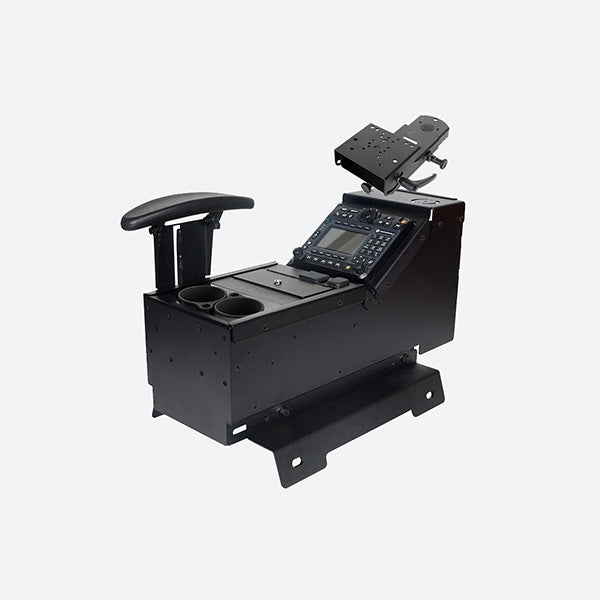

This Gamber Johnson console kit is built to be compatible with Chevrolet/GMC Truck and Full-Size SUVs. Enhanced by a number of accessories, this kit includes the console box, leg kit, armrest, cup holder and Mongoose motion attachment. With the included Mongoose motion attachment users can position a computer dock or cradle on the mounting pattern included on the front of the console. The 7170-0237 series console kits come including a leg kit that attaches directly to the vehicle without need for additional equipment. Rugged or Die sales representatives would be happy to help build you a custom quote or answer any questions about this Gamber Johnson console!

7170-0237-05 Features

  • Heavy gauge steel, fully welded construction for long-term durability.
  • Black powder coat finish for maximum corrosion resistance.

  • Attaches to the vehicle without the need to order a separate top plate. Leg kit is provided with the console box.

  • Two 12 volt plug inserts located on passenger side.

  • USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate, item no. 15250.

  • Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes.

  • Computer can be center mounted in two locations: off-set towards the passenger on the “smiley face pattern" or on the 3-bolt pattern closer to the driver for easy articulation access.

  • Vertical, angled section accommodates 7.5” (19.1 cm) of mounting space and is designed to house 1 to 2 full sized radios or a larger radio such as the Motorola APX 09.

  • Horizontal, low profile section accommodates 8” (20.3 cm) of mounting space and is designed to house radio control heads and accessories. The included cup holder uses 4.5" (11.43 cm) of that space.

  • Box will ship fully assembled.

  • 3 faceplates and 3 filler panels are included.

  • Console box works with manual 4x4 shift lever.

  • Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.

Kit Includes:

  • Console box (item no. 7160-0548)
  • Leg kit (item no. 7160-0509)
  • Armrest (item no .7110-1013)
  • Cup holder (item no. 7160-0846)
  • Mongoose motion attachment (item no. 7160-0220)
  • Note: Only the accessories listed above are included in the kit. Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included.

7170-0237-05 Specifications

Weight

28.9 lbs. (13.11 kg)

Height

16.41" (41.7 cm)

Width

13.71" (34.8 cm)

Depth

26.67" (67.7 cm)

Vehicle Compatibility:

Chevrolet

  • Silverado 1500 - 2014-2018
  • Silverado 2500 - 2015-2019
  • Silverado 3500 - 2015-2019
  • Suburban - 2015-2020
  • Tahoe - 2015-2020

GMC

  • Sierra 1500 - 2014-2018
  • Sierra 2500 - 2015-2019
  • Sierra 3500 - 2015-2019
  • Yukon - 2015-2020

Mounting Space:

  • Horizontal section: 8" (20.3 cm)
  • Vertical angled section: 7.5" (19.1 cm)
