Gamber-Johnson

Gamber Johnson 2014+ Ram ProMaster Pedestal System 7170-0239

Gamber Johnson Full Mount 7170-0239

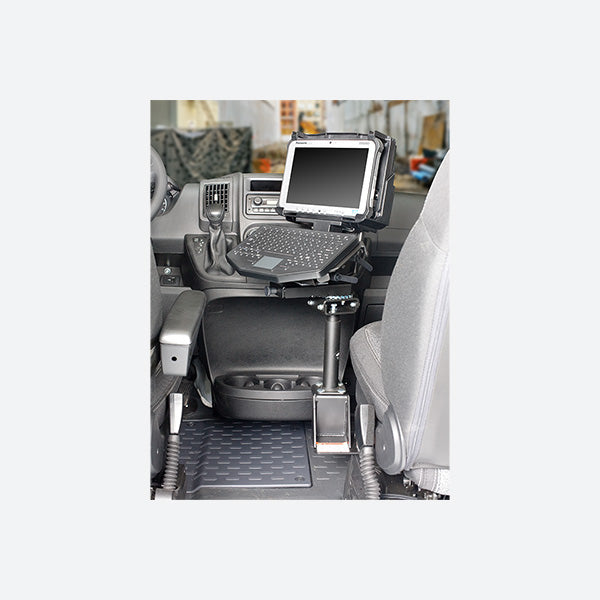

Built for 2014+ Ram ProMaster vehicles, the Gamber Johnson 7170-0239 is a complete mounting system including a 6 inch locking slide arm motion attachment and a stability brace to decrease computer and computer dock vibration. The 7170-0239 vehicle mount features the 7160-0527 base which bolts to the passenger side seat bolts and requires no drilling into the vehicle. A computer or tablet dock or cradle would be required and is dependent on the type of computer being mounted, inquire with a Rugged or Die sales rep at our contact page if you need help deciding which dock is right for you!

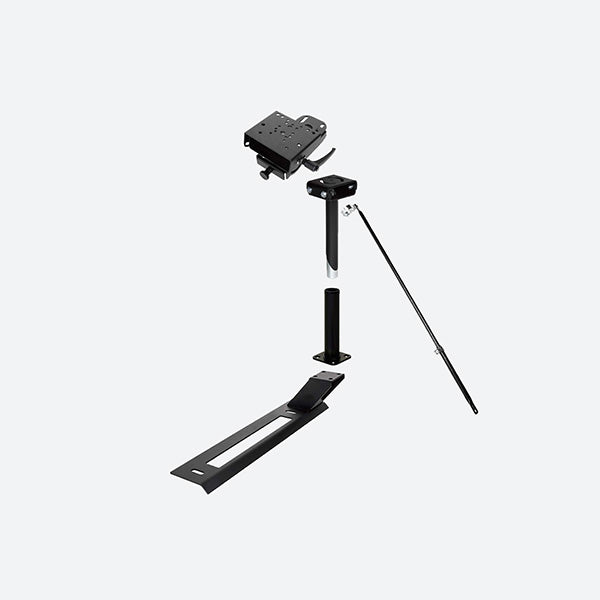

7170-0239 Features

  • Vehicle Base (Item No. 7160-0527) Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
  • Lower Tube (Item No. DS-LOWER-7) The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
  • 6-Inch Locking Slide Arm (Item No. 7160-0500) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (Item No. 7160-0231) Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration.

Vehicle Compatibility:

  • Dodge
    • Ram ProMaster - 2014+
$539.46 USD
$539.46 USD
Shipping calculated at checkout.
