Gamber Johnson TOUGHBOOK 54/55 Dock w/ LIND 120W Auto Bare Wire Leads Power Supply No RF 7170-0250

Gamber Johnson Dock 7170-0250

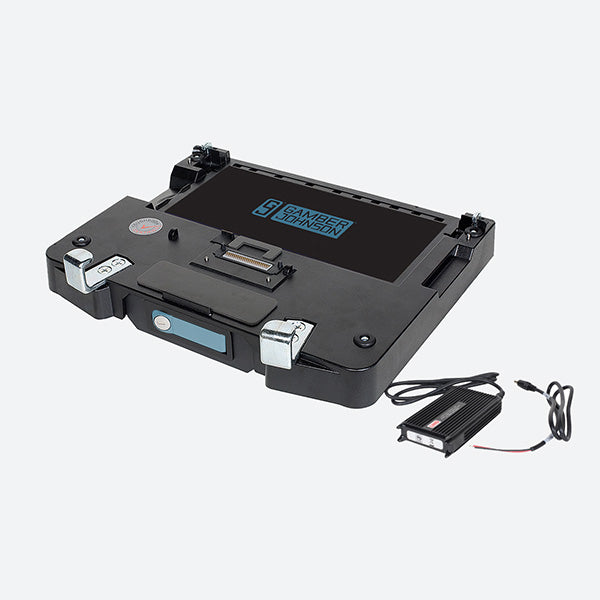

The 7170-0250 Gamber Johnson Panasonic TOUGHBOOK CF-54 and FZ-55 docking station comes with a LIND 120W auto bare wire leads power supply (Item No. 7300-0461.) This Gamber Johnson dock features the most robust selection of port replicating interface options including HDMI and VGA ports along with 2 fully power USB 3.0 ports and more, helping cut down on the wear and tear of the actual interface ports on the CF-54 or FZ-55 computer. Please note that this dock does not include any RF pass through so would not be able to connect to external antennas. Mounting equipment is needed to safely and correctly mount this computer dock in a vehicle, a Rugged or Die sales rep would be happy to help you complete your in-vehicle solution.

7170-0250 Features

• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
• Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:

                -Push the latch to release the docking connector

                -Insert computer and push latch closed to dock computer

• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:

                -Switch set toward outside of dock: Uses exterior antenna

                -Switch set to inside of the dock: Uses laptop antenna

7170-0250 Specifications

Weight

8.50 lbs. / 3.9 kg

Height

3.50 in / 8.9 cm

Width

13.48 in / 34.2 cm

Depth

11.85 in / 30.1 cm

Port Replicators:

Ethernet - RJ45
Fully Powered USB 3.0 (2) - 9 pin
VGA - D-sub 15 pin
HDMI - 19 pin
Serial - D-sub 9 pin
Input Voltage - 15.6 V DC
RF Switch

Antenna Pass-through:

No RF

Model Compatibility:

TOUGHBOOK CF-54 & FZ-55
