Gamber Johnson TOUGHBOOK 54/55 Dock w LIND 120W Auto Bare Wire Leads Power Supply Dual RF 7170-0251

Gamber Johnson Dock 7170-0251

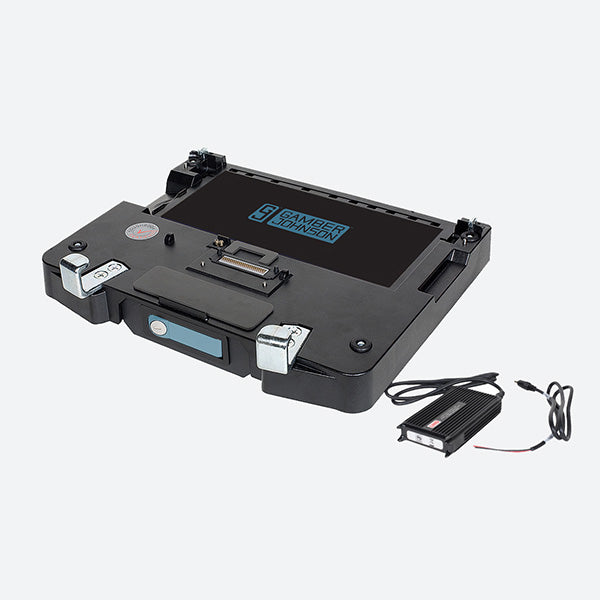

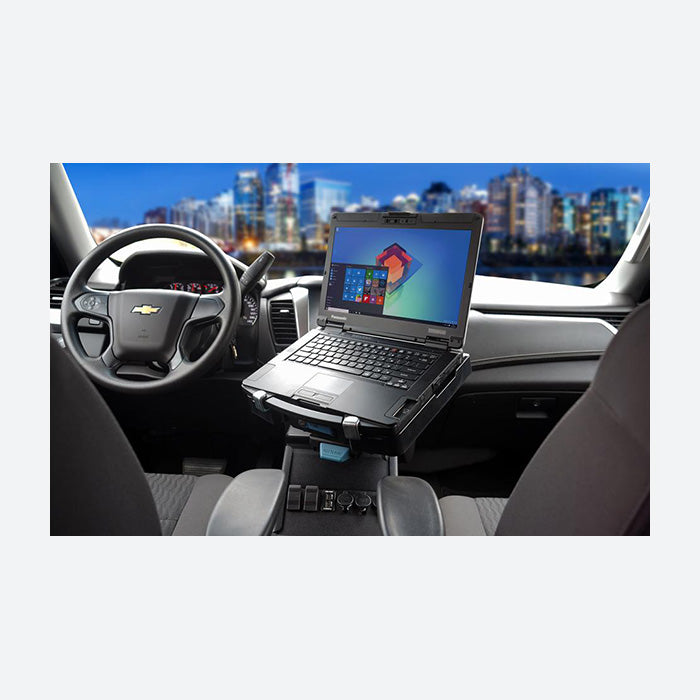

The 7170-0251 Gamber Johnson Panasonic TOUGHBOOK CF-54 and FZ-55 docking station comes with a LIND 120W auto bare wire leads power supply (Item No. 7300-0461) and features Dual RF pass through. This Gamber Johnson dock features the most robust selection of port replicating interface options including HDMI and VGA ports along with 2 fully power USB 3.0 ports and more, helping cut down on the wear and tear of the actual interface ports on the CF-54 or FZ-55 computer. Mounting equipment is needed to safely and correctly mount this computer dock in a vehicle, a Rugged or Die sales rep would be happy to help you complete your in-vehicle solution.

7170-0251 Features

• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
• Rear-facing l/O ports, integrated cable strain relief system; and convenient cable management system
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:
  • Push the latch to release the docking connector
  • Insert computer and push latch closed to dock computer
• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:
  • Switch set toward outside of dock: Uses exterior antenna
  • Switch set to inside of the dock: Uses laptop antenna

7170-0251 Specifications

Weight

8.50 lbs. / 3.9 kg

Height

3.50 in / 8.9 cm

Width

13.48 in / 34.2 cm

Depth

11.85 in / 31.0 cm

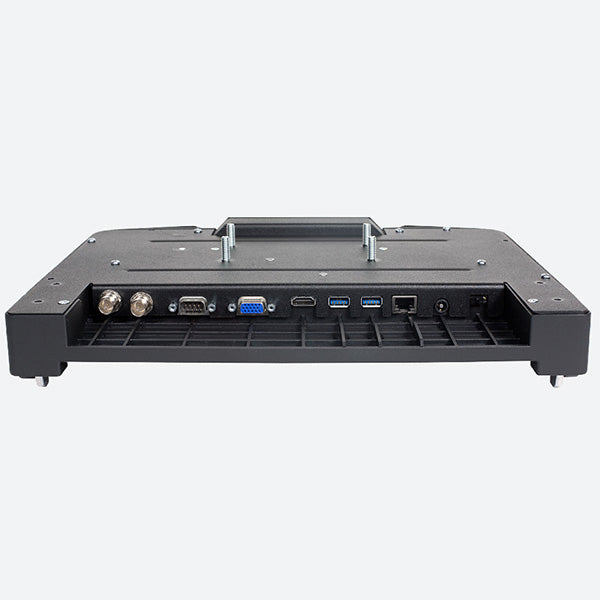

Port Replicators:

Ethernet RJ45
Fully Powered USB 3.0 (2) - 9 pin
VGA D-sub 15 pin
HDMI 19 pin
Serial D-sub 9 pin
Antenna Pass-Through (2) - TNC
Input Voltage 15.6 V DC
RF Switch

Antenna Pass-through:

Dual RF

Model Compatibility:

TOUGHBOOK CF-54 and FZ-55
