Gamber-Johnson

Gamber Johnson 2014+ Ram ProMaster City Pedestal System 7170-0500

Gamber Johnson Full Mount 7170-0500

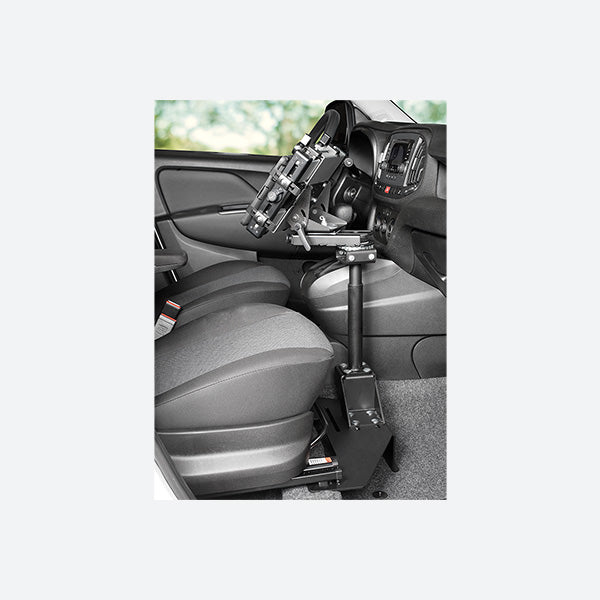

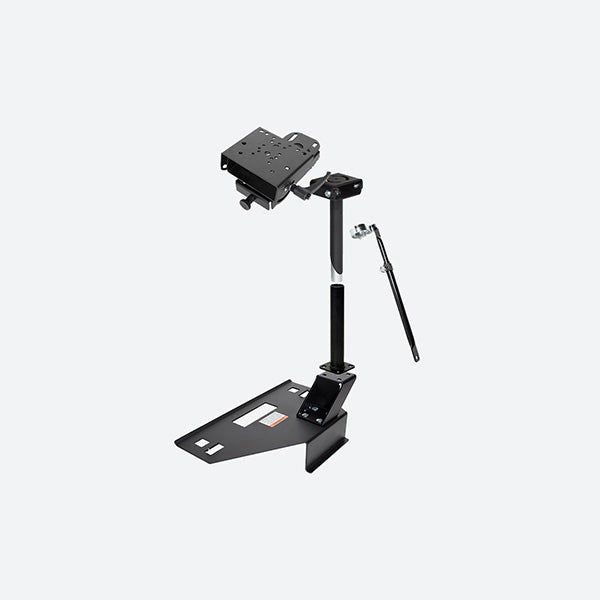

The Gamber Johnson 7170-0500 pedestal mounting system is built out of heavy gauge steel and is extremely durable. Compatible with the Ram ProMaster City from 2014 to current models, the 7170-0500 features a 6 inch locking slide arm motion attachment and a support brace to decrease vibrations and shocks from reaching the mounted computer dock. The 7170-0500 attaches to the passenger side seat bolts without the need for drilling into the vehicle. To complete the mounting solution, a computer dock or cradle would be needed to safely mount you computer; a Rugged or Die sales rep would be happy to help build you a custom quote for a complete mobile work station solution!

7170-0500 Features

  • Vehicle Base (Item No. 7160-0553) Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
  • Lower Tube (Item No. DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
  • 6-Inch Locking Slide Arm (Item No. 7160-0500) Locking Slide Arm can rotate around 360° with locking points every 15°.  Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°.  Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (Item No. 7160-0230) Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration. Must order as is. There are no substitutions.

Kit Includes:

  • Vehicle Base (Item No. 7160-0553) Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
  • Lower Tube (Item No. DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
  • Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
  • 6-Inch Locking Slide Arm (Item No. 7160-0500) Locking Slide Arm can rotate around 360° with locking points every 15°.  Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°.  Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (Item No. 7160-0230) Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration. Must order as is. There are no substitutions.

Vehicle Compatibility:

  • Ram
    • ProMaster City - 2014+
$585.61 USD
$585.61 USD
Shipping calculated at checkout.
