Gamber Johnson Dodge, Freightliner, Mercedes Sprinter Pedestal System 7170-0501

Gamber Johnson Full Mount 7170-0501

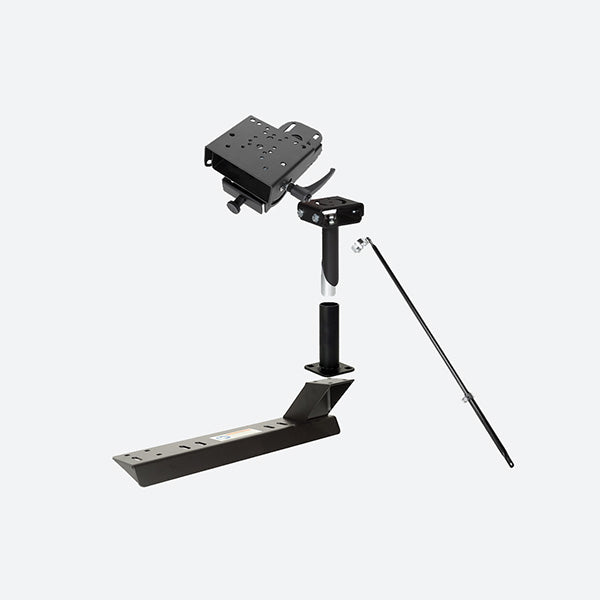

The Gamber Johnson 7170-0501 pedestal mounting system is built to be compatible witha wide range of vehicles (see features for full vehicle compatibility.) Featuring a 6 inch locking slide arm motion attachment and a support brace to decrease vibrations and shocks from reaching the mounted computer dock, the 7170-0501 attaches to the passenger side seat bolts without the need for drilling into the vehicle. The motion attachment mounting pattern is built to accommodate virtually any computer dock and includes VESA 75mm, Gamber Johnson 2x4, NEC and AMPS mounting hole patterns. If you have questions or need to complete your vehicle mounting solution with a computer dock or cradle, a Rugged or Die sales person would be happy to help!

7170-0501 Features

Kit Includes:

  • Vehicle Base (7160-0036) Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability
  • Lower Tube (DS-LOWER-5) The Lower Tube provides vertical clearance over the center console or the seat
  • Upper Pole (7160-0177) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment
  • 6-Inch Locking Slide Arm (7160-0500) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can slide up to 5.5" from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns
  • Support Brace - Long (7160-0231) Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration Must order as is. There are no substitutions.

Vehicle Compatibility:

  • 2004-2009 Dodge Sprinter
  • 2004-2015 Freightliner Sprinter
  • 2004-Present Mercedes Sprinter


$595.80 USD
$595.80 USD
Shipping calculated at checkout.
