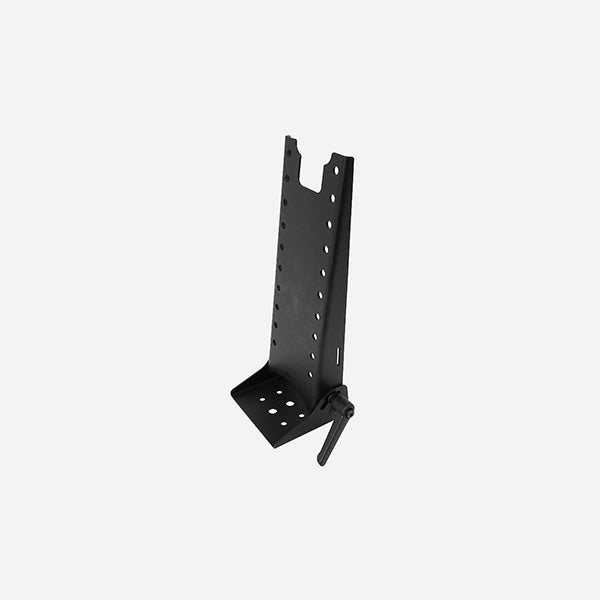

Gamber Johnson Independent Rotation Tall Tablet Display Mount 7170-0514-01

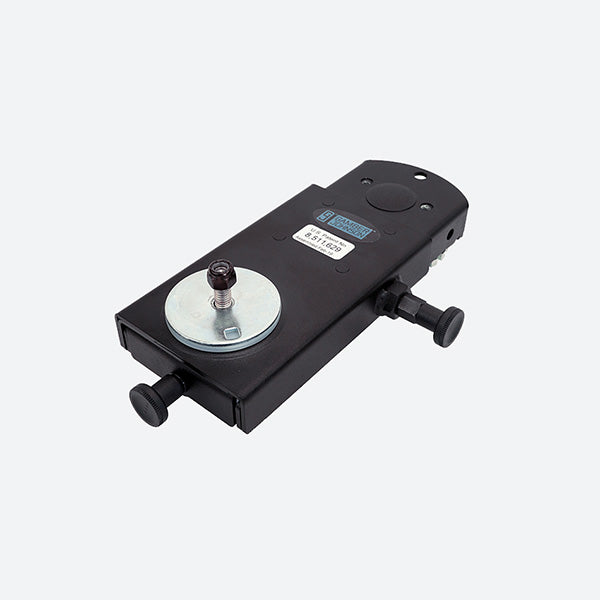

Gamber Johnson Motion Attachment 7170-0514-01

Gamber Johnson tall tablet display mount motion attachment. The tall tablet display mount provides extra height and can mount tablet (computer dock or cradle required and sold separately) and keyboard while providin separate rotation for each. Both the tablet and keyboard will be able to rotate independently, providing user customization for the optimal computer ergonomics. The Gamber Johnson tall tablet display also can tilt the mounted tablet forward and backward easily.

7170-0514-01 Features

• Can be mounted on either a Gamber-Johnson upper pole or directly to a console box (mission control system) with a “smiley face” pattern.
• Rotate the tablet and keyboard independent of each other.

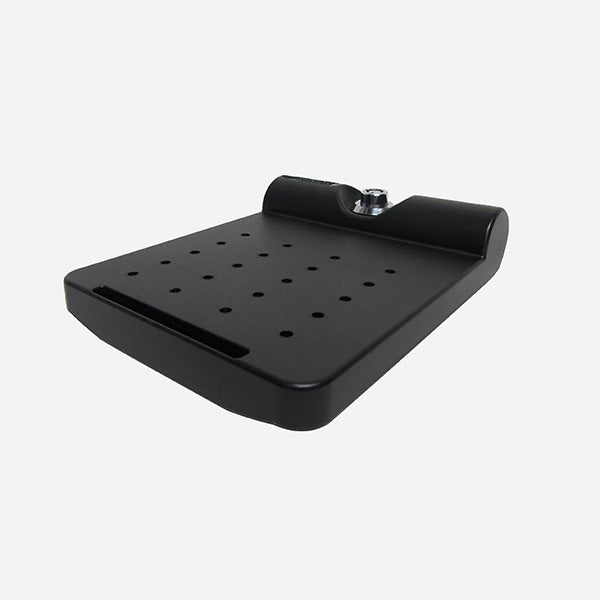

• Quick release keyboard comes with built-in optional heavy-duty key lock to keep the keyboard from being removed.
• Can be used with any tablet or tablet docking station with a VESA 75mm hole pattern.
• Can be tilted up to 160 degrees down from the dashboard providing access to controls on the instrument panel.
• Has four mounting positions to accommodate various sizes of tablets and docking stations

7170-0514-01 Specifications

Weight

15.0 lbs. / 6.8 kg

Height

14.4" to 16.0" / 36.6 cm to 40.6 cm Entire mounting system will determine overall height

Width

7.5" / 19.1 cm

Depth

14.4" / 36.6 cm
