Gamber Johnson Getac S410 Dock w/ Getac 120W Auto Power Supply TRI RF SMA 7170-0537

Gamber Johnson Dock 7170-0537

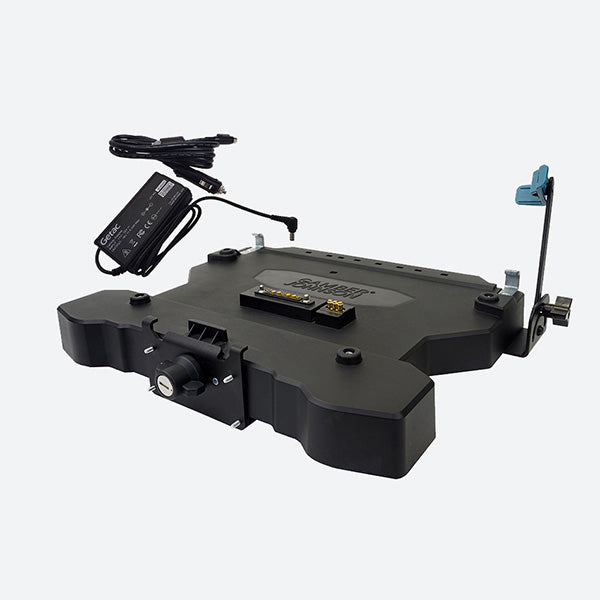

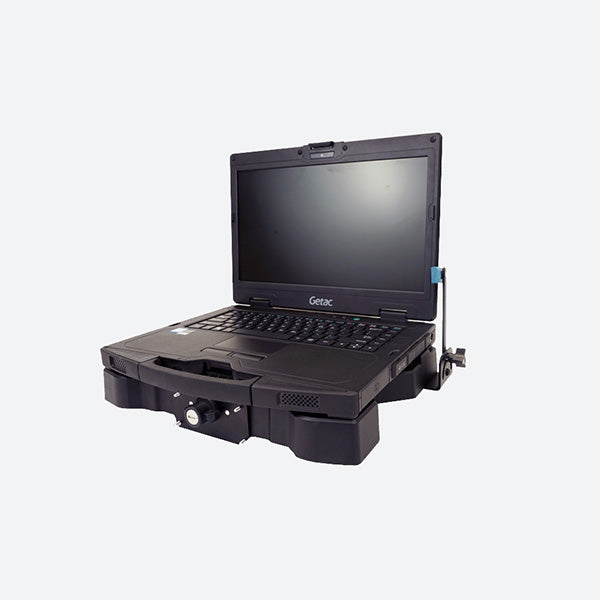

Getac S410 Docking Station with Getac 120W Auto Power Supply and TRI RF pass through with SMA connection.

7170-0537 Features

• Small footprint designed to maximize available space.
• Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system.
• Rear hooks and guide pins ensure proper alignment and docking connectivity.
• Spring-loaded docking connector to ensure connectivity in the roughest terrain.
• Plate draws back into docking station when the computer is docked.
• Docking station designed to accommodate optional VGA attachments.
• Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern.
• Rugged composite/steel construction with black powder coat finish for long-term durabililty.
• Screen support is included with the dock.
• Comes with a power supply bracket to attach the Getac power supply (Item No. 17057) to the bottom of the dock.

7170-0537 Specifications

Weight

4.47 lbs. / 2.03 kg

Height

12.39" / 31.47 cm

Width

13.84" / 35.15 cm

Depth

2.90" / 7.37 cm

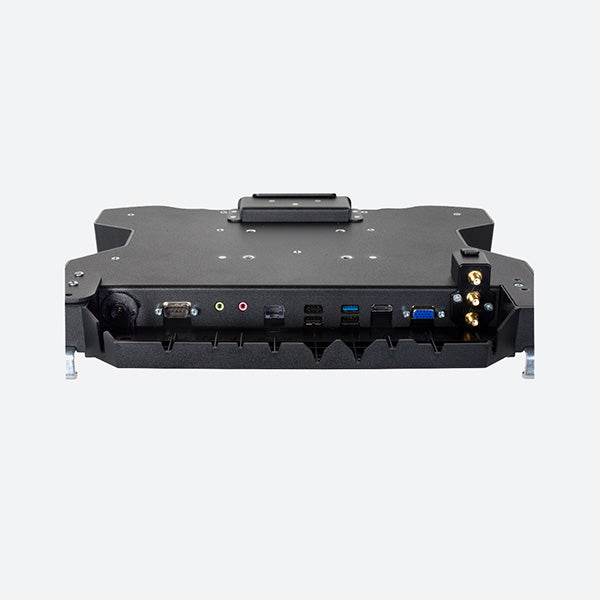

Port Replicators:

Ethernet - RJ45 USB 3.0, 9 Pin
(1) USB 2.0; 4 Pin
(3) HDMI 19 Pin Serial, D-sub, 9 Pin
Input voltage - 19 VDC
VGA D-sub, 15 Pin
Microphone/speaker
RF (SMA) antenna pass-through for GPS, WLAN and WWAN (optional)

Antenna Pass-through:

Tri RF
