Gamber-Johnson

Gamber Johnson Getac S410 Cradle w Getac 120W Auto Power Supply TRI RF SMA 7170-0539

Gamber Johnson Cradle 7170-0539

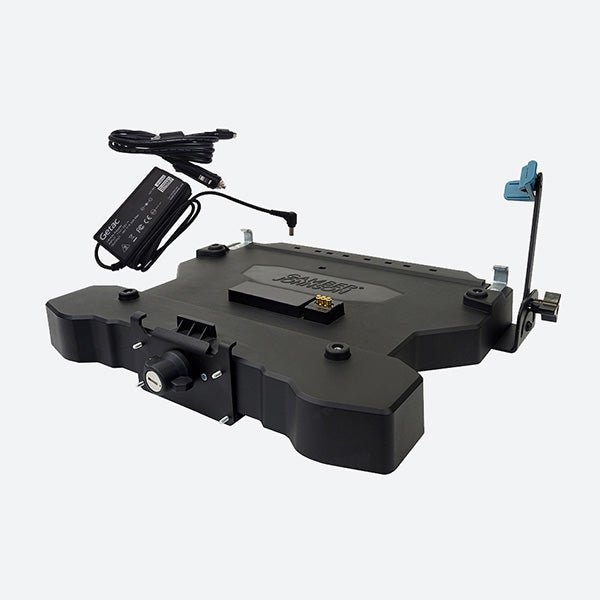

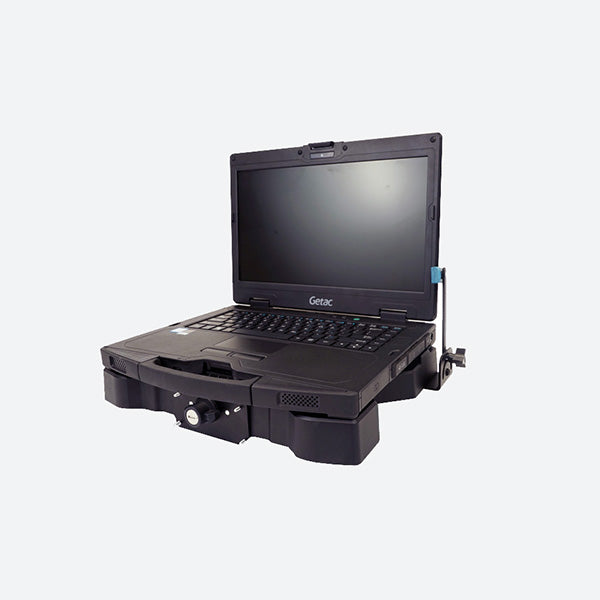

Gamber Johnson computer cradle compatible with the Getac S410 rugged computer. This cradles does not provide port replication or power pass through but does include Tri RF pass as well as a Getac 120W auto power supply with a cigarette lighter adapter. Tri RF pass through ports are SMA connections. The Getac 120W power supply would plug directly into the S410. If you have any questions about this computer cradle or need help developing a complete vehicle mounting solution for your rugged Getac S410, a Rugged or Die sales rep would be happy to help!

7170-0539 Features

  • Small footprint designed to maximize available space.
  • Rear hooks and guide pins ensure proper alignment and docking connectivity.
  •  Plate draws back into docking station when the computer is docked.
  • Docking station designed to accommodate optional VGA attachments.
  • Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern.
  • Rugged composite/steel construction with black powder coat finish for long-term durability.
  • Screen support is included with the dock.

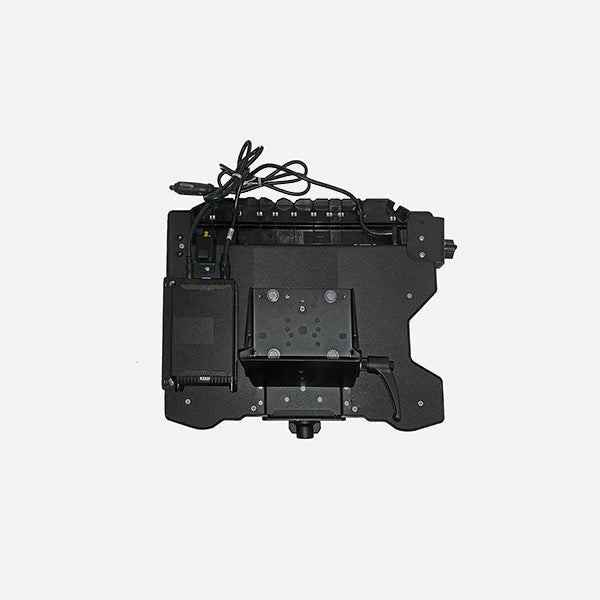

  • Comes with a power supply bracket to attach the Getac power supply (item no. 17057) to the bottom of the dock.

7170-0539 Specifications

Weight

4.47 lbs. / 2.03 kg

Height

12.39" / 31.47 cm

Width

13.84" / 35.15 cm

Depth

2.90" / 7.37 cm

Power Supply:

  • Includes Getac 120W Automobile Power Adaptor (item no. 17057)

Testing Specifications:

  • RoHS, FCC C-Tick
  • MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage)
  • Vibration/shock testing: MIL-STD 810G 514.5
  • Docking mechanism tested: 30,000 cycles
  • SAE Standard J1455 Crash Test
$600.27 USD
$600.27 USD
Shipping calculated at checkout.
