Gamber-Johnson

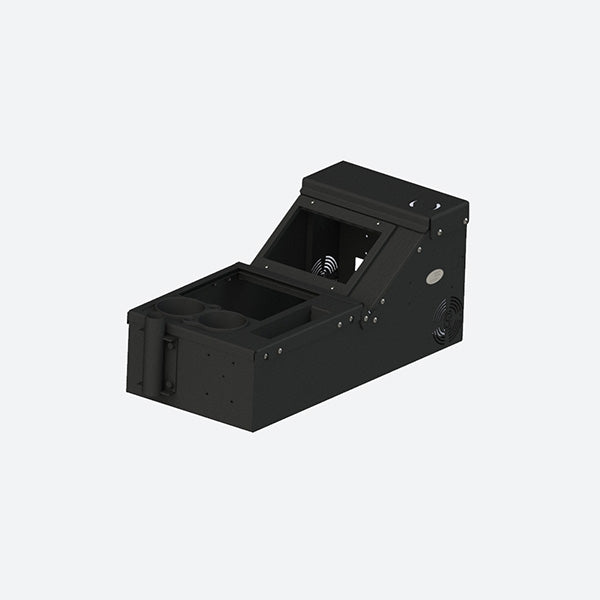

Gamber Johnson Wide Body Console w Cup Holder Pocket and Vertical Surface Mount 7170-0567-03

Gamber Johnson Console Kit 7170-0567-03

Gamber Johnson wide body console kit designed to work with a variety of vehicle make and models. Please confirm your vehicle mounting space and console dimensions for accuracy! Console box has a sloped front mounting area to accommodate a number of siren, light, radios and other controllers. This Gamber Johnson console also includes a smiley face mounting pattern to allow computer motion attachment mounting directly to the console. Console kit includes console box, cup holder, storage pocket, and vertical surface mount. Other accessories are available for this console such as motion attachments, computer docks or cradles, armrests and more; if you have other needs or questions, please inquire with a Rugged or Die sales rep for further assistance!

7170-0567-03 Features

  • Low profile, universal console with sloped front mounting area.

  • Designed to work with top plate/tunnel plate and leg kits.

  • Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.

  • PEM’s for mounting mic clip (item no. 7120-0723) on both sides.

  • Side vented openings for air flow or mounting a speaker inside the console box.

  • PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430).

  • Front plate of console underneath the dash area has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes.

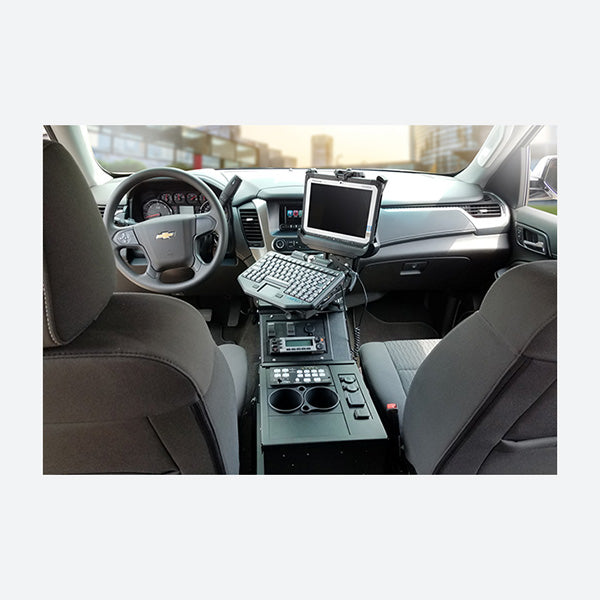

  • Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access.

  • Fully welded construction for long term product life span.

  • 3 faceplates and 3 filler panels are included.

  • Box ships fully assembled (except for accessories).

Kit Includes:

  • Wide body console box (item no. 7160-0894)
  • Internal cup holder (item no. 7160-0846)
  • Vertical surface mount with hardware
  • 2-inch wide pocket (item no. 7160-0924)

7170-0567-03 Specifications

Weight

28.35 lbs. / 12.86 kg

Height

10.88" / 27.6 cm

Width

11.83" / 30.1 cm

Depth

25.75" / 65.4 cm

$568.02 USD
$568.02 USD
Shipping calculated at checkout.
