Gamber-Johnson

Gamber Johnson Wide Body Console w Cup Holder Pocket Armrest and Mongoose 7170-0567-04

Gamber Johnson Console Kit 7170-0567-04

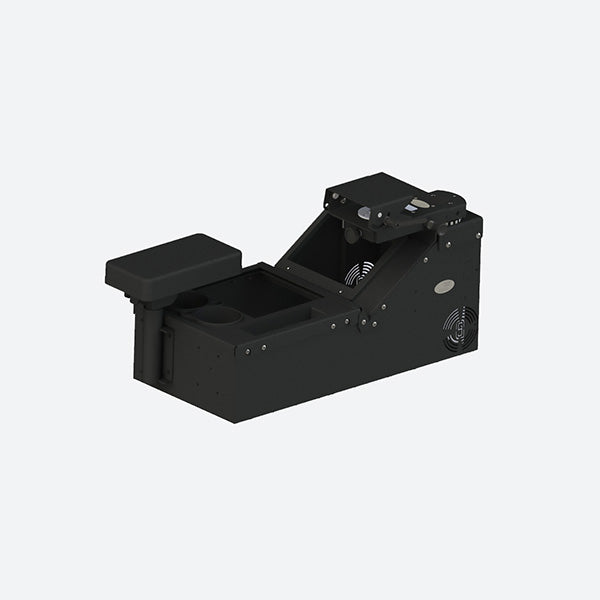

Gamber Johnson wide body console kit designed to work with a variety of vehicle make and models. Please confirm your mounting space and console dimensions for accuracy! Console box has a sloped front mounting area to accommodate a number of siren, light, radios and other controllers. This Gamber Johnson console also includes a smiley face mounting pattern to allow computer motion attachment mounting directly to the console. Console kit includes console box, cup holder, storage pocket, armrest and 6 inch locking slide arm for versatile computer dock or cradle positioning.

7170-0567-04 Features

  • Low profile, universal console with sloped front mounting area.

  • Designed to work with top plate/tunnel plate and leg kits.

  • Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.

  • PEM’s for mounting mic clip (item no. 7120-0723) on both sides.

  • Side vented openings for air flow or mounting a speaker inside the console box.

  • PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430).

  • Front plate of console underneath the dash area has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes.

  • Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access.

  • Fully welded construction for long term product life span.

  • 3 faceplates and 3 filler panels are included.

  • Box ships fully assembled (except for accessories).

Kit Includes:

  • Wide body console box (item no. 7160-0894)
  • Internal cup holder (item no. 7160-0846)
  • External break-away armrest (item no. 7160-0429)
  • Mongoose motion attachment (item no. 7160-0220)
  • 2-inch wide pocket (item no. 7160-0924)

7170-0567-04 Specifications

Weight

39.35 lbs. / 17.85 kg

Height

15.52" / 39.4 cm

Width

11.83" / 30.1 cm

Depth

25.75" / 65.4 cm

$984.81 USD
$984.81 USD
Shipping calculated at checkout.
