Gamber Johnson Wide Body Console w Cup Holder Pocket Armrest and 6-in. Locking Slide Arm 7170-0567-05
Gamber Johnson Console Kit 7170-0567-05

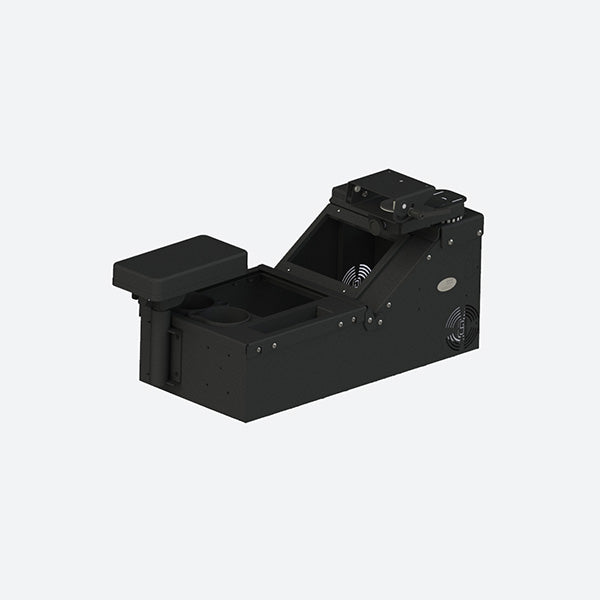

Gamber Johnson wide body console kit designed to work with a variety of vehicle make and models. Please confirm your mounting space and console dimensions for accuracy! Console box has a sloped front mounting area to accommodate a number of siren, light, radios and other controllers. This Gamber Johnson console also includes a smiley face mounting pattern to allow computer motion attachment mounting directly to the console. Console kit includes console box, cup holder, storage pocket, armrest and 6 inch locking slide arm for versatile computer dock or cradle positioning.
7170-0567-05 Features
- Low profile, universal console with sloped front mounting area
- Designed to work with top plate/tunnel plate and leg kits
- Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension
- PEM’s for mounting mic clip (item no. 7120-0723) on both sides
- Side vented openings for air flow or mounting a speaker inside the console box.
- PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430)
- Front plate of console underneath the dash area has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes
- Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access
- Fully welded construction for long term product life span
- 3 faceplates and 3 filler panels are included
- Box ships fully assembled (except for accessories)
Kit Includes:
- Wide body console box (item no. 7160-0894)
- Internal cup holder (item no. 7160-0846)
- 6-inch locking slide arm (item no. 7160-0500)
7170-0567-05 Specifications
Weight
37.36 lbs / 16.9 kg
Height
15.47 in / 39.3 cm
Width
11.83 in / 30.1 cm
Depth
25.75 in / 65.4 cm
