Gamber-Johnson

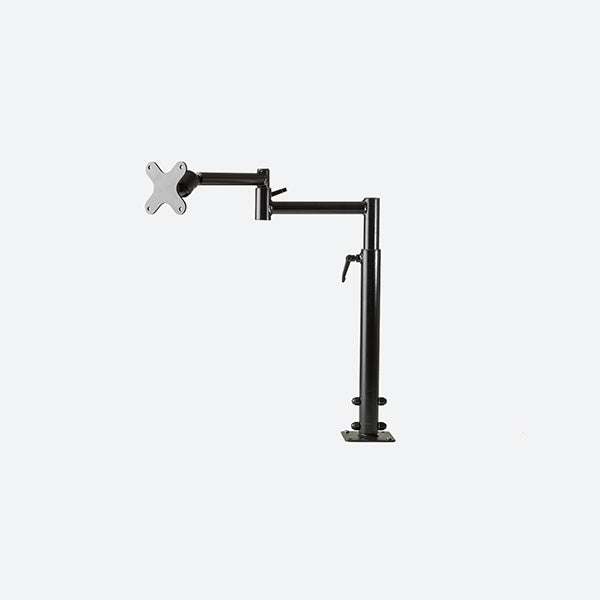

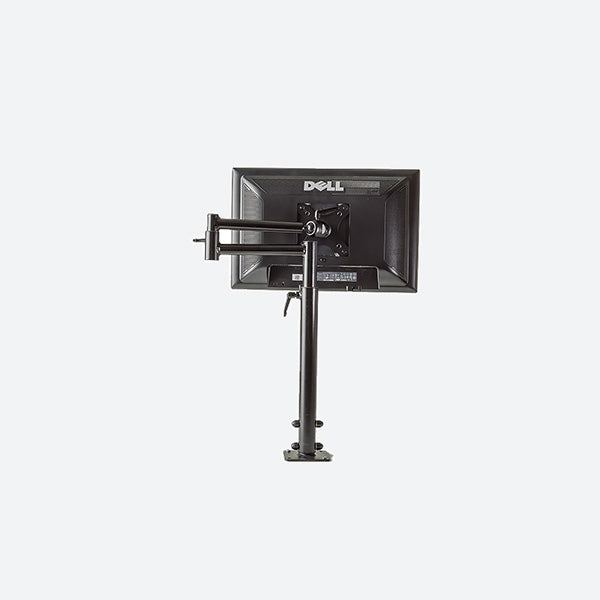

Gamber Johnson Zirkona Height-Adjustable Extending Desktop Mount 7170-0590

Gamber Johnson Full Mount 7170-0590

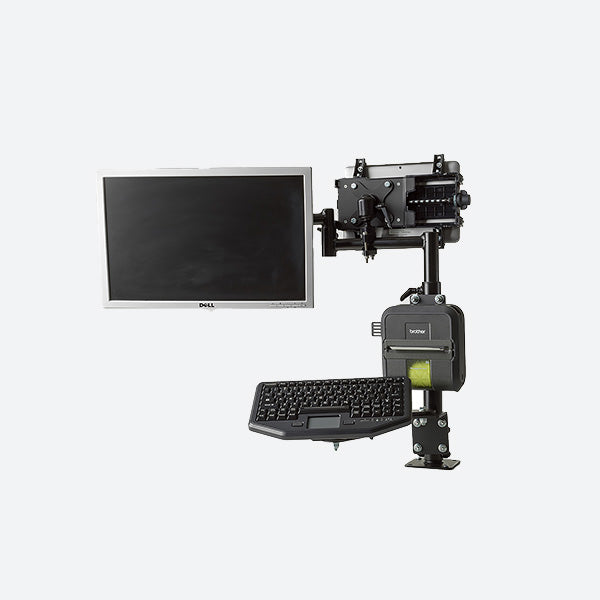

Gamber Johnson Zirkona extending desktop full mounting solution. Height-adjustable, this Gamber Johnson mounting kit is perfect to attach monitors or other peripherals at optimal height and placement for user access and optimal ergonomics. Zirkona knuckles and arms allow many points of articulation and extension.

7170-0590 Features

  • 4" (10.2 cm) square base x 3.75" (9.5 cm) height base with VESA 75 mounting hole pattern
  • 16" (40.6cm) height-adjustable pedestal; spans 16" - 24" (40.6 cm - 61.0 cm)
  • Articulating arms extend 16.5" (41.9 cm) from the main pedestal
  • Tension handles lock pedestal height and articulated arms in place
  • Articulated joiner with tension handle - position display for the proper viewing angle
  • VESA 75/100mm mounting adapter (fits most displays)
  • Anodized aluminum and steel with black powder coat finish

Kit Includes:

  • Floor mount base (7110-1316, formerly 17240)
  • Dual articulating arms with adjustable height (7110-1246 formerly 17241)
  • Medium two-down joiner  (7110-1259)
  • VESA 75/100mm adapter plate (14140)
  • Assembly required

7170-0590 Specifications

Weight

5.35 lbs. / 2.4 kg

Height

16 in - 24 in / 40.6 cm - 61.0 cm

Width

10 in - 16.5 in / 25.4 cm - 41.9 cm

Depth

4.0 in / 10.2 cm

Notes: Recommend use of LOCTITE® 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466

Maximum weight capacity: Vibration environment - joiner holds up to 6 lbs. (2.8kg) Static environment - joiner holds up to 33 lbs (15kg)

Note: Extension tube will lower the overal payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.

$179.82 USD
$179.82 USD
Shipping calculated at checkout.
