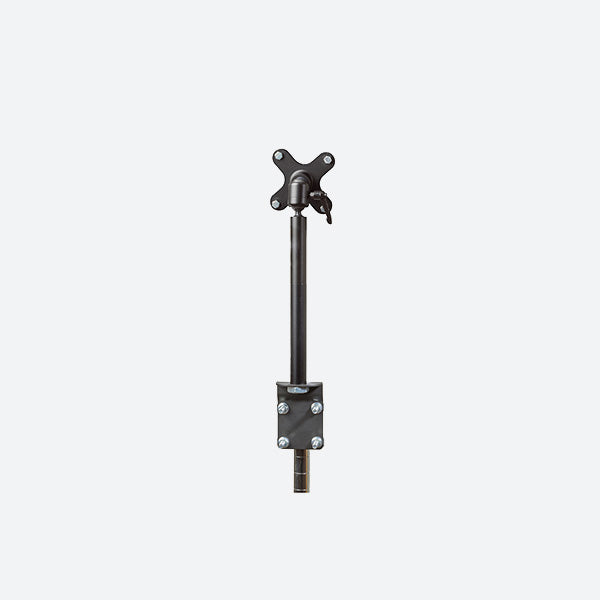

Gamber Johnson Medium Zirkona Pole Mount 7170-0593
Gamber Johnson Full Mount 7170-0593

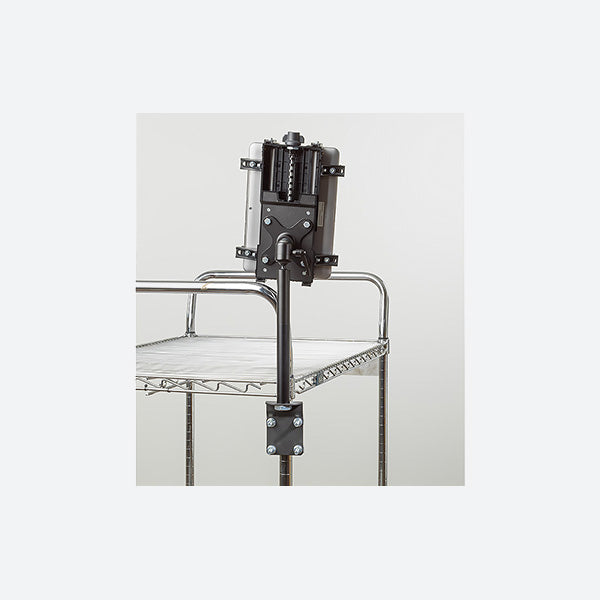

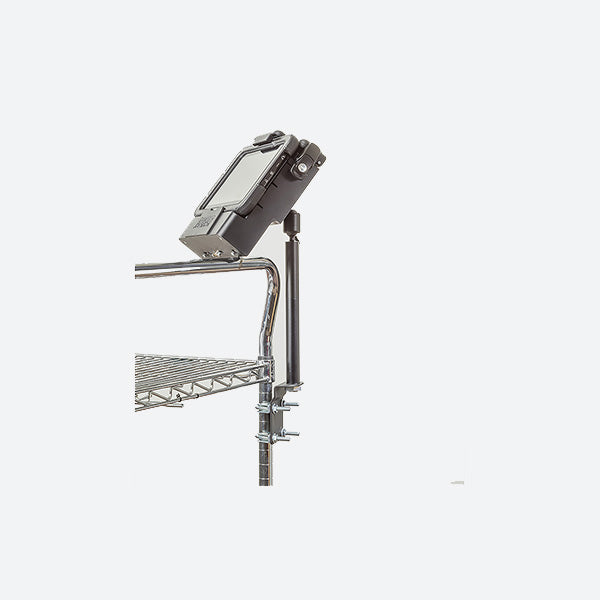

Gamber Johnson Zirkona pole mount is designed to be a mounting solution that can install a tablet on many different poles and pipes including carts. Zirkona articulating knuckle allows the tablet to be positioned at the optimal angle from mounting solution. A computer dock or cradle would be required to complete the mounting solution.
7170-0593 Features
- Pipe/channel clamp (fits pipe up to 1.75 in / 4.4 cm diameter pipe)
- Articulated connector with tension handle - position display to the proper angle for best viewing
- VESA 75mm mounting adapter - fits most displays
- Clamp is made of steel with black powder coat finish
- Articulated connector is made of anodized aluminum with black finish 100mm extension (included) to increase the range of operation
Kit Includes:
- Pole Clamp (7160-0440)
- Zirkona Medium Joiner (7110-1235, formerly 7160-0287)
- Threaded Adapter (14145)
- 100mm Extension (14142)
- VESA 75mm Adapter Plate (14139)
- Assembly required
7170-0593 Specifications
Weight
Weight: 1.2 lbs / 0.54 kg
Height
Height: 7.0 in / 17.8 cm
Width
Width: 3.75 in / 9.5 cm
Depth
Depth: 6.0 in / 15.2 cm
Notes: Recommend use of LOCTITE® 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466 Maximum Weight
Capacity: Vibration environment - joiner holds up to 6 lbs. (2.8kg) Static environment - joiner holds up to 33 lbs (15kg)
Note: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.
