Gamber-Johnson

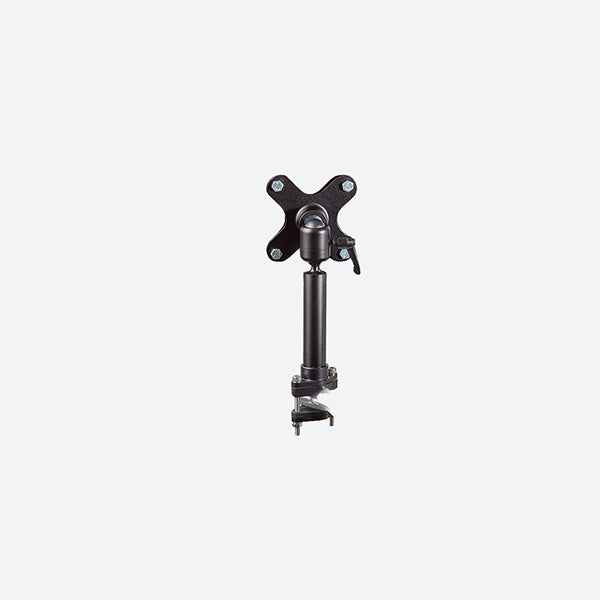

Gamber Johnson Small Zirkona Pole Mount 7170-0594

Gamber Johnson Full Mount 7170-0594

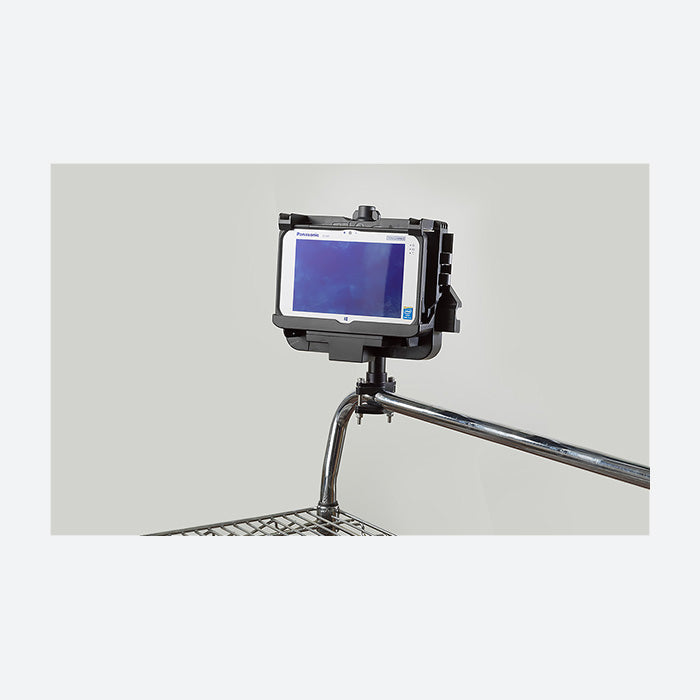

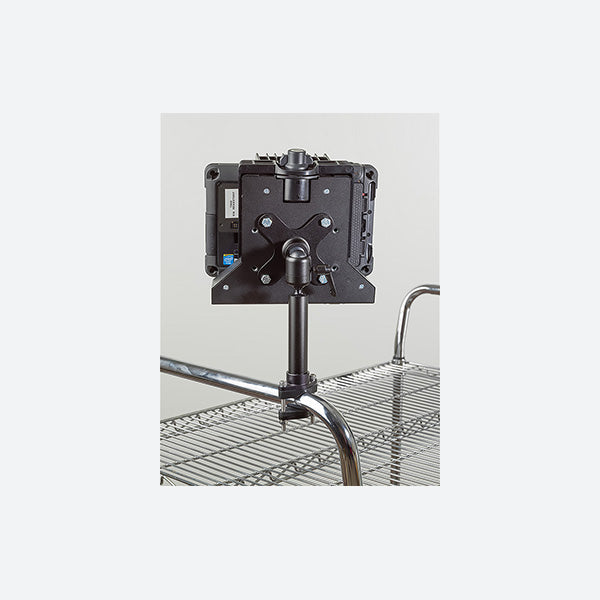

Gamber Johnson Zirkona small pole mount is designed to be a mounting solution that can install a tablet on many different poles and pipes including carts.. Zirkona articulating knuckle allows the tablet to be positioned at the optimal angle from mounting solution. A computer dock or cradle would be required to complete the mounting solution.

7170-0594 Features

  • Pipe/channel clamp - fits pipe from 0.59" (1.5 cm) to 1.18" (3.0 cm) diameter
  • Articulated joiner with tension handle - position display for the proper viewing angle
  • VESA 75mm mounting adapter - fits most displays
  • 100mm extension (included) to increase the range of operation
  • Anodized aluminum with black finish
  • Assembly required

Kit Includes:

  • Pole clamp (7110-1231)
  • Small joiner (7110-1234)
  • 100mm extension (14142)
  • Threaded adapter (14145)
  • VESA 75mm adapter plate (14139)

7170-0594 Specifications

Weight

1.0 lbs. / 0.45 kg

Height

3.75" / 9.5 cm

Width

3.75" / 9.5 cm

Depth

5.25" / 13.3 cm

Notes: Recommend use of Loctite® 9460, 9461, or 9466 on all M20 size threads (Loctite not included) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466

Maximum weight capacity: Vibration environment - joiner holds up to 3 lbs. (1.4kg) Static environment - joiner holds up to 22 lbs (10kg)

Note: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner. The small joiner should not be used for mounting TV screens.
