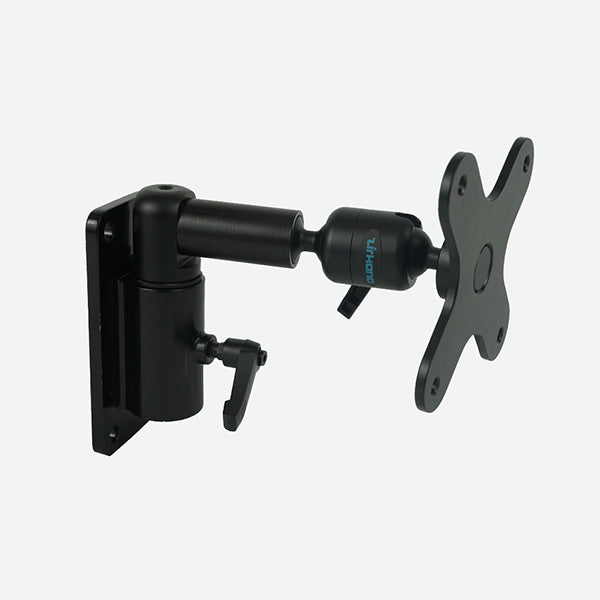

Gamber Johnson Zirkona Light-Duty Rotating Wall Mount 7170-0595
Gamber Johnson Full Mount 7170-0595
Gamber Johnson Zirkona light-duty wall mount is designed to be a low profile mounting solution that can install a tablet on any flat surface. Zirkona articulating knuckle allows the tablet to be positioned at the optimal angle from mounting solution. A computer dock or cradle would be required to complete the mounting solution.
7170-0595 Features
- Wall-mount solution for a small display, tablet, or handheld
- 4.25" x 1.87" (12.1 cm x 4.7 cm) mounting plate with 1.37" x 3.74" (3.5 cm x 9.5 cm) hole pattern
- 2" (50mm) extension screws into the Zirkona Quick Release Round Plate pivot pin (7110-1225) with a threaded adapter (14145) creating a strong connection and strong solution
- Articulated joiner with tension handle - position display to the proper angle and tighten handle
- VESA 75mm mounting adapter (fits most displays)
- Rugged, black anodized aluminum
- Add a 50mm, 100mm, or 150mm extension to increase the range of operation
Kit Includes:
- Rotating Wall Mount (7110-1227)
- Male Thread Adapter (14145)
- 2 in / 50mm Extension (14141)
- Small Joiner (7110-1234)
- VESA 75mm Device Plate (14139)
- Assembly required
7170-0595 Specifications
Weight
1.1 lbs. / 0.5 kg
Height
4.75" / 12.1 cm
Width
1.87" / 4.7 cm
Depth
7.5" / 19.1 cm
Notes: Recommend use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466
Maximum weight capacity: Vibration environment - holds up to 3 lbs. (1.4kg) Static environment - holds up to 22 lbs (10kg)
Note: Extension tube will lower the overal payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner. The small joiner should not be used for mounting TV screens.
