Gamber Johnson Zirkona Height-Adjustable Extending Wall Mount 7170-0597

Gamber Johnson Full Mount 7170-0597

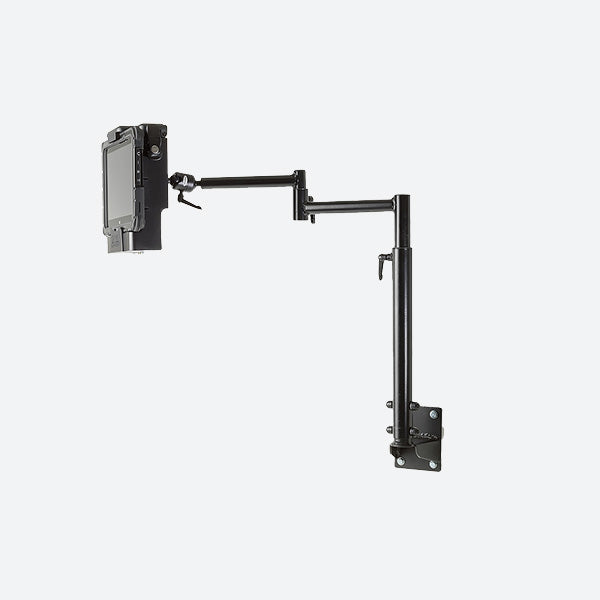

Gamber Johnson Zirkona height adjustable wall mount is designed to be a low profile mounting solution that can install a tablet on any flat surface. Zirkona articulating knuckle and arm allows the tablet to be positioned at the optimal angle and distance from mounting solution. A computer dock or cradle would be required to complete the mounting solution.

7170-0597 Features

• Wall-mount solution for a large display or tablet
• 4" x 5" (10.2 cm x 12.7 cm) steel base with 3" x 4" (7.6 cm x 10.2 cm) mounting hole pattern
• 16" (40.6 cm) height-adjustable pedestal; spans 16" - 24" (40.6 cm - 61.0 cm)
• Articulating arms extend 16.5" (41.9 cm) from the main pedestal
• Tension handles lock pedestal height and articulated arms in place
• Articulated joiner with tension handle - position display to the proper angle and tighten handle

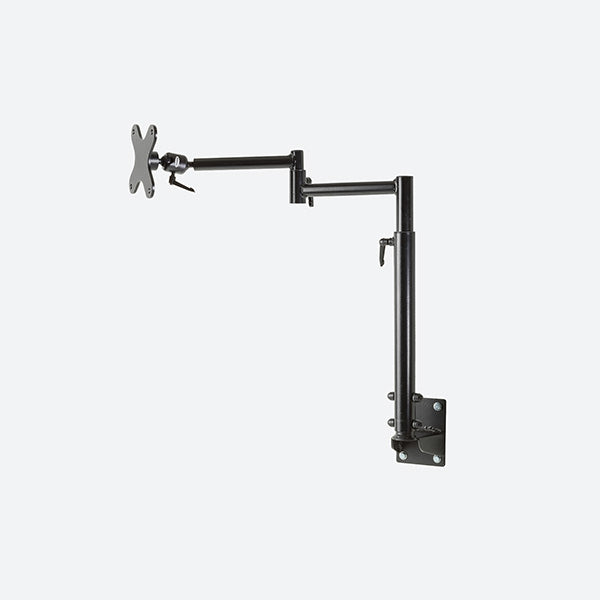

• VESA 75/100mm mounting adapter (fits most displays)
• Anodized aluminum and steel with black finish

7170-0597 Specifications

Weight

6.55 lbs / 3.0 kg

Height

16 in - 24 in / 40.6 cm - 61.0 cm

Width

10 in - 16.5 in / 25.4 cm - 41.9 cm

Depth

4.0 in / 10.2 cm

Notes: Recommend use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466

Maximum Weight Capacity: Vibration environment - holds up to 6 lbs. (2.8kg) Static environment - holds up to 33 lbs (15kg)

Note: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.
