Gamber Johnson TOUGHBOOK 20/G2 Dock w/ LIND 90W Auto Power Adapter 7170-0681-00
Gamber Johnson Dock 7170-0681-00

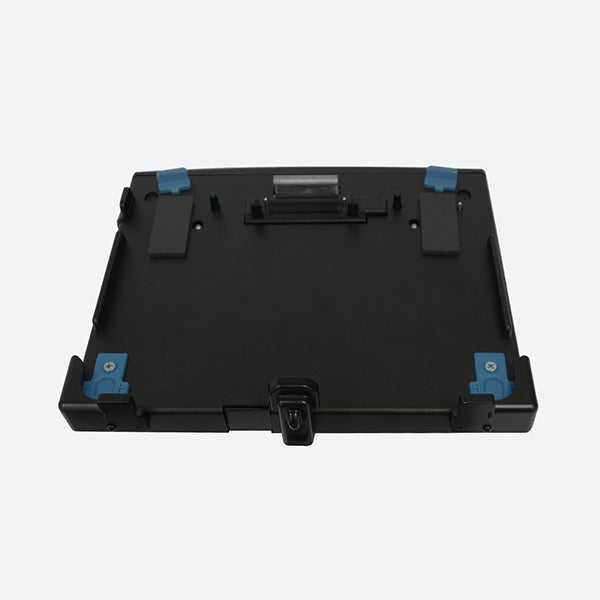

Gamber Johnson vehicle dock built for the Panasonic TOUGHBOOK CF-20 and FZ-G2 while in laptop mode (with keyboard attached.) This FZ-G2 docking station does not come with any RF pass through so would not be able to connect to external antennas. The Gamber Johnson kit 7170-0681-00 includes the dock and a LIND 11-16V auto power adapter with bare wire leads (part number 7300-0460.) If you are in the market for a vehicle dock that is compatible with the FZ-G2 in tablet mode or for the FZ-G2 TOUGHBOOK itself, please contact our Rugged or Die technology experts at our contact us page!
7170-0681-00 Features
- Compatible with the Panasonic TOUGHBOOK CF-20 and FZ-G2 2-in-1 tablet computers with attachable keyboards
- Panasonic TOUGHBOOK Certified utilizing Panasonic Certified electronics
- Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
- Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
- Can be used in either laptop or tablet orientation.
- Composite/aluminum design for reduced weight and durability
- Designed with rounded edges to enhance personal safety
- Rear-facing I/O ports, integrated cable strain relief and cable management system
- Floating docking connector for reliable connectivity in the most rugged environments
- Keyed lock for theft deterrence, NOTE: The lock secures the TOUGHBOOK CF-20 keyboard and tablet; but only secures the keyboard for the FZ-G2.
- VESA 75 mm mounting pattern

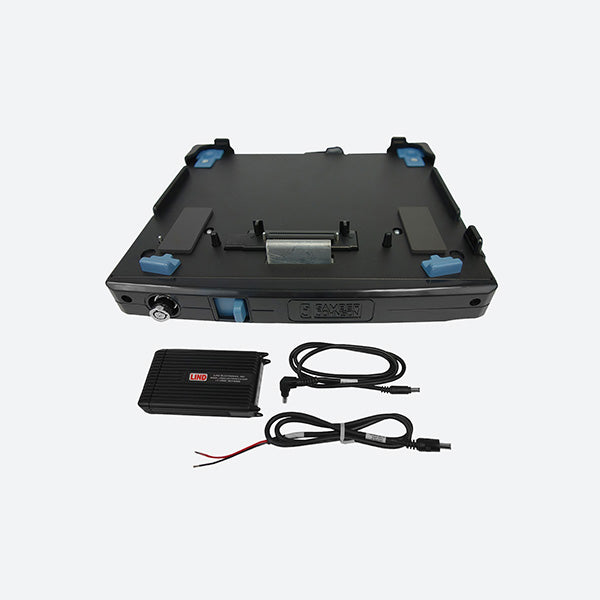

Kit Includes:
- Panasonic TOUGHBOOK CF-20 and FZ-G2 Docking Station
- Mounting Hardware
- LIND 11-16V Auto Power Adapter
- Installation Instructions
7170-0681-00 Specifications
Weight
5 lbs / 2.27 kg
Height
2.5 in / 6.35 cm
Width
11.6 in / 29.46 cm
Depth
12.1 in / 30.73 cm
Power Supply:
- Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
Testing Specifications:
- TOUGHBOOK Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE, C-TICK, UKCA
- SAE J1455 Shock Crash Hazard Test
Port Replicators:
- Panasonic certified electronics
- (2) USB 3.0 - 9 pin
- (1) HDMI - 19 pin
- (1) Serial - D-sub 9-pin
- (1) Ethernet - RJ45
- (1) VGA D-sub -15-pin
- Antenna switch
- Power supply input - DC 15.6V-16V
