Gamber Johnson TOUGHBOOK 20/G2 Dock w LIND 90W Auto Power Adapter Dual RF 7170-0681-02
Gamber Johnson Dock 7170-0681-02

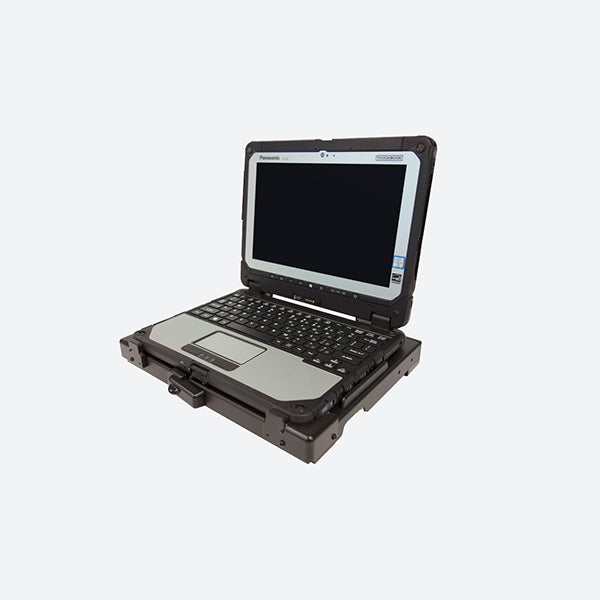

Gamber Johnson vehicle dock built for the Panasonic TOUGHBOOK CF-20 and FZ-G2 while in laptop mode (with keyboard attached.) This FZ-G2 docking station comes with Dual RF pass through allowing a user to connect external antennas to boost the TOUGHBOOK internal signals such as 4G LTE or GPS. The Gamber Johnson kit 7170-0681-02 includes the dock and a LIND 11-16V auto power adapter with bare wire leads (part number 7300-0460.) If you are in the market for a vehicle dock that is compatible with the FZ-G2 in tablet mode or for the FZ-G2 TOUGHBOOK itself, please contact our Rugged or Die technology experts at our contact us page!
7170-0681-02 Features
- Compatible with the Panasonic TOUGHBOOK CF-20 and FZ-G2 2-in-1 tablet computers with attachable keyboards
- Panasonic TOUGHBOOK Certified utilizing Panasonic Certified electronics

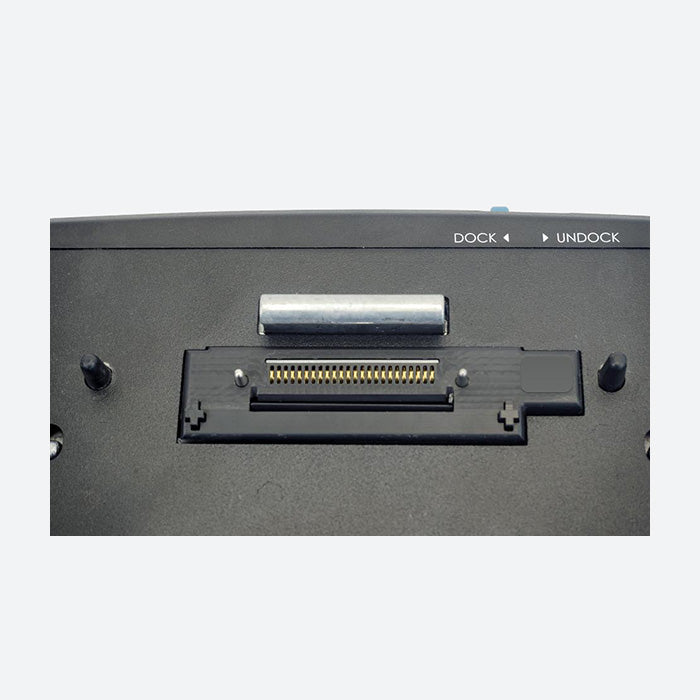

- Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
- Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
- Can be used in either laptop or tablet orientation.
- Composite/aluminum design for reduced weight and durability
- Designed with rounded edges to enhance personal safety
- Rear-facing I/O ports, integrated cable strain relief and cable management system
- Access to all notebook control buttons and ports while the notebook is docked
- Floating docking connector for reliable connectivity in the most rugged environments
- Keyed lock for theft deterrence
- VESA 75 mm mounting pattern

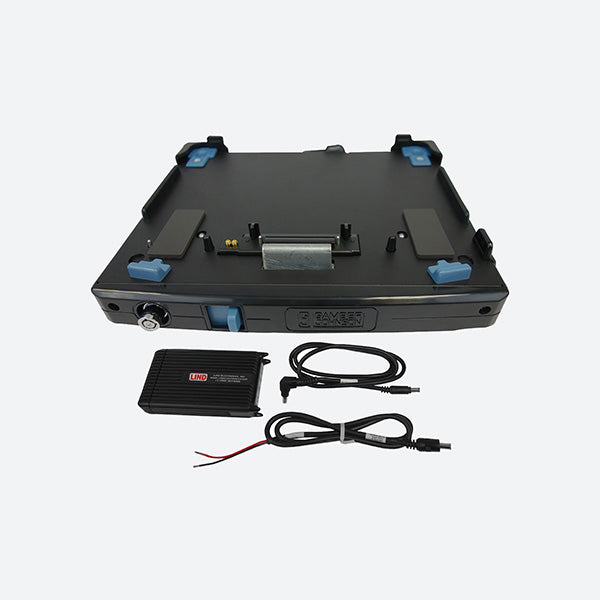

Kit Includes:
- Panasonic TOUGHBOOK CF-20 and FZ-G2 Docking Station
- Mounting Hardware
- LIND 11-16V Auto Power Adapter
- Installation Instructions
7170-0681-02 Specifications
Weight
5 lbs / 2.27 kg
Height
2.5 in / 6.35 cm
Width
11.6 in / 29.46 cm
Depth
12.1 in / 30.73 cm
Port Replicators:
Panasonic certified electronics
(2) USB 3.0 - 9 pin
(1) HDMI - 19 pin
(1) Serial - D-sub 9-pin
(1) Ethernet - RJ45
(1) VGA D-sub -15-pin
Antenna switch
Dual RF Pass-Through (optional) - TNC
Power supply input - DC 15.6V-16V
Antenna Pass-through:
Dual RF
