Gamber Johnson TOUGHBOOK 33 Laptop Dock NO RF w/DC Adapter 7170-0683-00
Gamber Johnson Dock 7170-0683-00

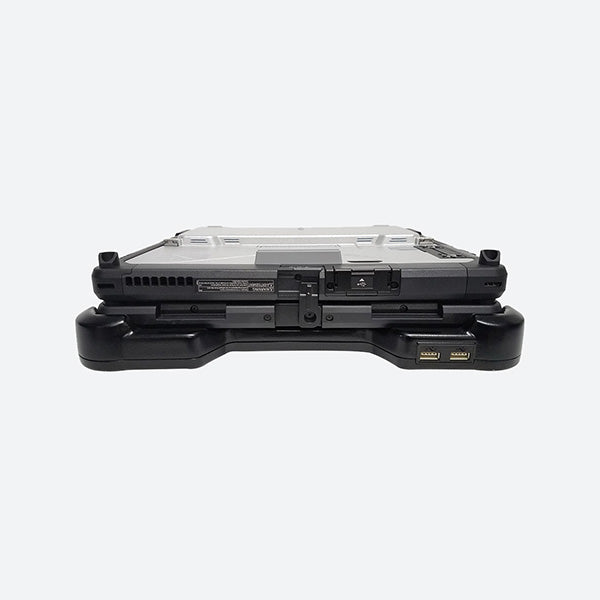

The Gamber Johnson 7170-0683-00 vehicle dock is designed exclusively for the Panasonic TOUGHBOOK CF-33 in laptop mode (with premium keyboard attached.) This CF-33 dock features full port replication which features a number of ports including 2 USB 3.0 ports, 4 USB 2.0 ports, 2 Ethernet ports, a serial 9 pin port, VGA port, HDMI port, and a power input. The 7170-0683-00 does NOT include any RF pass through. This Gamber Johnson kit comes with a LIND 120W auto power adapter with bare wire leads. If you need a CF-33 dock compatible with the TOUGHBOOK 33 in tablet mode or are looking to purchase the CF-33 computer itself, please contact a Rugged or Die sales rep for a consultation and a quote!
7170-0683-00 Features
- Compatible only with the Panasonic TOUGHBOOK 33 that comes with the premium keyboard option
- Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
- Floating docking connector with alignment tabs - perfectly align the computer with the docking station for a reliable docking connection
- Lock (keyed alike) for theft deterrence. When locked, neither the tablet nor the laptop can be removed from the docking station
- Internal/protected circuit board protects against dirt and dust
- VESA 75 mm hole pattern
- Rounded edges to enhance personal safety
- Rugged construction for long-term durability

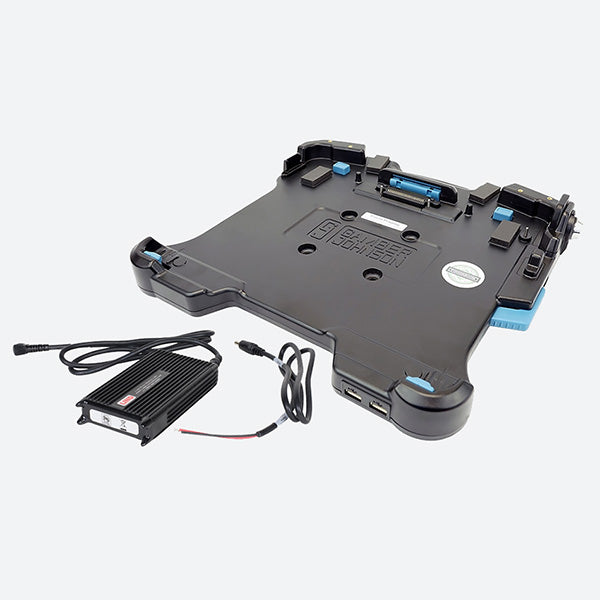

Kit Includes:
- Item No. 7160-0909-00 - Panasonic TOUGHBOOK 33 Laptop Docking Station NO RF
- Item No. 7300-0461 - LIND Auto Power Adapter
7170-0683-00 Specifications
Weight
6.7 lbs / 3.04 kg
Height
3.5 in / 8.89 cm
Width
14.1 in / 35.81 cm
Depth
13.5 in / 34.29 cm
Port Replicators:
Antenna Switch
HDMI
VGA
LAN (2)
USB 3.0 (2)
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin
Power Supply Input
Antenna Pass-through:
No RF
