Gamber-Johnson

Gamber Johnson TOUGHBOOK 33 Laptop Dock Dual RF w/DC Adapter 7170-0683-02

Gamber Johnson Dock 7170-0683-02

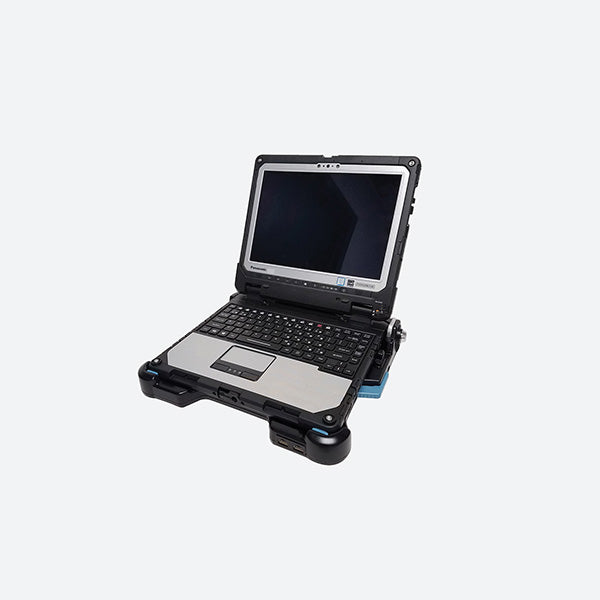

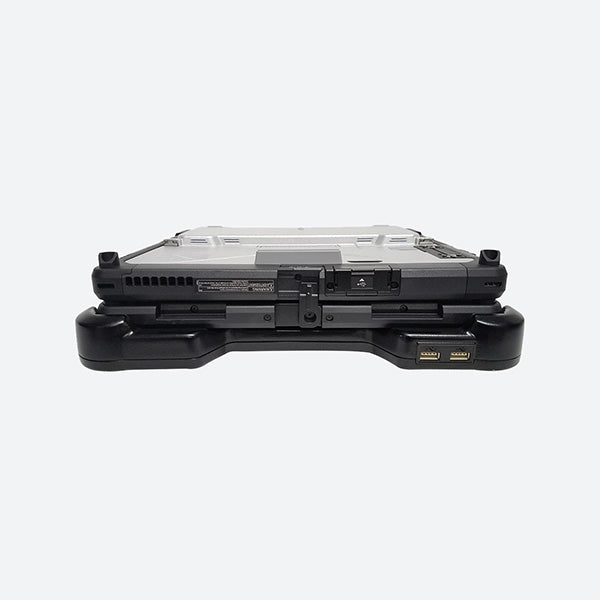

The Gamber Johnson 7170-0683-02 vehicle dock is designed exclusively for the Panasonic TOUGHBOOK CF-33 in laptop mode (with premium keyboard attached.) This CF-33 dock features full port replication which features a number of ports including 2 USB 3.0 ports, 4 USB 2.0 ports, 2 Ethernet ports, a serial 9 pin port, VGA port, HDMI port, and a power input. The 7170-0683-02 also includes Dual RF pass through allowing a user to connect external antennas to boost the CF-33 internal signals such as 4G LTE and or GPS. This Gamber Johnson kit comes with a LIND 120W auto power adapter with bare wire leads. If you need a CF-33 dock compatible with the TOUGHBOOK 33 in tablet mode or are looking to purchase the CF-33 computer itself, please contact a Rugged or Die sales rep for suggestions!

7170-0683-02 Features

  • Compatible only with the Panasonic TOUGHBOOK 33 that comes with the premium keyboard option
  • Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Floating docking connector with alignment tabs - perfectly align the computer with the docking station for a reliable docking connection
  • Lock (keyed alike) for theft deterrence. When locked, neither the tablet nor the laptop can be removed from the docking station
  • Internal/protected circuit board protects against dirt and dust
  • VESA 75 mm hole pattern
  • Rounded edges to enhance personal safety
  • Rugged construction for long-term durability
  • DUAL RF TNC

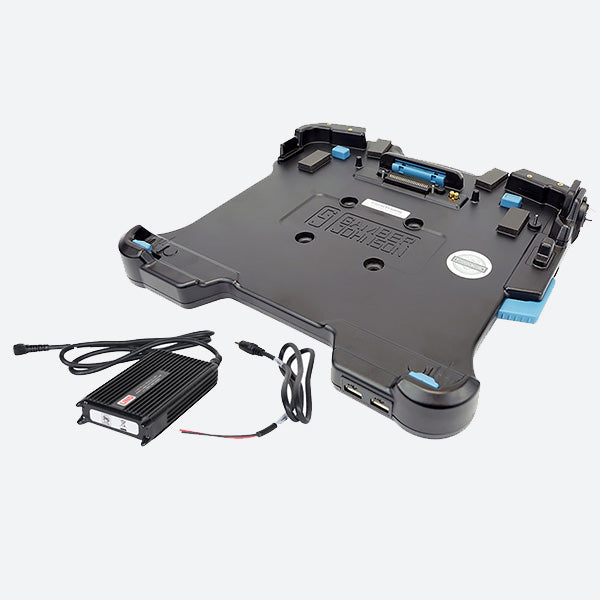

Kit Includes:

  • Panasonic TOUGHBOOK 33 Laptop Docking Station DUAL RF (7160-0909-02)
  • LIND Auto Power Adapter (7300-0461)

7170-0683-02 Specifications

Weight

6.7 lbs / 3.04 kg

Height

3.5 in / 8.89 cm

Width

14.1 in / 35.81 cm

Depth

13.5 in / 34.29 cm

Port Replicators:

Antenna Switch
HDMI
VGA
LAN (2)
USB 3.0 (2)
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin
Power Supply Input

Antenna Pass-through:

Dual RF

$1,343.90 USD
$1,343.90 USD
Shipping calculated at checkout.
