Gamber Johnson TOUGHBOOK 33 Tablet Full Replication Dock w/ LIND 120W Auto Power Adapter 7170-0684-00

Gamber Johnson Dock 7170-0684-00

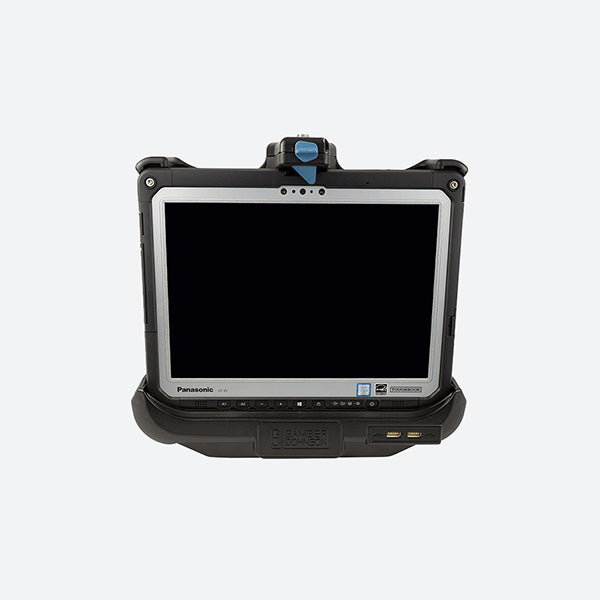

The Gamber Johnson 7170-0684-00 vehicle dock is designed exclusively for the Panasonic TOUGHBOOK CF-33 in tablet mode (no keyboard.) This CF-33 dock features full port replication which features a number of ports including 2 USB 3.0 ports, 4 USB 2.0 ports, 2 Ethernet ports, a serial 9 pin port, VGA port, HDMI port, and a power input. The 7170-0684-00 does NOT include any RF pass through. This Gamber Johnson kit comes with a LIND 120W auto power adapter with bare wire leads. If you need a CF-33 dock with RF pass through or that is compatible with a keyboard, please contact a Rugged or Die sales rep for suggestions!

7170-0684-00 Features

• Compatible with the Panasonic CF-33 Toughpad

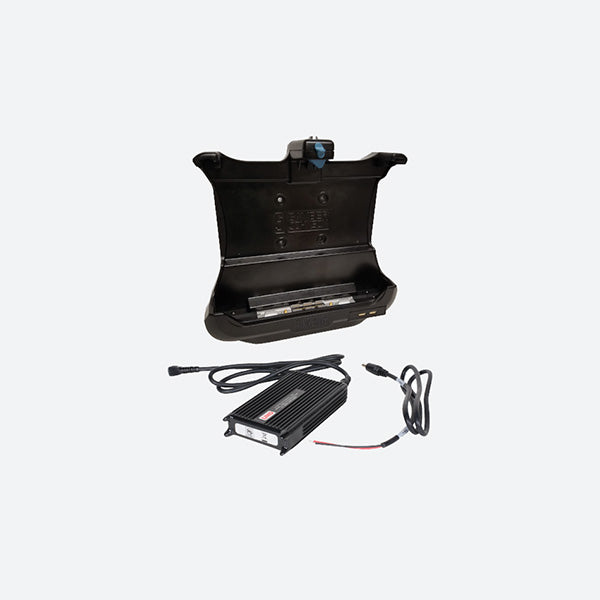

• Kit includes (item no. 7160-0907-00) NO RF docking station + (item no. 14103) LIND 120W auto power adapter
• Easy to use one-handed operation:

                 -Insert bottom of computer into the docking station, push top of computer against latch button until latch engages

                 -To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station

• Can be used in horizontal or vertical position
• Floating docking connector for a reliable connection even in extreme environments
• Accommodates either a tablet's hand strap or an additional battery pack.
• Optional keyed lock for theft deterrence
• Alignment tabs prevent damage to docking connector when docking the computer.
• Vesa 75mm mounting pattern
• Rounded edges to enhance personal safety

7170-0684-00 Specifications

Weight

4.15 lbs. / 1.88 kg

Height

12.5" / 31.75 cm

Width

13.25" / 33.65 cm

Depth

4.5" / 11.43 cm

Port Replicators:

USB 3.0 (2)
USB 2.0 (2)
USB 2.0 on front (2)
Ethernet (2)
Serial 9 pin
VGA
HDMI
External Antenna Select Switch
Power Input

Antenna Pass-through:

No RF
