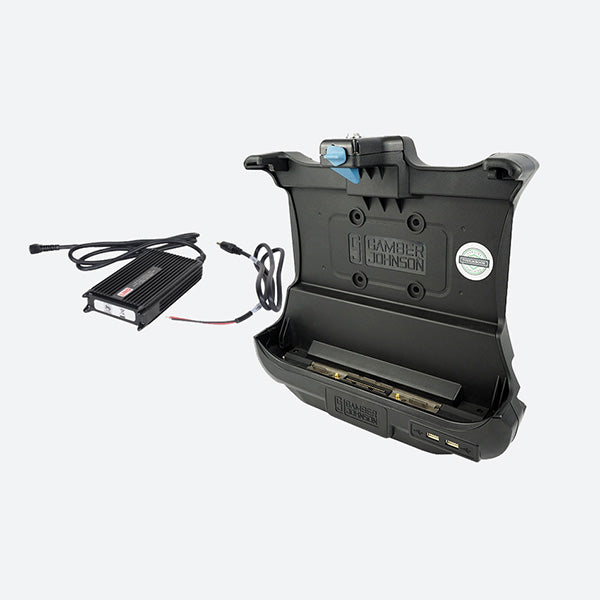

Gamber Johnson TOUGHBOOK 33 Tablet Lite Port Replication Dock w LIND 120V Auto Power Adapter Dual RF 7170-0685-02

Gamber Johnson Dock 7170-0685-02

The Gamber Johnson 7170-0685-02 vehicle dock is designed exclusively for the Panasonic TOUGHBOOK CF-33 in tablet mode (no keyboard.) This CF-33 dock features lite port replication which boasts a number of ports including 2 USB 3.0 ports, 4 USB 2.0 ports, 2 Ethernet ports, a serial 9 pin port and a power input. The 7170-0685-02 also includes Dual RF pass through allowing a user to connect external antennas to boost the CF-33 internal signals such as 4G LTE and or GPS. This Gamber Johnson kit comes with a LIND 120W auto power adapter with bare wire leads.

7170-0685-02 Features

• Compatible with the Panasonic CF-33 Toughpad
• Kit includes (item no. 7160-0907-07) DUAL RF docking station + (item no. 14103) LIND 120V auto power adapter
• Easy to use one-handed operation:
  • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
• Can be used in horizontal or vertical position
• Floating docking connector for a reliable connection even in extreme environments
• Accommodates either a tablet's hand strap or an additional battery pack.
• Optional keyed lock for theft deterrence
• Alignment tabs prevent damage to docking connector when docking the computer.
• Vesa 75mm mounting pattern
• Rounded edges to enhance personal safety
• Dual RF TNC

7170-0685-02 Specifications

Weight

4.15 lbs. / 1.88 kg

Height

12.5 in / 31.75 cm

Width

13.25 in / 33.65 cm

Depth

4.5 in / 11.43 cm

Port Replicators:

USB 3.0 (2)
USB 2.0 (2)
USB 2.0 on front (2)
Ethernet (2)
Serial 9 pin
External Antenna Select Switch
Power Input

Antenna Pass-through:

Dual RF
