Gamber Johnson Getac ZX70 Powered Charging Cradle w 12-32V Material Handling Power Adapter 7170-0686-11

Gamber Johnson Cradle 7170-0686-11

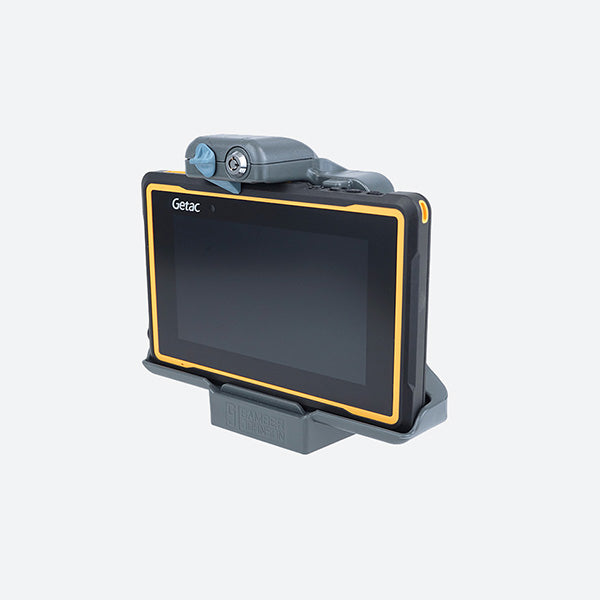

This Gamber Johnson powered charging cradle for the Getac Getac ZX70 tablet does not provide any port replication but does include power pass through. Power pass through means that the power supply will plug into the cradle and the cradle will charge the ZX10 while docked. The 7170-0686-11 kit comes with a 12-32V isolated power adapter designed for material handling purposes. If you need help assembling a forklift or other material handling computer mounting solution, Rugged or Die sales reps are experts in the rugged technology industry and eager to help answer your questions!

7170-0686-11 Features

• Designed for the Getac ZX70 tablet computer and backwards compatible with the Z710 tablet

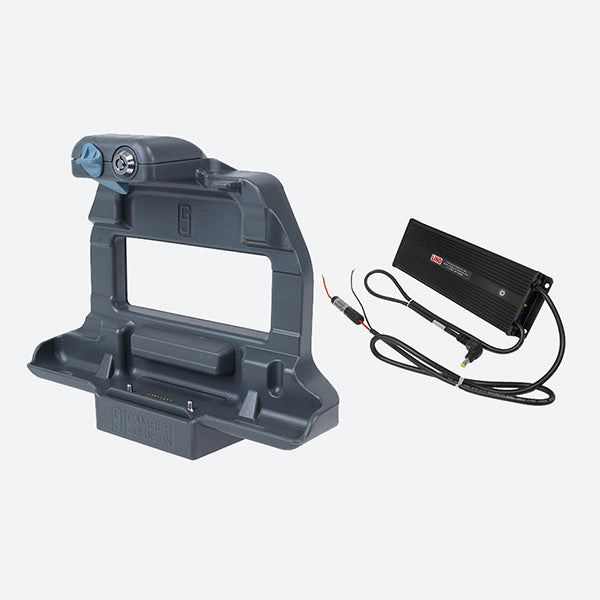

• Kit includes Getac ZX70 charging cradle (7160-1135-01) and LIND isolated power adapter (16411)
• Easy to use one-handed operation:

               -Insert bottom of computer into the cradle, push top of computer against latch button until latch engages

               -To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle

• POGO connector for reliable charging
• Power cable strain relief
• Cradle design accommodates rotating hand strap (sold separately)
• Access to all tablet control buttons and USB port while tablet is cradled
• Optional lock (keyed alike) for theft deterrence
• Rounded edges to enhance personal safety
• Gamber-Johnson rugged construction and reliability
• Extremely light-weight composite/aluminum design
• VESA 75 mounting pattern

7170-0686-11 Specifications

Weight

0.90 lbs / .41 kg

Height

7.62" / 19.35 cm

Width

8.87" / 22.52 cm

Depth

3.12" / 7.92 cm

Power Supply:

Testing Specifications:

Port Replicators:

Antenna Pass-through:
