Gamber Johnson Getac K120 Laptop Dock w Tri RF, 120W Auto Power Adapter 7170-0693-03

Gamber Johnson Dock 7170-0693-03

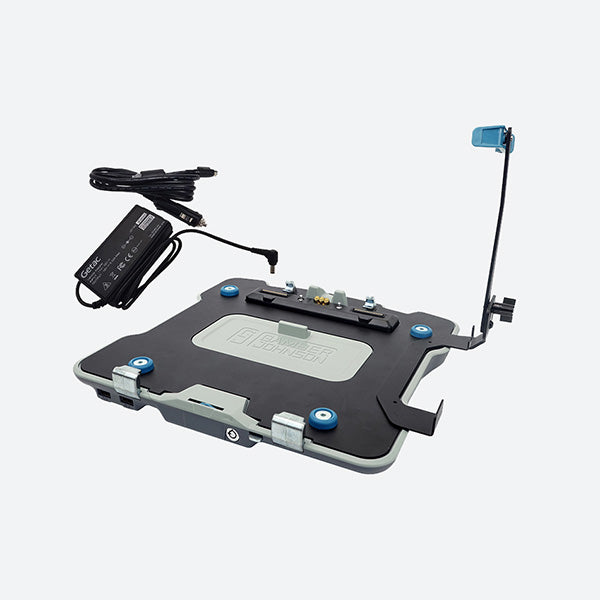

The Gamber Johnson 7170-0694-03 laptop vehicle dock is designed for the Getac K120 with keyboard. This docking station includes a 120W auto power adapter with cigarette lighter adapter. Providing power pass through and port replication, this version of the K120 dock also includes Tri RF pass through enabling the connection of external antennas to boost the K120 signals such as GPS or 4G LTE. If you need any assistance, please reach out to Rugged or Die at our contact page for a free consultation on the correct mounting equipment that you should utilize to safely mount this dock in your vehicle.

7170-0693-03 Features

• Compatible with the Getac K120 computer with keyboard
• Kit includes TRI RF docking station (7160-1082-03) + Getac 120W auto power adapter (7300-0471)
• Docking Station design accommodates MSR and rotating hand strap (sold separately)

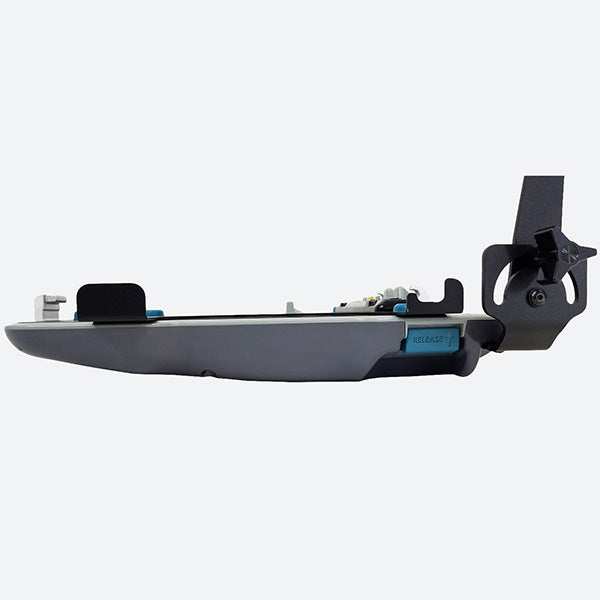

• Rear corner release button, easily remove the computer with the push of a button
• Access to all computer control buttons and ports while the computer is docked

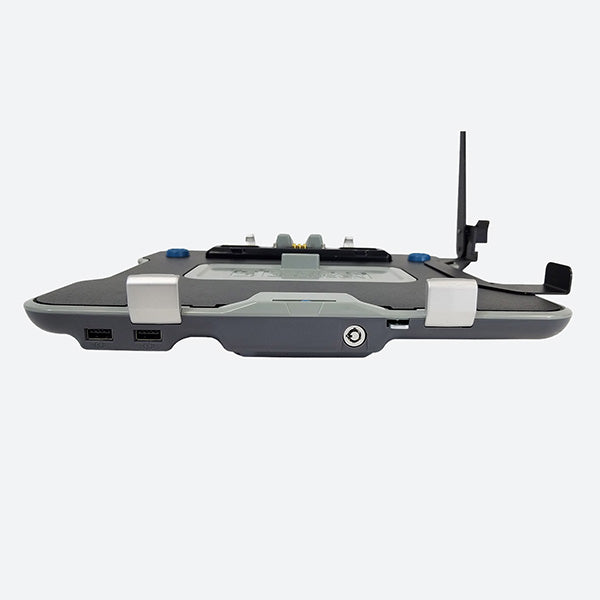

• Forward-facing I/O ports, integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• Optional lock (keyed alike) for theft deterrence. When the computer is closed and screen is latched, the lock will secure the keyboard and computer
• Rounded edges to enhance personal safety
• Gamber-Johnson rugged construction and reliability
• VESA 75mm mounting pattern
• TRI-RF SMA

7170-0693-03 Specifications

Weight

4.60 lbs / 2.08 kg

Height

2.5 in / 6.5 cm

Width

11.6 in / 29.5 cm

Depth

12.1 in / 30.7 cm

Port Replicators:

Ethernet (2) - RJ45
USB 2.0 (2) - 4 pin forward-facing, fast-charging (1500 mA)
USB 2.0 (1) - 4 pin rear-facing (500 mA)
USB 3.0 (1) - 9 pin fast-charging (1500 mA)
USB 3.0 (2) - 9 pin (900 mA)
VGA (1) - D-sub 9 pin
HDMI (1) - 19 pin
RS232 Serial (1)
Power Input - 19 Vdc

Antenna Pass-through:

Tri RF
