Gamber Johnson Getac K120 Tablet Dock w Auto Power Adapter 7170-0694-00

Gamber Johnson Dock 7170-0694-00

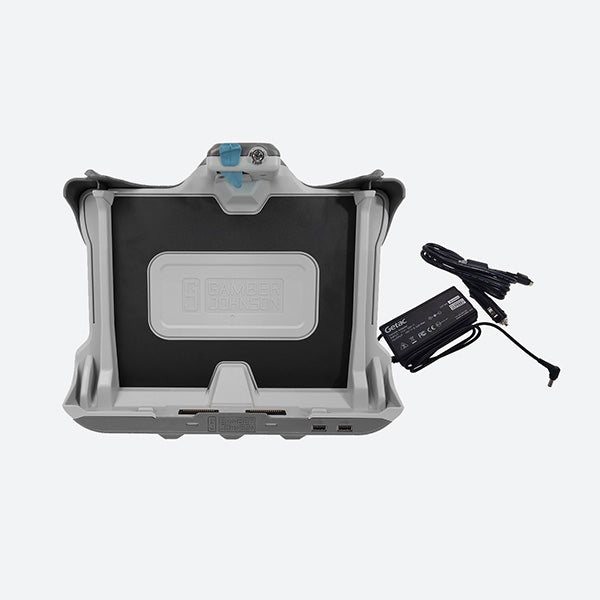

The Gamber Johnson 7170-0694-00 tablet vehicle dock is designed for the Getac K120. This docking station includes a 120W auto power adapter with cigarette lighter adapter. Providing power pass through and port replication, this version of the K120 dock does not include any RF pass through. If you are still undecided, reach out to Rugged or Die at our contact page for a free consultation on the correct mounting equipment that you should utilize to safely mount this dock in your vehicle.

7170-0694-00 Features

• Kit includes NO RF docking station (7160-1084-00) + Getac 120W auto power adapter (7300-0471)
• station design accommodates tablet's rotating hand strap (sold separately)
• Easy to use one-handed operation:

                 -Insert bottom of computer into the docking station, push top of computer against latch button until latch engages

                 -To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station

• Access to all tablet control buttons and ports while tablet is docked
• Optional keyed lock for theft deterrence
• Upward-facing I/O ports, integrated cable strain relief and cable management system

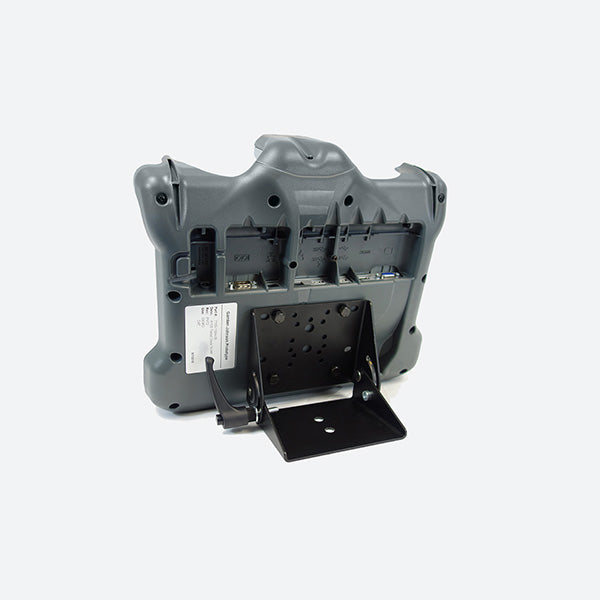

• VESA 75mm mounting pattern
• Rounded edges to enhance personal safety

7170-0694-00 Specifications

Weight

3.2 lbs / 1.45 kg

Height

11.6" / 29.5 cm

Width

13.1" / 33.5 cm

Depth

4.3" / 11.1 cm

Port Replicators:

Ethernet (2) - RJ45
USB 2.0 (2) - 4 pin forward-facing, fast-charging (1500 mA)
USB 2.0 (1) - 4 pin rear-facing (500 mA)
USB 3.0 (1) - 9 pin fast-charging (1500 mA)
USB 3.0 (2) - 9 pin (900 mA)
VGA (1) - D-sub 9 pin
HDMI (1) - 19 pin
RS232 Serial (1)
Power Input - 19 Vdc

Antenna Pass-through:

No RF
