Gamber Johnson Getac A140 Tablet Dock w Tri RF and Auto Power Adapter 7170-0695-03

Gamber Johnson Dock 7170-0695-03

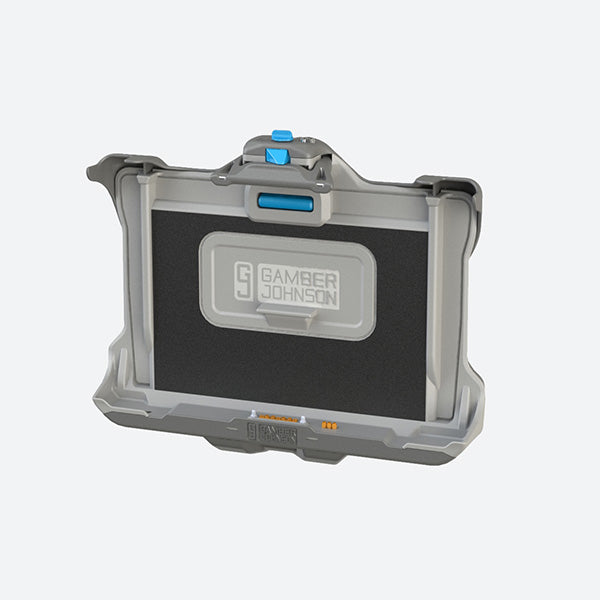

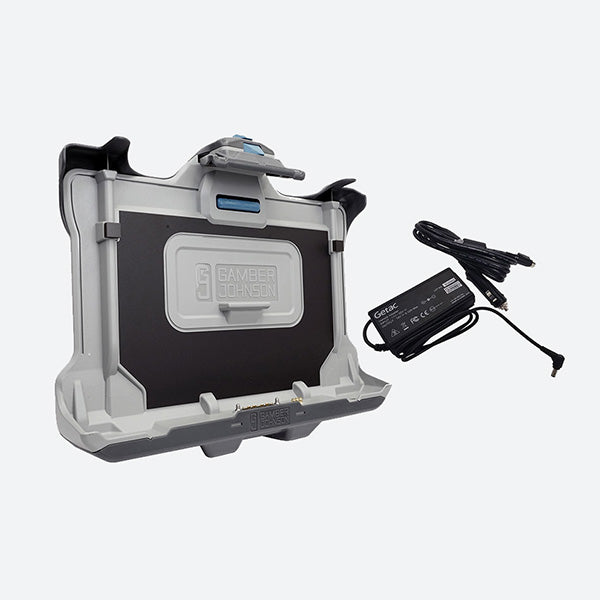

Getac A140 Tablet Docking Station with 120W Auto Power Adapter; TRI RF. Gamber Johnson Getac A140 Tablet docking station kit includes TRI RF docking station and Getac 120W Auto Power Adapter.

7170-0695-03 Features

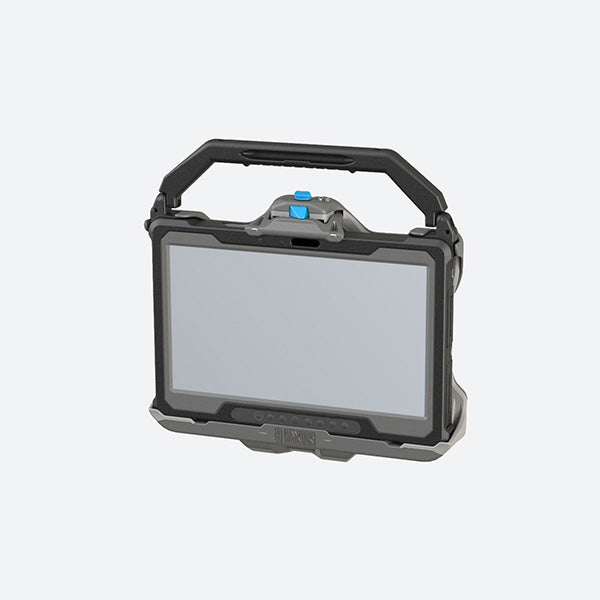

  • Designed for the Getac A140 tablet computer
  • Kit includes (item no. 7160-1246-03) TRI RF docking station + (item no. 17057) Getac 120W auto power adapter
  • Docking station design accommodates tablet's built-in rubber hand strap, stylus, and optional multi-function hard handle (sold separately)
  • Access to all tablet control buttons, ports, smart card reader and front camera while tablet is docked
  • Easy to use one-handed operation: Insert bottom of computer into the dock, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the dock
  • Access to all tablet control buttons, ports, smart card reader and front camera while tablet is docked
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • Optional keyed lock for theft deterrence
  • Rounded edges to enhance personal safety Gamber-Johnson rugged construction and reliability
  • Composite/aluminum design for reduced weight and durability VESA 75mm mounting pattern
  • TRI-RF SMA

Kit Includes:

  • 7160-1246-03
  • 17057

7170-0695-03 Specifications

Weight

Dock: 3.85 lbs / 1.74 kg Power Adapter: 0.70 lbs / 0.31 kg

Height

12.59 in / 0.31 kg

Width

15.18 in / 38.5 cm

Depth

3.31 in / 8.4 cm

Port Replicators:

Ethernet (1) RJ45
USB 2.0 (3) 4- pin
USB 3.0 (1) 9 pin
VGA (1) D-sub 9 pin HDMI (1) 19 pin
Serial (1) D-sub 9 pin
Headphones/speakers
Stereo phone jack
Microphone Mono phone jack
Power Input 19 Vdc
RF Pass Through SMA


Antenna Pass-through:

Tri RF

$899.37 USD
$899.37 USD
Shipping calculated at checkout.
