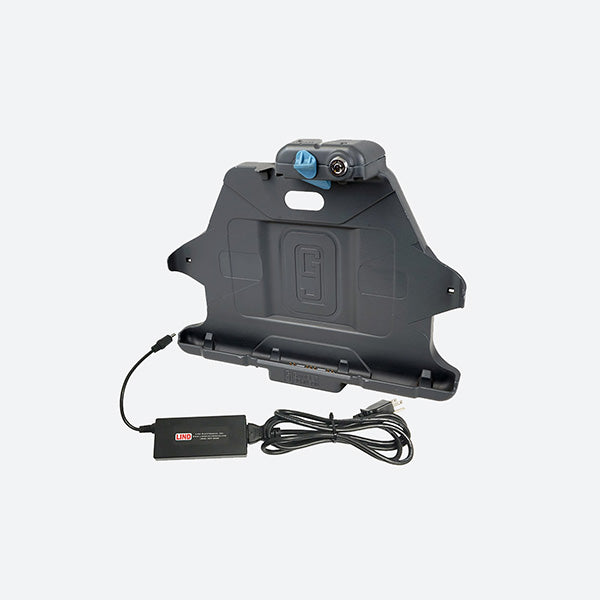

Gamber Johnson Samsung Galaxy Dock w/ AC Power Adapter 7170-0697-31

Gamber Johnson Dock 7170-0697-31

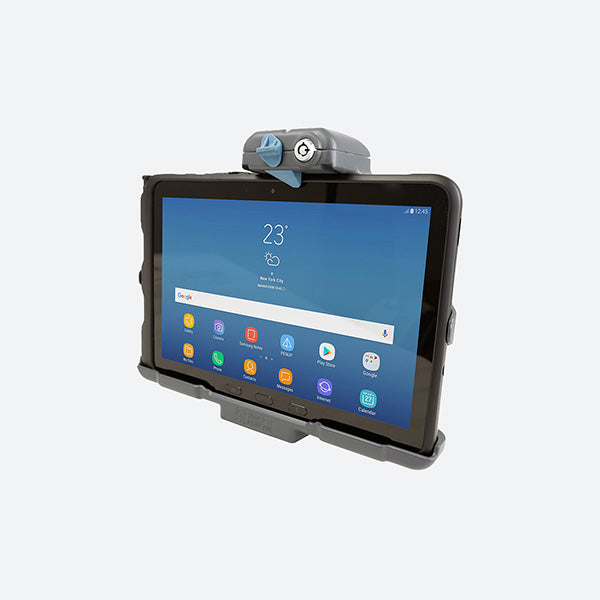

Samsung Galaxy Tab Active Pro/Tab Active4 Pro Docking Station with AC Power Adapter. Gamber Johnson docking station features dual powered USBs. Each USB port will deliver 1.5A of power with an integrated cable restraint system. The docking station is compact, has a keyed lock, and docking/release is a simple, one-handed operation. This dock features an MP205 power cable connector to attach to the AC power adapter included in this kit.

7170-0697-31 Features

• Designed for the Samsung Galaxy Tab Active Pro/Tab Active4 Pro 10-Inch rugged tablet with rugged case
• Kit includes Samsung Tab Active Pro/Tab Active4 Pro docking station (7160-1418-30) and AC power adapter (17794)
• Dual powered USB ports; 1.5A for each port for connecting peripheral devices
• 10-40V power input range to support a wide range of mobile applications
• Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
• Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
• Simple, one-handed docking and release operation:
  • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
  • Push latch button up with your thumb then remove the tablet from the docking station.
• POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
• Barrel Key lock for theft deterrence
• VESA 75mm mounting pattern; compatible with Zirkona mounting products.
• 40" power cable with MP205 in-line jack to quickly connect to a compatible Power supply
• Can be mounted on a flat vertical surface.
• Composite design for reduced overall weight.

7170-0697-31 Specifications

Weight

Docking Station 1.3 lbs. / .58 kg Power Adapter 1.0 lbs. / .49 kg

Height

8.5 in / 21.5 cm

Width

10.5 in / 26.6 cm

Depth

2.5 in / 6.35 cm

Port Replicators: (2) USB 2.0 - each with 1.5A power

Compatibility: Samsung Galaxy Tab Active Pro/Tab Active4 Pro
