Gamber Johnson Samsung Galaxy Tab Active Pro/Active4 Pro Dock w/20-60V Power Adapter 7170-0697-43

Gamber Johnson Dock 7170-0697-43

Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station w/20-60V Isolated Power Adapter (2.5mm DC Power Jack.) Samsung Tab Active Pro/Active4 Pro tablet with Gamber-Johnson’s vehicle docking station, with dual powered USBs for added productivity. Each powered USB port provides 1.5A, strong enough to power a long-range scanner and a printer or other peripherals. Easily connect this docking station to an external power adapter using the 2.5mm DC Power Jack. The adapter plate (7160-1942) allows easy one-person field installation when adding peripherals to your material handling solution. Designed for forklift mounting applications.

7170-0697-43 Features

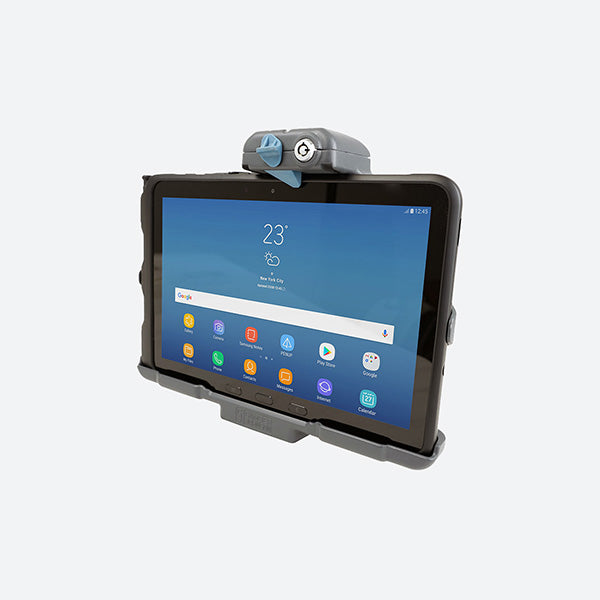

• Designed for the Samsung Galaxy Tab Active Pro/ Active4 Pro 10-Inch rugged tablet with rugged case

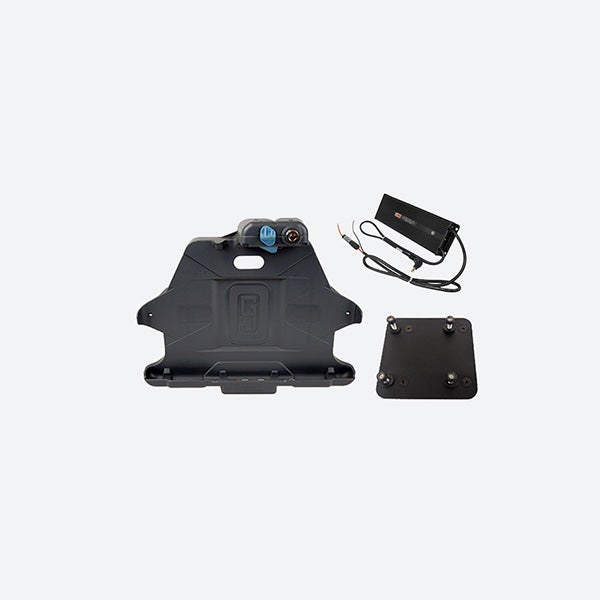

• Kit includes Samsung Tab Active Pro/Active4 Pro docking station (7160-1418-50) and 20-60V isolated power adapter (7300-0467)
• 75MM HOLES TO STUDS ADAPTER PLATE  (7160-1942) included for easy one person installation when adding peripherals to your material handling solution
• Dual powered USB ports; 1.5A for each port for connecting peripheral devices
• 10-40V power input range to support a wide range of mobile applications
• Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
• Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
• Simple, one-handed docking and release operation
• POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked
• Barrel Key lock for theft deterrence
• VESA 75mm mounting pattern; compatible with Zirkona mounting products.
• 2.5 MM in-line jack to quickly connect to a compatible Power supply
• Can be mounted on a flat vertical surface.
• Composite design for reduced overall weight.

7170-0697-43 Specifications

Weight

1.55 lbs. / .70 kg

Height

8.5 in / 21.5 cm

Width

10.5 in / 26.6 cm

Depth

2.5 in / 6.35 cm

Port Replicators:

(2) USB 2.0 - each with 1.5A power

Compatibility: Samsung Galaxy 10-inch Tab Active Pro/Active4 Pro
