Gamber Johnson Samsung Galaxy Tab Active Pro/Active4 Pro Dock w/ Hand strap Rugged Lite Keyboard and Quick Release Keyboard Cradle 7170-0698-00

Gamber Johnson Dock 7170-0698-00

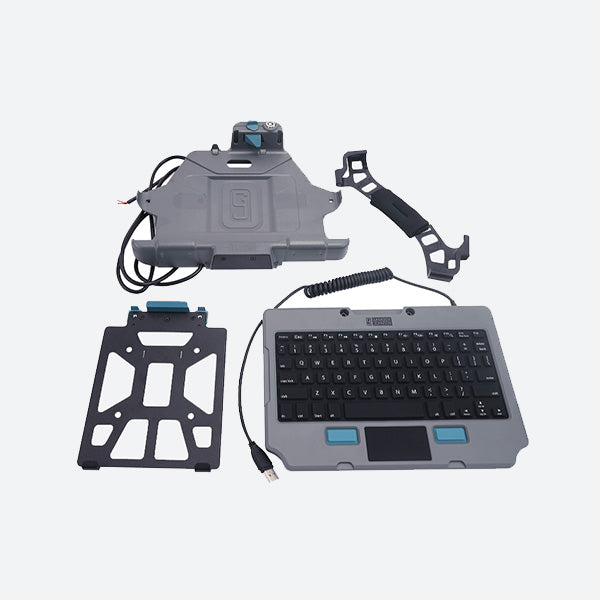

Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station with Hand strap; Rugged Lite Keyboard; and Quick Release Keyboard Cradle. This kit combines the Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station with the Hand strap and the Rugged Lite Keyboard with Quick Release Keyboard Cradle.

7170-0698-00 Features

Docking Station

• Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10-Inch rugged tablet with rugged case
• Dual powered USB ports; 1.5A for each port for connecting peripheral devices
• 10-40V power input range to support a wide range of mobile applications
• Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
• Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
• Simple, one-handed docking and release operation:
  • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
  • Push latch button up with your thumb then remove the tablet from the docking station.
• POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
• Barrel Key lock for theft deterrence
• VESA 75mm mounting pattern; compatible with Zirkona mounting products.
• Approximately 66” (167.6 cm) power cable with bare wire end
• Can be mounted on a flat vertical surface.
• Composite design for reduced overall weight.

Hand Strap

• Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10- Inch rugged tablet with rugged case
• Compatible with Gamber-Johnson's Tab Active Pro/Active4 Pro docking station
• Easily dock the tablet in the docking station with the hand strap attached
• Hand strap easily slips over the diagonal corners of the tablet
• Cushioned pad for comfort

Rugged Lite Keyboard

• Integrated center Touchpad with right and left mouse button
• 76-key keyboard with 12 function keys for custom operation
• Low-profile ergonomic design for ease of use in a mobile environment
• Emergency Key - a configurable key that can be used to send for emergency help or assistance
• Silicone rubber keys with white lettering and a rugged ABS poly-carbonate case
• Input cable: USB Type A male connector (1.5 m/59.0 inch cable)
• Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms
• USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA)
• Rubber feet to prevent slippage
• Keyboard is compatible with Gamber-Johnson Quick Release Keyboard Cradle (7160-1470-00)
• Available in US English (7160-1449-00), UK (7160-1449-01), German (7160-1449-02), French (7160-1449-03), and Spanish (7160-1449-04). Contact Gamber-Johnson for other language options.

Quick Release Keyboard Cradle

• Black powder coat finish
• VESA 75 mounting pattern, attach to most Gamber-Johnson motion attachments
• Easily insert or release the keyboard:
  • Insert bottom of keyboard into cradle, match indents in keyboard with hooks on cradle, then push top of keyboard into cradle and engage latch
  • To remove, push latch to disengage and pull keyboard out of cradle
• Compatible with Gamber-Johnson Rugged Lite Keyboard (7160-1449-00)

7170-0698-00 Specifications

Weight

Docking Station: 1.3 lbs / 0.58 kg Keyboard: 1 lb / 0.45kg

Height

Docking Station: 8.5 in / 21.5 cm Keyboard: 10.31 in / 26.18 cm

Width

Docking Station: 10.5 in / 26.6 cm Keyboard: 0.56 in / 1.42 cm

Depth

Docking Station: 2.5 in / 6.35 cm Keyboard: 7.12 in / 18.08 cm

Port Replicators:

Docking Station: (2) USB 2.0 - each with 1.5A power
Keyboard: USB 2.0 (500mA)

Compatible Models:

Tab Active Pro
Tab Active4 Pro
