Gamber Johnson DeX Heads Up Vehicle Kit Without Keyboard 7170-0757-01
Gamber Johnson Display 7170-0757-01
Gamber Johnson DeX heads up vehicle kit without keyboard. DeX vehicle kit includes a 13.3″ touch-screen display, rugged USB hub, smartphone dock mounting bracket and articulating mount. Gamber-Johnson’s Heads Up DeX solution positions the smartphone in the driver’s view – use the phone as a second screen or a touchpad device.
7170-0757-01 Features
- Add a compatible Heads Up Smartphone Docking Station (7160-1394-00 Note9), (7160-1394-01 S9+), (7160-1394-02 S9), (7160-1394-03 S10+), (7160-1394-04 S10), (7160-1394-05 Note10), (7160-1394-06 Note10+), (7160-1394-07 S10e) to complete your DeX vehicle solution. Must order Separately.
- Smartphone requires a Rebel phone case to be compatible with the smartphone docking station; (18551-00 Note9), (18551-01 S9+), (18551-02 S9), (18551-03 S10+), (18551-04 S10), (18551-05 Note10), (18551-06 Note10+) and (18551-07 S10e). Must order Separately.

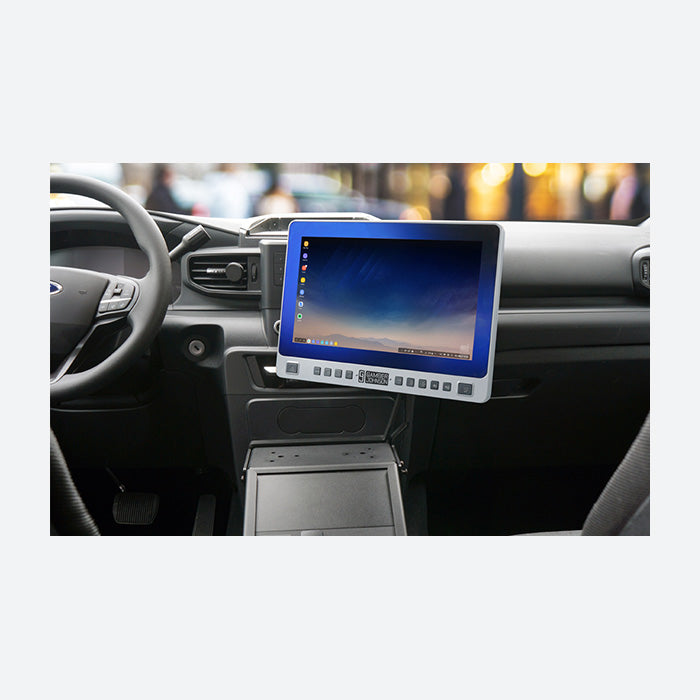

- This DeX Heads Up vehicle solution positions the smartphone dock next to the touchscreen where you can use your phone as a secondary screen or a touchpad device
- Mount the 13.3" touch screen to a Gamber-Johnson close-to-dash mount (7160-1346 or 7160-0822) or tablet display mount (7160-0529 or 7160-0494) for optimal viewing
- 13.3" 5-point capacitive touchscreen, high resolution 1920 x 1080, Brightness: 50-1000 nits (adjustable)
- The Rugged USB Hub provides port replication to connect all peripherals; conceal under the instrument panel, or console box or mounted to the heads up mounting bracket
- Gamber-Johnson offers several DeX solutions including:
- The DeX Armrest vehicle solution that positions the smartphone dock in the vehicle armrest next to the driver where it is out of the way but still accessible
- The DeX Desktop solution that enable the mobile worker to transition from vehicle to desktop seamlessly
- Contact Gamber-Johnson for more information about their DeX solution kits and DeX components and accessories

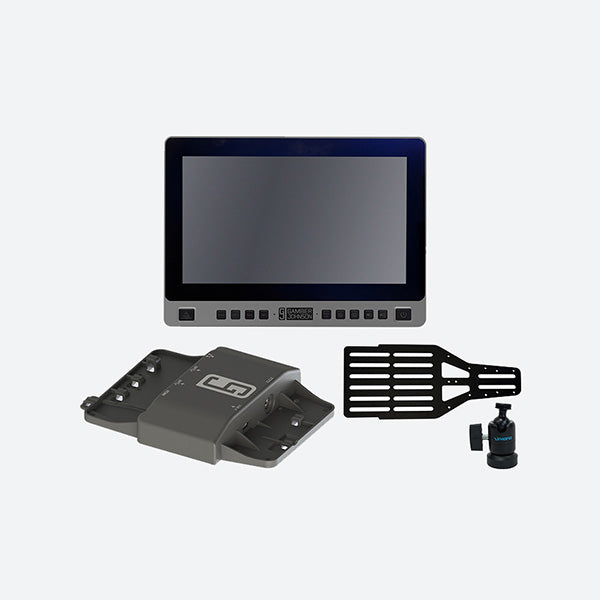

Kit Includes:
- 13.3" Touchscreen Display - Includes power cable, HDMI cable, USB Type B cable (7160-1451-00)
- Rugged USB Hub - Includes USB-C cable (7160-1393-00)
- Smartphone Dock Heads Up Articulating Mount (7110-1237)
- Smartphone Dock Heads Up Mount Bracket (18540)
- Installation Guides
- Mounting Hardware
7170-0757-01 Specifications
-
Testing Specifications:
- MIL-STD 810G Shock and Vibration Specifications
- MIL-STD 810G Temperature and Humidity (operational and storage)
- SAE J1455 30mph Crash Testing
-
Port Replicators:
13.3" Touchscreen Display (7160-1451-00)
- (1) HDMI
- (1) VGA
- (1) USB type C (2A @ 5V) fast charging
- (1) USB type B (for Touch Control)
- (2) USB 3.0 (fast charging 1.5A)
- (1) Aux. out 3.5 mm
- (1) DC input (Barrel Jack)
Rugged USB Hub (7160-1393-00)
- (4) USB 3.0 (2) fast charging 1.5A
- (1) Ethernet RJ45 (Gigabit)
- (1) HDMI
- (1) USB-C (5V@2A) fast charging
- (1) Power port
Dimensions
13.3" Touchscreen Display (7160-1451-00)
- Weight: 6.65 lbs / 3.02 kg
- Height: 9.94 in / 25.25 cm
- Width: 13.75 in / 34.93 cm
- Depth: 1.57 in / 3.99 cm
Rugged USB Hub (7160-1393-00)
- Weight: 0.25 lbs / 0.11 kg
- Height: 2.05 in / 5.21 cm
- Width: 4.36 in / 11.07 cm
- Depth: 5.62 in / 14.27 cm
Smart Phone Heads Up Mounting Bracket (18540)
- Weight: 0.74 lbs / 0.34 kg
- Height: 0.5 in / 1.27 cm
- Width: 12 in / 30.48 cm
- Depth: 5.75 in / 14.61 cm
Heads Up Articulating Mount (7110-1237)
- Weight: 0.2 lbs / 0.09 kg
- Height: 2.75 in / 6.99 cm
- Width: 2.12 in / 5.38 cm
- Depth: 2.12 in / 5.38 cm
