Gamber Johnson Samsung Galaxy Tab Active2/3/5 Dual USB Dock w/ 70-110V Power Adapter 7170-0765-34

Gamber Johnson Dock 7170-0765-34

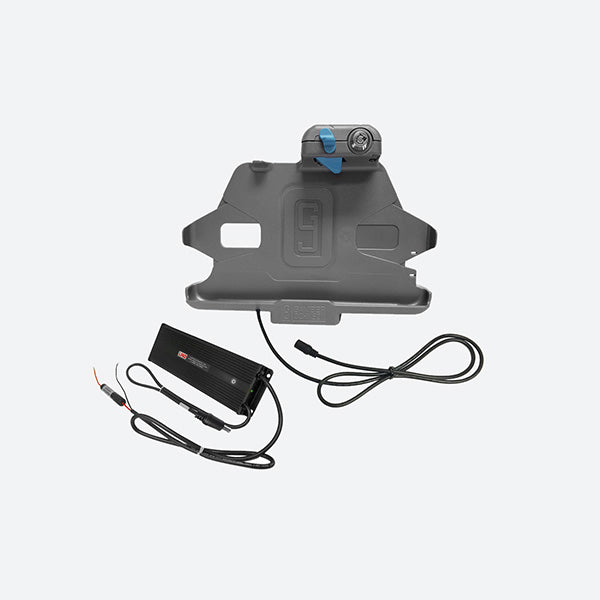

Samsung Galaxy Tab Active2/3/5 Dual USB Docking Station with 70-110V Isolated Power Adapter. This dual USB Docking Station is compatible with the Samsung Galaxy Tab Active2/3/5. Each USB port will deliver 1.5A of power and has an integrated cable restraint system. The docking station is compact, lockable, and can be used with one hand. This dock features an MP205 power cable connector to attach to the power adapter included in this kit.

7170-0765-34 Features

  • Designed for the Samsung Galaxy Tab Active2, 3, and 5 rugged tablet with rugged case
  • Kit includes Samsung Tab Active2 and Tab Active 3 Dual USB docking station (7160-1368-30) and 20-60v isolated power adapter (7300-0473)
  • 40" power cable with MP205 in-line jack to quickly connect to a compatible power supply
  • Dual powered USB ports; 1.5A for each port for connecting peripheral devices
  • POGO pin connector provides power to charge the Samsung tablet while docked
  • Access to all control buttons, camera, ports and stylus while the tablet is safely docked
  • Simple, one-handed docking operation:
    • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages
    • Push latch button up with your thumb then remove the tablet from the docking station
  • Push-button lock with key for theft deterrence
  • VESA 75mm and AMPS mounting patterns; compatible with Zirkona mounting products
  • Can be mounted on a flat vertical surface
  • Composite design for reduced overall weight
  • 10-40V power input range to support a wide range of mobile applications

7170-0765-34 Specifications

Weight

Docking Station: 1.1 lbs / 0.5 kg Power Adapter: 1.0 lbs / 0.49 kg

Height

6.7 in / 17.1 cm

Width

9.3 in / 23.6 cm

Depth

1.5 in / 3.8 cm

Compatibility:

Tab Active2
Tab Active3
Tab Active5

Port Replicators:

Tab Active2 - (2) USB 1.1 (1.5A each)
Tab Active3 - (2) USB 2.0 (1.5A each)

Antenna Pass-through: No RF

$563.88 USD
$563.88 USD
Shipping calculated at checkout.
